5935-00-752-3076
Electrical Plug Connector
5935007523076 007523076 MIL-C-12520/6 UW1220MB17 MILC12520 UW1220MB13
An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Plug Connector
January 2023
8
Marketplace 5935-00-752-3076
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-752-3076 5+ Documents (More...)
UW1220MB17 CONNECTOR,PLUG,ELECTRICAL RQST NS Request Quotation UW1220MB13 CONNECTOR,PLUG,ELECTRICAL 132
UW1220MB17 CONNECTOR,PLUG,ELECTRICAL 1 EA NS Request Quotation Updated Every Day 5935-00-752-3076 RQST
Electrical Plug Connector 5935007523076 Upgrade your Account Upgrade 5935-00-752-3076Electrical
Plug Connector5935007523076 007523076 MIL-C-12520/6 UW1220MB17 MILC12520 UW1220MB13 An electrical fitting
Day 5935-00-043-3568 RQST NE Related Documents https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-752-3076
Electrical Plug Connector 5935007523076 Upgrade your Account Upgrade 5935-00-752-3076Electrical
UW1220MB17 CONNECTOR,PLUG,ELECTRICAL 1 EA NS Request Quotation Updated Every Day 5935-00-502-6276 RQST
Electrical Plug Connector 5935007523076 your Account Upgrade 5935-00-899-3948Electrical https//
168073201 372-1190-00 372-1190-000 10-1167-330-00 10-1167-33-00-0 8500041-0023-001 5800041-0023-001 MILC12520
Electrical Plug Connector 5935007523076 UW1220MB17 MILC12520 UW1220MB13 An electrical fitting with
Restrictions 5935-00-752-3076
5935-00-752-3076 is a Electrical Plug Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-752-3076
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-752-3076
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
Approved Sources 5935-00-752-3076
- Part Number
- Manufacturer
- Status
- UW1220MB17
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-C-12520/6
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MILC12520
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- UW1220MB13
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-752-3076
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Cable Entrance Diameter [AFQJ]
- 0.406 Inches Maximum
- Connector Locking Method [AFRV]
- Screw
- Connector Cable Strain Relief Method [AFRW]
- Cable Clamp
- Contact Material [CQTZ]
- Copper Alloy Single Mating End Single Contact Grouping
- Contact Maximum Ac Voltage Rating In Volts [AFRD]
- 900.0 Single Mating End Single Contact Grouping
- Contact Maximum Current Rating In Amps [AFRC]
- 22.0 Single Mating End Single Contact Grouping
- Contact Position Arrangement Style [AFQX]
- 9 Single Mating End
- Contact Removability [AFQZ]
- Nonremovable Single Mating End Single Contact Grouping
- Contact Maximum Dc Voltage Rating In Volts [AFRE]
- 1250.0 Single Mating End Single Contact Grouping
- Contact Surface Treatment [CQYH]
- Gold Single Mating End Single Contact Grouping And Silver Single Mating End Single Contact Grouping
- Diameter [ABMZ]
- 1.438 Inches Maximum
- Environmental Protection [ADZC]
- Watertight

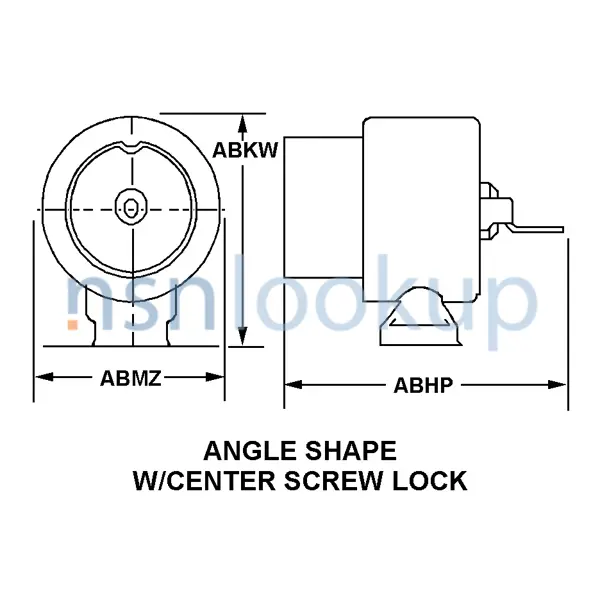

- Body Style [AAQL]
- Angle Shape W/Center Screw Lock
- Mating End Quantity [AFQW]
- 1
- Nominal Thread Size [CQJX]
- 0.250 Inches
- Included Contact Quantity [CXCG]
- 9 Single Mating End Single Contact Grouping
- Included Contact Type [CXCL]
- Round Pin Single Mating End Single Contact Grouping
- Insert Position In Deg [AFRP]
- 0.0
- Polarization Method [AFRN]
- Keyway Or Multiple Keyway
- Precious Material And Location [PMLC]
- Contact Surfaces Gold And Contact Surfaces Silver
- Precious Material And Weight [PMWT]
- 0.009 Gold Grains, Troy And 0.009 Silver Grains, Troy
- Precious Material [PRMT]
- Gold And Silver
- Shell Type [AFRT]
- Solid
- Overall Height [ABKW]
- 2.719 Inches Maximum
- Overall Length [ABHP]
- 2.250 Inches Maximum
- Specification/Standard Data [ZZZK]
- 81349-Mil-C-12520 Government Specification
- Terminal Location [CQTM]
- Back Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Solder Well Single Mating End Single Contact Grouping
- Test Data Document [TEST]
- 81349-Mil-C-12520 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Series Designator [THSD]
- Unc
- Thread Quantity Per Inch [CMLP]
- 20
- Threaded Device Type [AFQR]
- Coupling Facility
Similar Supply Items to 5935-00-752-3076
Freight Information 5935-00-752-3076
5935-00-752-3076 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-752-3076 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-752-3076 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-752-3076 is not classified as a special type of cargo when transported by water. 5935-00-752-3076 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-752-3076
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
