5935-00-688-3404
Plug-In Electronic Components Socket
5935006883404 006883404 44P22919 38689-1 5021-321 136-0061-00 136-061 121-51-11-049
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
24
Marketplace 5935-00-688-3404
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-688-3404 2+ Documents (More...)
(Identification) 1/3 NSN 5935-00-688-3404 (Identification) 2/3 NSN 5935-00-688-3404 (Identification
RQST NE Updated Every Day 5935-00-688-3404 RQST Updated Every Day 5935-00-688-3404 RQST NE Related
Components Socket Account Upgrade 5935-00-688-3404Plug-In Electronic Components Socket5935006883404 006883404
44P22919 38689 Request a Quotation from participating marketplace vendors Request Subscribe to View
Restrictions 5935-00-688-3404
5935-00-688-3404 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5935-00-688-3404
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-688-3404
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-00-688-3404
- Part Number
- Manufacturer
- Status
- 44P22919
- Manufacturer
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Primary Buy
- Primary Buy
- 38689-1
- 92755 - Northrop Grumman Systems Corp (Active)
- Secondary Buy
- Secondary Buy
- 5021-321
- 82577 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- 136-0061-00
- 80009 - Tektronix, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 136-061
- 80009 - Tektronix, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 121-51-11-049
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-688-3404
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Contact Position Arrangement Style [CRPY]
- Circular
- Accommodated Contact Quantity [AFRL]
- 9
- Contact Material [AFRG]
- Phosphor Bronze
- Contact Surface Treatment [AFRH]
- Silver
- Body Style [AAQL]
- Pcb Mount
- Terminal Length [ABJT]
- 0.219 Inches Nominal
- Overall Height [ABKW]
- 0.750 Inches Nominal
- Overall Diameter [ADAV]
- 0.844 Inches Nominal
- Projection Length Above Mounting Surface [AKXD]
- 0.344 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 9 Tab, Solder Lug
- Mounting Type For Which Designed [BCNX]
- Printed Circuit
- Mounting Method [AXGY]
- Terminal

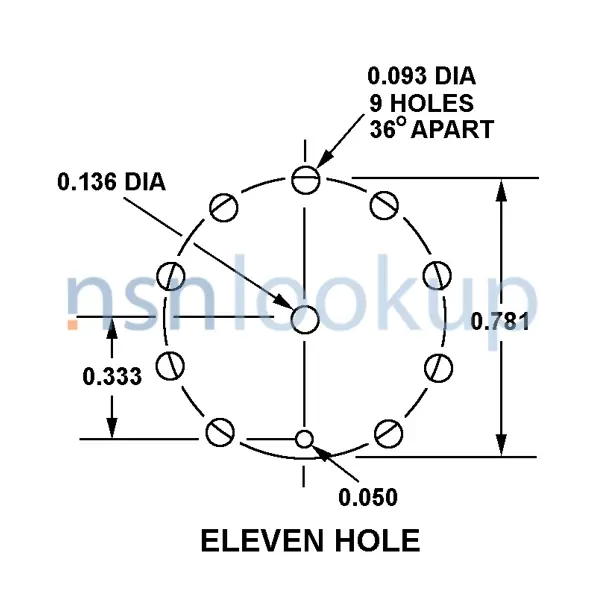

- Printed Circuit Board Hole Arrangement Style [AKWJ]
- Eleven Hole
- Component Shield Mounting Method [AKWK]
- Force Fit
- Polarization Type [AKWN]
- Contact Position
- Features Provided [CBBL]
- Center Shield
- Specific Equipment Accommodated [AFJE]
- Electron Tube
- Fabrication Method [AARN]
- Molded
- Center Shield Material [AKXA]
- Brass
- Center Shield Surface Treatment [AKXB]
- Solder
- Precious Material [PRMT]
- Silver
- Precious Material And Weight [PMWT]
- 0.009 Silver Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Silver
