5935-00-679-0517
Plug-In Electronic Components Socket
5935006790517 006790517 SP6
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
6
Marketplace 5935-00-679-0517
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-679-0517 5+ Documents (More...)
Plug-In Electronic Components Socket,SP6 (Identification) 1/3 NSN 5935-00-679-0517 (Identification)
2/3 NSN 5935-00-679-0517 (Identification SP6 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 78 EA NS Request Quotation
fsg-59/fsc-5950/uk 5950-99-975-3545 Current Transformer 5950999753545999753545 28933A51425CLF2005-S-SP6
3545 https//www.nsnlookup.com /fsg-59/fsc-5910/us 5910-01-259-5539 Glass Dielectric Variable Capacitor,SP6
fsg-59/fsc-5945/kr 5945-37-514-5964 Thermal Relay 5945375145964375145964 HIOR22K-3E-9-12AHM-0228-SP-SP6
Plug-In Electronic Components Socket,SP6 259-5539 Glass Dielectric Variable Capacitor,SP6 https
Drilling Machine 3413142745298,SP6 /SP6 (241)A0873426/SP6 Managed by Italy NSN Created on 7 Apr 2008
//www.nsnlookup.com /fsg-73/fsc-7310/ca 7310-20-004-4135 Liquor Dispenser 7310200044135 200044135,SP6
/SP6 (241)A0873426/SP6 Managed https//www.nsnlookup.com /fsg-59/fsc-5965/fr 5965-14-203-1027 Electrical
Drilling Machine 3413142745298,SP6 /SP6 (241)A0873426/SP6 Managed by Italy NSN Created on 7 Apr 2008
Restrictions 5935-00-679-0517
5935-00-679-0517 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-679-0517
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-679-0517
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-00-679-0517
- Part Number
- Manufacturer
- Status
- SP6
- Manufacturer
- 99699 - Dri Relays Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-00-679-0517
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Distance Between Mounting Facility Centers [AEJN]
- 1.438 Inches Nominal
- Polarization Type [AKWN]
- Contact Position
- Furnished Items And Quantity [TMQY]
- 2 Stud
- Features Provided [CBBL]
- Component Retaining Device
- Specific Equipment Accommodated [AFJE]
- Relay
- Fabrication Method [AARN]
- Molded
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.008 Gold Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Gold

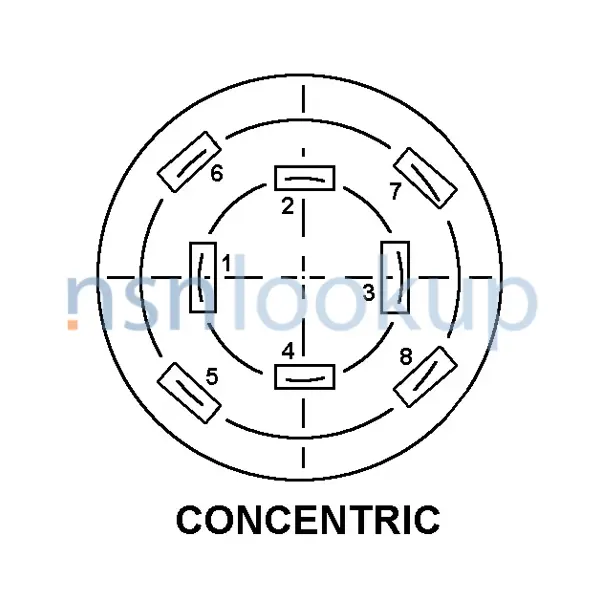

- Contact Position Arrangement Style [CRPY]
- Concentric
- Accommodated Contact Quantity [AFRL]
- 8
- Contact Material [AFRG]
- Copper Alloy
- Contact Surface Treatment [AFRH]
- Gold
- Body Style [AAQL]
- Top Or Bottom Mount W/Molded Saddle
- Overall Length [ABHP]
- 1.750 Inches Nominal
- Overall Height [ABKW]
- 0.531 Inches Nominal
- Overall Width [ABMK]
- 1.000 Inches Nominal
- Projection Length Above Mounting Surface [AKXD]
- 0.062 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 8 Solder Well
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Saddle
- Mounting Hole Style [AEVB]
- Round, W/Two Mounting Holes
DLA Procurement Analysis 5935-00-679-0517
Management Data 5935-00-679-0517
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-679-0517
Freight Information 5935-00-679-0517
5935-00-679-0517 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-679-0517 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-679-0517 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5935-00-679-0517 is not classified as a special type of cargo when transported by water. 5935-00-679-0517 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-679-0517
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
Contracting Technical Data File (CTDF) 5935-00-679-0517 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- R
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
