5935-00-666-4487
Electrical Connector Shell
5935006664487 006664487 700604-21 105-27-12 1JC2189-26 1JC2189H26 0S022421 700604-21X MH19C
The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR. View more Electrical Connector Shell
January 2023
25
Marketplace 5935-00-666-4487
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-666-4487 5+ Documents (More...)
MH19C SHELL,ELECTRICAL CONNECTOR 348 EA NS Request Quotation Updated Every Day 5935-00-666-4487 RQST
NE Updated Every Day 5935-00-666-4487 RQST Updated Every Day 5935-00-666-4487 RQST NE Related Documents
5935006664487 day Upgrade your Account Upgrade 5935-00-666-4487Electrical Connector Shell5935006664487
006664487 700604 -21 105-27-12 1JC2189-26 1JC2189H26 0S022421 700604-21X MH19C The outside case of one
is a Sleeve Spacer Approved Sources 5365-99-729 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-666-4487
Electrical Connector Shell 5935006664487 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930 https
https https day Upgrade your Account Upgrade 5935-00-666-4487Electrical Connector Shell5935006664487 006664487
Electrical Connector Shell 5935006664487 700604 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930
Restrictions 5935-00-666-4487
5935-00-666-4487 is a Electrical Connector Shell that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-00-666-4487
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-666-4487
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5935-00-666-4487
- Part Number
- Manufacturer
- Status
- 700604-21
- Manufacturer
- 31550 - L3harris Technologies, Inc. (Active)
- Primary Buy
- Primary Buy
- 105-27-12
- 88818 - Kearfott Corporation (Active)
- Primary Buy
- Primary Buy
- 1JC2189-26
- 79500 - Westinghouse Electric Corp (Active)
- Primary Buy
- Primary Buy
- 1JC2189H26
- 79500 - Westinghouse Electric Corp (Active)
- Primary Buy
- Primary Buy
- 1JC2189H26
- 48306 - Northrop Grumman Support Services (Active)
- Primary Buy
- Primary Buy
- 0S022421
- 10001 - Navair And Navsea Managed Original (Active)
- Primary Buy
- Primary Buy
- 700604-21X
- 31550 - L3harris Technologies, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1JC2189H26
- 97942 - Northrop Grumman Systems Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MH19C
- 97954 - U S Components Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-666-4487
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Cable Opening Diameter [AGTW]
- 0.297 Inches Maximum
- Cable Opening Quantity [AKRD]
- 1
- Furnished Items [ABFF]
- Clamp
- Material [MATT]
- Plastic Melamine
- Mounting Facility Type And Quantity [AXHR]
- 1 Threaded Coupling
- Nominal Thread Size [CQJX]
- 0.500 Inches

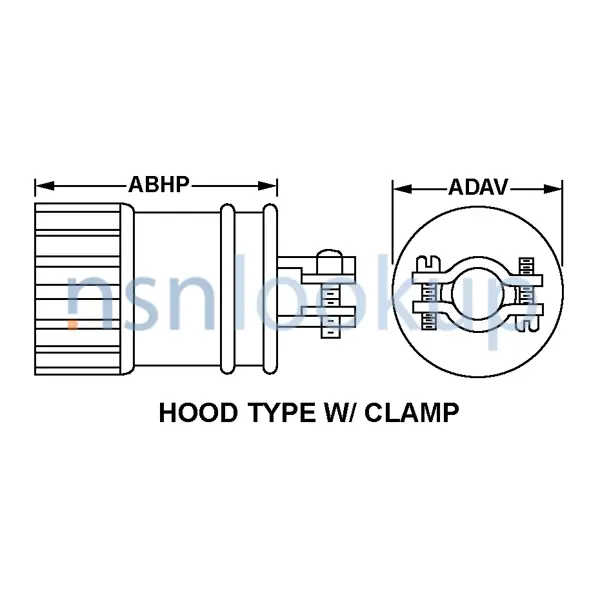

- Style Designator [STYL]
- Hood Type W/Clamp
- Overall Diameter [ADAV]
- 0.656 Inches Nominal
- Overall Length [ABHP]
- 0.969 Inches Nominal
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 20
- Thread Series Designator [THSD]
- Unf
DLA Procurement Analysis 5935-00-666-4487
Management Data 5935-00-666-4487
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Dec 2007
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Jun 1992
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- Z
- Discontinued-Use 5935-00-258-1757
- Z
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- E2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5935-00-666-4487
Freight Information 5935-00-666-4487
5935-00-666-4487 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-666-4487 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-666-4487 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-666-4487 is not classified as a special type of cargo when transported by water. 5935-00-666-4487 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5935-00-666-4487 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
