5935-00-666-2490
Plug-In Electronic Components Socket
5935006662490 006662490 78S7C
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
16
Marketplace 5935-00-666-2490
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-666-2490 1+ Documents (More...)
NE Updated Every Day 5935-00-666-2490 RQST Updated Every Day 5935-00-666-2490 RQST NE Related Documents
5935-00-666-2490 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-666-2490
Restrictions 5935-00-666-2490
5935-00-666-2490 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5935-00-666-2490
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-666-2490
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 12 Apr 1992
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5935-00-666-2490
- Part Number
- Manufacturer
- Status
- 78S7C
- Manufacturer
- 02660 - Amphenol Corp Spectra-Strip/Itd (Replaced)
- Original Design
- Original Design
- 78S7C
- 77820 - Amphenol Corp (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-666-2490
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

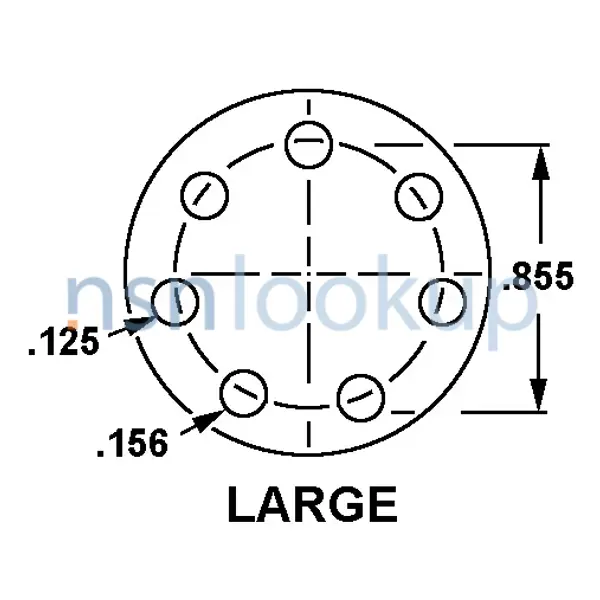

- Contact Position Arrangement Style [CRPY]
- Large
- Accommodated Contact Quantity [AFRL]
- 7
- Contact Material [AFRG]
- Copper Alloy
- Contact Surface Treatment [AFRH]
- Silver
- Body Material [AAFZ]
- Plastic
- Special Features [FEAT]
- Terminal Type Tab,Solder Lug
- Precious Material [PRMT]
- Silver
- Precious Material And Location [PMLC]
- Contact Surface Silver
Similar Supply Items to 5935-00-666-2490
Freight Information 5935-00-666-2490
5935-00-666-2490 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-666-2490 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5935-00-666-2490 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-666-2490 is not classified as a special type of cargo when transported by water. 5935-00-666-2490 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
