5935-00-624-0111
Plug-In Electronic Components Socket
5935006240111 006240111 33305 331C118H01
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
13
Marketplace 5935-00-624-0111
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-624-0111 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-624-0111 (Identification) 2/3 NSN 5935-00-624-0111 (Identification
RQST NE Updated Every Day 5935-00-624-0111 RQST Updated Every Day 5935-00-624-0111 RQST NE Related
SOCKET,PLUG-IN ELECTRONIC COMPON 5 EA NS Request Quotation Subscribe to View Vendor Details... 33305
SOCKET,PLUG-IN ELECTRONIC COMPON 1 EA NS Request Quotation Subscribe to View Vendor Details... 33305
/www.nsnlookup.com /fsg-53/fsc-5360/dk 5360-22-126-0944 Torsion Helical Spring 5360221260944,33305 33305
-33305 https//www.nsnlookup.com Nonmetallic Hose Assembly 4720150053117 JavaScript in your web browser
Plug-In Electronic Components Socket,33305 SOCKET,PLUG-IN ELECTRONIC COMPONENTS 5 EA NS Request
Quotation Subscribe to View Vendor Details... 33305 SOCKET,PLUG-IN ELECTRONIC COMPON 5 EA NS Request
... ) https//www.nsnlookup.com /fsg-61/fsc-6105/us 6105-01-491-04696105014910469 014910469,33305-1 33305
for $1 a day Upgrade your Account Upgrade 5340-00-852-7966Access Cover5340008527966 008527966 215-33305
Restrictions 5935-00-624-0111
5935-00-624-0111 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5935-00-624-0111
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-624-0111
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-00-624-0111
- Part Number
- Manufacturer
- Status
- 33305
- Manufacturer
- 57285 - Beta Labs Inc A-B And Millen Mfg Div (Active)
- Primary Buy
- Primary Buy
- 331C118H01
- 97942 - Northrop Grumman Systems Corporation (Active)
- Secondary Buy
- Secondary Buy
- 331C118H01
- 79500 - Westinghouse Electric Corp (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5935-00-624-0111
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 7
- Body Material [AAFZ]
- Any Acceptable
- Body Mounting Hole Accommodation Diameter [ADAL]
- 1.562 Inches Nominal
- Body Style [AAQL]
- Top Mount
- Contact Material [AFRG]
- Phosphor Bronze

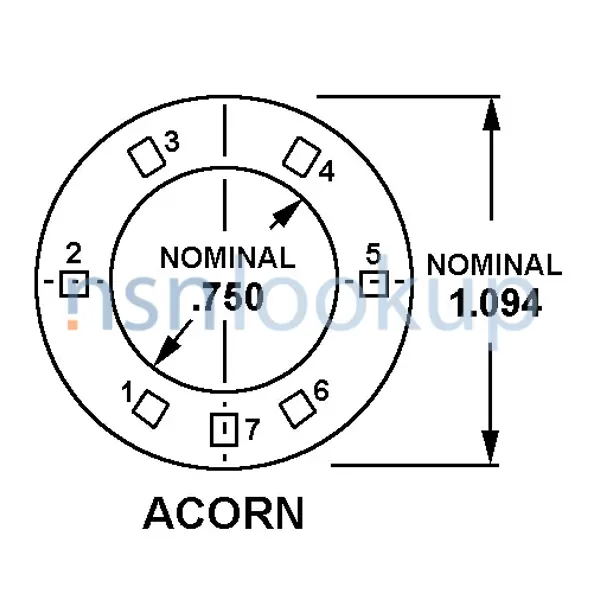

- Contact Position Arrangement Style [CRPY]
- Acorn
- Contact Surface Treatment [AFRH]
- Silver
- Distance Between Mounting Facility Centers [AEJN]
- 1.188 Inches Nominal
- Fabrication Method [AARN]
- Molded
- Mounting Hole Diameter [ABTB]
- 0.156 Nominal Inches
- Mounting Hole Style [AEVB]
- Round, W/Two Mounting Holes
- Mounting Method [AXGY]
- Saddle
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Contact Position
- Precious Material And Location [PMLC]
- Contact Surfaces Silver
- Precious Material And Weight [PMWT]
- 0.007 Silver Grains, Troy
- Precious Material [PRMT]
- Silver
- Overall Diameter [ADAV]
- 1.562 Inches Nominal
- Overall Height [ABKW]
- 0.313 Inches Nominal
- Specific Equipment Accommodated [AFJE]
- Electron Tub
- Terminal Type And Quantity [TTQY]
- 5 Tab, Solder Lug
DLA Procurement Analysis 5935-00-624-0111
Management Data 5935-00-624-0111
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-624-0111
Freight Information 5935-00-624-0111
5935-00-624-0111 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-624-0111 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-624-0111 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-624-0111 is not classified as a special type of cargo when transported by water. 5935-00-624-0111 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-624-0111
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
Contracting Technical Data File (CTDF) 5935-00-624-0111 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
