5935-00-615-6596
Electrical Receptacle Connector
5935006156596 006156596 10033217-54 133-015-03-1003
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector
November 2023
13
Marketplace 5935-00-615-6596
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-615-6596 2+ Documents (More...)
RQST NE Updated Every Day 5935-00-615-6596 RQST Updated Every Day 5935-00-615-6596 RQST NE Related
Documents 5935-00-615-6596 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935
Electrical Receptacle Connector 006156596 Upgrade your Account Upgrade 5935-00-615-6596Electrical
Receptacle Connector5935006156596 006156596 10033217 www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-615
Restrictions 5935-00-615-6596
5935-00-615-6596 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-615-6596
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-615-6596
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5935-00-615-6596
- Part Number
- Manufacturer
- Status
- 10033217-54
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- 133-015-03-1003
- 77820 - Amphenol Corp (Active)
- Secondary Buy
- Secondary Buy
- 133-015-03-1003
- 02660 - Amphenol Corp Spectra-Strip/Itd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-615-6596
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0

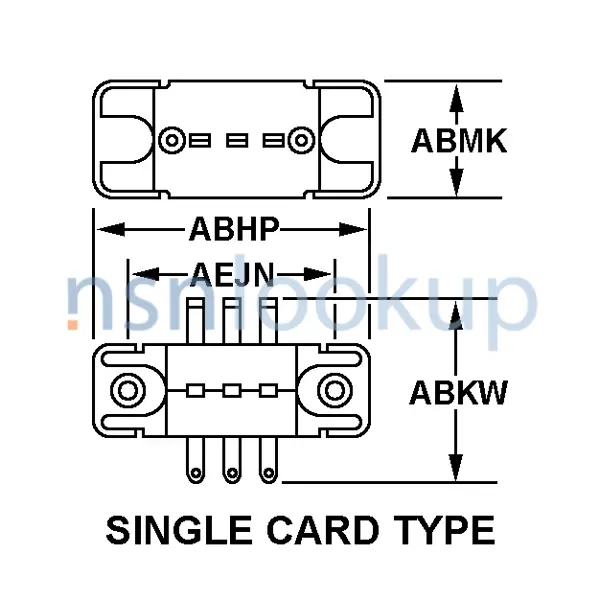

- Body Style [AAQL]
- Single Card Type
- Overall Length [ABHP]
- 3.226 Inches Nominal
- Overall Height [ABKW]
- 0.656 Inches Nominal
- Overall Width [ABMK]
- 0.676 Inches Nominal
- Distance Between Mounting Facility Centers [AEJN]
- 2.937 Inches Nominal
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.128 Inches Nominal
- Polarization Method [AFRN]
- Contact To Contact Polarizing Keys
- Mating End Quantity [AFQW]
- 1
- Contact Position Arrangement Style [AFQX]
- 1 Row Of Contacts Non-Inserted Board Single Mating End
- Insert Material [CQZG]
- Plastic Diallyl Phthalate Single Mating End
- Insert Material Document And Classification [CTKL]
- Mil-M-14,Type Mdg Mil Spec Single Material Response Single Mating End
- Included Contact Quantity [CXCG]
- 15 Single Mating End Single Contact Grouping
- Contact Removability [AFQZ]
- Nonremovable Single Mating End Single Contact Grouping
- Included Contact Type [CXCL]
- Flat Pin Single Mating End Single Contact Grouping
- Contact Maximum Current Rating In Amps [AFRC]
- 5.0 Single Mating End Single Contact Grouping
- Contact Material [CQTZ]
- Copper Alloy Single Mating End Single Contact Grouping
- Contact Surface Treatment [CQYH]
- Gold Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Tab, Solder Lug Single Mating End Single Contact Grouping
- Terminal Location [CQTM]
- Side Single Mating End Single Contact Grouping
- Environmental Protection [ADZC]
- Salt Water Resistant
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.015 Gold Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
