5935-00-587-1941
Plug-In Electronic Components Socket
5935005871941 005871941 860042-6 VBE406-3 481867 SK116A
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
21
Marketplace 5935-00-587-1941
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-587-1941 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-587-1941 (Identification) 2/3 NSN 5935-00-587-1941 (Identification
RQST NE Updated Every Day 5935-00-587-1941 RQST Updated Every Day 5935-00-587-1941 RQST NE Related Documents
Components Socket your Account Upgrade 5935-00-587-1941Plug-In Electronic Components Socket5935005871941 005871941
860042 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-587-1941 Plug-In Electronic Components Socket
Components Socket your Account Upgrade 5935-00-587-1941Plug-In Electronic Components Socket5935005871941 005871941
860042 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-587-1941 Plug-In Electronic Components Socket
Components Socket your Account Upgrade 5935-00-587-1941Plug-In Electronic Components Socket5935005871941 005871941
860042 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-587-1941 Plug-In Electronic Components Socket
5840-00-778-6337 1+ Documents ( More... ) https// https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-587-1941
AMC 1 AMSC G IMC Z IMCACTY CL Approved Sources 5840-00-778-6337 Part NumberManufacturerStatusSM-D-481867
Restrictions 5935-00-587-1941
5935-00-587-1941 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-587-1941
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-587-1941
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HDKE
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-00-587-1941
- Part Number
- Manufacturer
- Status
- 860042-6
- Manufacturer
- 06481 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
- 860042-6
- 13973 - Litton Systems Inc. Div Navigation (Replaced)
- Original Design
- Original Design
- VBE406-3
- H0203 - Thales Nederland (Active)
- Secondary Buy
- Secondary Buy
- 481867
- F0057 - Thales Six Gts France Sas (Active)
- Secondary Buy
- Secondary Buy
- SK116A
- 09975 - Unisys Corporation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5935-00-587-1941
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 11
- Body Material [AAFZ]
- Plastic And Mica
- Body Style [AAQL]
- Top Or Bottom Mount W/Metal Saddle
- Contact Material [AFRG]
- Beryllium Copper
- Contact Maximum Current Rating In Amps [AFRC]
- 1.0

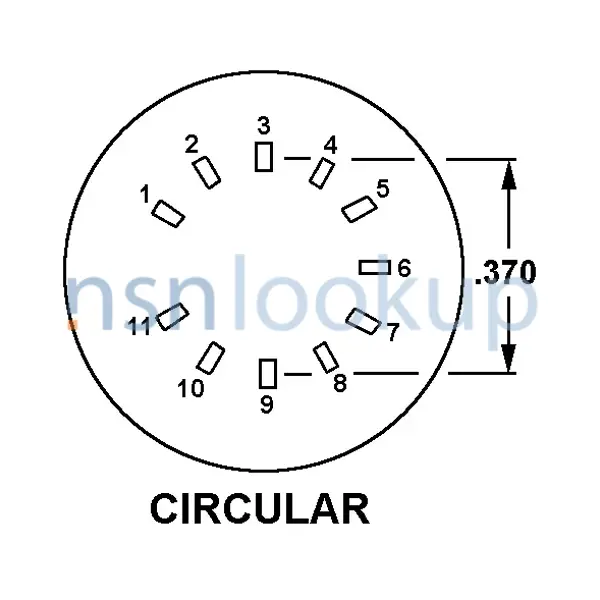

- Contact Position Arrangement Style [CRPY]
- Circular
- Contact Surface Treatment [AFRH]
- Gold
- Distance Between Mounting Facility Centers [AEJN]
- 0.875 Inches Nominal
- Fabrication Method [AARN]
- Molded
- Mounting Hole Diameter [ABTB]
- 0.098 Inches Minimum And 1.103 Inches Maximum
- Mounting Hole Style [AEVB]
- Two Mounting Holes/Slots, In-Line
- Mounting Method [AXGY]
- Saddle
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Contact Shape
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.011 Gold Grains, Troy
- Overall Height [ABKW]
- 0.437 Inches Nominal
- Overall Length [ABHP]
- 1.094 Inches Nominal
- Overall Width [ABMK]
- 0.734 Inches Nominal
- Specific Equipment Accommodated [AFJE]
- Electron Tube
- Terminal Type And Quantity [TTQY]
- 11 Tab, Solder Lug
DLA Procurement Analysis 5935-00-587-1941
Management Data 5935-00-587-1941
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-587-1941
Freight Information 5935-00-587-1941
5935-00-587-1941 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-587-1941 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-587-1941 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-587-1941 is not classified as a special type of cargo when transported by water. 5935-00-587-1941 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-587-1941
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
