5935-00-549-1698
Plug-In Electronic Components Socket
5935005491698 005491698 124-255
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
5
Marketplace 5935-00-549-1698
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-549-1698 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5935-00-549-1698 RQST NE Updated Every Day 5935-00-549-1698 RQST
Updated Every Day 5935-00-549-1698 RQST NE Related Documents 5935-00-549-1698 1+ Documents ( More...
Restrictions 5935-00-549-1698
5935-00-549-1698 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-549-1698
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-549-1698
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5935-00-549-1698
- Part Number
- Manufacturer
- Status
- 124-255
- Manufacturer
- 71313 - Viking Technologies, Ltd. (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-00-549-1698
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 5
- Body Material [AAFZ]
- Ceramic
- Body Mounting Hole Accommodation Diameter [ADAL]
- 1.495 Inches Minimum And 1.505 Inches Maximum
- Body Style [AAQL]
- Top Mount W/Saddle
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 2.933 Nominal Mils And 2.943 Nominal Centimeters
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 2.933 Inches Minimum And 2.943 Inches Maximum
- Contact Material [AFRG]
- Brass

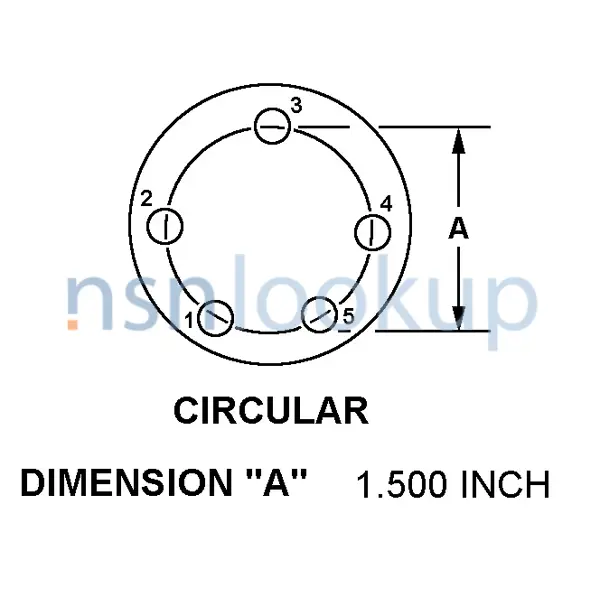

- Contact Position Arrangement Style [CRPY]
- Circular
- Contact Surface Treatment [AFRH]
- Any Acceptable
- Fabrication Method [AARN]
- Molded
- Features Provided [CBBL]
- Component Retaining Device
- Mounting Hole Diameter [ABTB]
- 0.205 Nominal Mils And 0.215 Nominal Centimeters
- Mounting Hole Style [AEVB]
- Round, W/Four Mounting Holes/Slots
- Mounting Method [AXGY]
- Saddle
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Contact Position
- Projection Length Below Mounting Surface [AKXC]
- 0.812 Inches Nominal
- Overall Height [ABKW]
- 1.734 Inches Minimum And 1.766 Inches Maximum
- Overall Length [ABHP]
- 3.734 Inches Minimum And 3.766 Inches Maximum
- Overall Width [ABMK]
- 3.734 Inches Minimum And 3.766 Inches Maximum
- Specific Equipment Accommodated [AFJE]
- Electron Tube
- Terminal Type And Quantity [TTQY]
- 5 Tab W/Screw
