5935-00-539-4611
Plug-In Electronic Components Socket
5935005394611 005394611 137294
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
14
Marketplace 5935-00-539-4611
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-539-4611 5+ Documents (More...)
NE Updated Every Day 5935-00-539-4611 RQST Updated Every Day 5935-00-539-4611 RQST NE Related Documents
5935-00-539-4611 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-539-4611
Plug-In Electronic Components Socket,137294 5340-22-262-0806 Traekplade U/Tap 5340222620806222620806
enable JavaScript in your web browser . 5110-15-186-4601Serie Lime Ad Ago5110151864601 151864601 137294
to enable JavaScript in your web browser . 5340-22-262-0806Traekplade U/Tap5340222620806 222620806 137294
Account Upgrade 4320-12-302-6814Reciprocating Pump Unit4320123026814 123026814 0031005.111 0904727 137294
RETAINER,FUEL PUMP 7861 EA NS Request Quotation Subscribe to View Vendor Details... 137294 RETAINER,
5340/dk 5340-22-262-0806 Traekplade U/Tap 5340222620806 222620806 Components Socket5935005394611 005394611
JavaScript in your web browser . 4310-99-536-3710Casing Cover4310995363710 995363710C40653U977A737-137294
5340-22-262-0806 Traekplade U/Tap 5340222620806 222620806 Serie Lime Ad Ago 5110151864601151864601 137294
Restrictions 5935-00-539-4611
5935-00-539-4611 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-539-4611
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-539-4611
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-00-539-4611
- Part Number
- Manufacturer
- Status
- 137294
- Manufacturer
- 64959 - American Telephone And Telegraph Co (Replaced)
- Original Design
- Original Design
- 137294
- 70408 - At And T Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 137294
- 3B4M0 - Lucent Technologies Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-539-4611
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Distance Between Mounting Facility Centers [AEJN]
- 1.125 Inches Nominal
- Polarization Type [AKWN]
- Colored Dot
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.014 Gold Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Gold

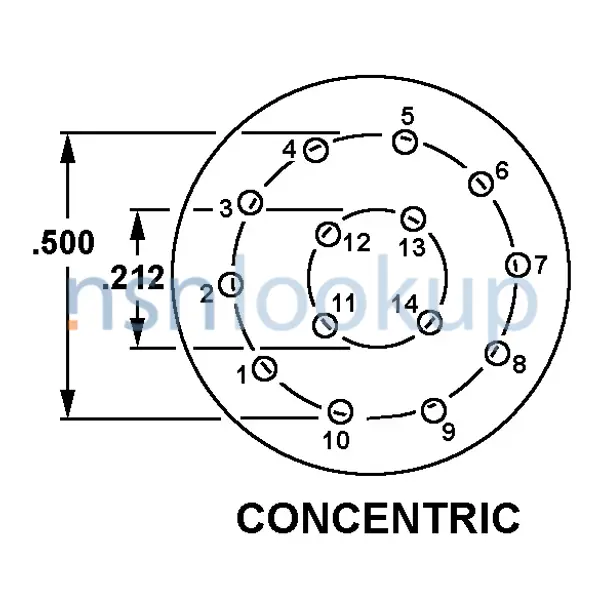

- Contact Position Arrangement Style [CRPY]
- Concentric
- Accommodated Contact Quantity [AFRL]
- 14
- Contact Material [AFRG]
- Copper Alloy
- Contact Surface Treatment [AFRH]
- Gold
- Body Style [AAQL]
- Bottom Mount W/Metal Saddle
- Overall Length [ABHP]
- 1.344 Inches Nominal
- Overall Height [ABKW]
- 0.688 Inches Nominal
- Overall Width [ABMK]
- 0.750 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 14 Tab, Solder Lug
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Saddle
- Mounting Hole Style [AEVB]
- Round, W/Two Mounting Holes
- Mounting Hole Diameter [ABTB]
- 0.125 Inches Nominal
- Body Mounting Hole Accommodation Diameter [ADAL]
- 0.719 Inches Nominal
Similar Supply Items to 5935-00-539-4611
Freight Information 5935-00-539-4611
5935-00-539-4611 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-539-4611 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-539-4611 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5935-00-539-4611 is not classified as a special type of cargo when transported by water. 5935-00-539-4611 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-539-4611
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- --
- --
- --
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
