5935-00-539-0251
Connector Adapter
5935005390251 005390251 840791
An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction.It is not designed for permanent attachment to a cable, cord, coaxial line, or wire.The physical shape of an electrical connector should not be the determining factor of its name.Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR.Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER.For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT. View more Connector Adapter
May 2023
14
Marketplace 5935-00-539-0251
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-539-0251 3+ Documents (More...)
Day 5935-00-539-0251 RQST Updated Every Day 5935-00-539-0251 RQST NE Related Documents 5935-00-539-0251
Datasheet Management Day 5935-00-539-0251 RQST Updated Every Day 5935-00-539-0251 RQST NE Related Documents
to enable JavaScript in your web browser . 4220-25-147-0539Overtrykksventil4220251470539 251470539 840791
Connector Adapter 5935005390251 005390251 for $1 a day Upgrade your Account Upgrade 5935-00-539
147-0539 Overtrykksventil 4220251470539251470539 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-539-0251
Connector Adapter 5935005390251 005390251 for $1 a day Upgrade your Account Upgrade 5935-00-539
Restrictions 5935-00-539-0251
5935-00-539-0251 is a Connector Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-539-0251
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-539-0251
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-00-539-0251
- Part Number
- Manufacturer
- Status
- 840791
- Manufacturer
- 61423 - Kidde Technologies, Inc (Active)
- Primary Buy
- Primary Buy
- 840791
- 0KDP7 - Kidde-Fenwal, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-539-0251
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Distance From Mounting Shoulder To Front Face [AFQK]
- 0.438 Inches Nominal

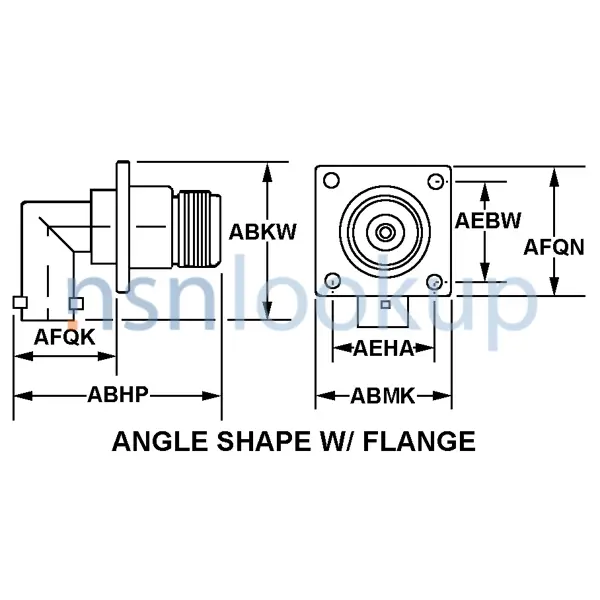

- Body Style [AAQL]
- Angle Shape W/Flange
- Center To Center Distance Between Mounting Facilities Parallel To Height [AEBW]
- 0.750 Inches Nominal
- Connector Locking Method [AFRV]
- Externally Threaded Shell And Internally Threaded Coupling Nut
- Contact Position Arrangement Style [AFQX]
- Dc All Mating Ends
- Contact Removability [AFQZ]
- Nonremovable All Mating Ends Single Contact Grouping
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]
- 0.875 Inches Nominal
- Environmental Protection [ADZC]
- Heat Resistant
- Flange Length [AFQN]
- 1.062 Inches Nominal
- Mating End Quantity [AFQW]
- 2
- Nominal Thread Size [CQJX]
- 0.375 Inches And 0.138 Inches
- Nominal Thread Length [AKMG]
- 0.375 Inches And 0.125 Inches
- Included Contact Quantity [CXCG]
- 1 All Mating Ends All Contact Groupings
- Included Contact Type [CXCL]
- Round Pin 1St Mating End Single Contact Grouping
- Included Contact Type [CXCL]
- Round Socket 2Nd Mating End Single Contact Grouping
- Insert Material [CQZG]
- Ceramic All Mating Ends
- Shell Material [CSPT]
- Nickel Alloy
- Shell Type [AFRT]
- Solid
- Overall Height [ABKW]
- 1.688 Inches Nominal
- Overall Length [ABHP]
- 1.031 Inches Nominal
- Overall Width [ABMK]
- 1.250 Inches Nominal
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.138 Inches Nominal
- Thread Class [AAJD]
- 3A And 3B
- Thread Direction [AAJF]
- Right-Hand And Right-Hand
- Thread Quantity Per Inch [CMLP]
- 32 And 32
- Thread Series Designator [THSD]
- Unef And Unc
- Threaded Device Type [AFQR]
- Coupling Facility And Mounting Hole
DLA Procurement Analysis 5935-00-539-0251
Management Data 5935-00-539-0251
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-539-0251
Freight Information 5935-00-539-0251
5935-00-539-0251 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-539-0251 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-539-0251 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5935-00-539-0251 is not classified as a special type of cargo when transported by water. 5935-00-539-0251 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-539-0251
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5935-00-539-0251 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
