5935-00-521-2313
Cable Clamp To Connector Adapter
5935005212313 005212313 S1026-C1612-12 GA800NE16-12C
An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables.It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device.It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions. View more Electrical Connector Backshell
May 2023
13
Marketplace 5935-00-521-2313
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-521-2313 4+ Documents (More...)
GA800NE16-12C ADAPTER,CABLE CLAMP TO CONNECTOR 13 EA NS Request Quotation Updated Every Day 5935-00-521
-2313 RQST NE Updated Every Day 5935-00-521-2313 RQST Updated Every Day 5935-00-521-2313 RQST NE Related
Cable Clamp To Connector Adapter 005212313 Upgrade your Account Upgrade 5935-00-521-2313Cable Clamp
To Connector Adapter5935005212313 005212313 S1026 /www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-521
Cable Clamp To Connector Adapter 005212313 www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-521 https
Cable Clamp To Connector Adapter 005212313 your Account Upgrade 5935-00-521-2313Cable Clamp To
Connector Adapter5935005212313 005212313 S1026-C1612 99-134-2298 Plain Stud 5307991342298 991342298,BS2693
Restrictions 5935-00-521-2313
5935-00-521-2313 is a Cable Clamp To Connector Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-521-2313
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-521-2313
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 2000
Approved Sources 5935-00-521-2313
- Part Number
- Manufacturer
- Status
- S1026-C1612-12
- Manufacturer
- 07418 - Joslyn Sunbank Company, Llc (Active)
- Primary Buy
- Primary Buy
- GA800NE16-12C
- 26512 - Northrop Grumman Systems Corporation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5935-00-521-2313
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Body Angle In Deg [ADMW]
- 90.0
- Cable Opening Diameter [AGTW]
- 0.406 Inches Minimum And 0.750 Inches Maximum
- Cable Opening Quantity [AKRD]
- 1
- Material [MATT]
- Aluminum Alloy
- Mounting Facility Type And Quantity [AXHR]
- 1 Threaded Coupling
- Nominal Thread Size [CQJX]
- 0.937 Inches
- Size Designation [ALJP]
- 16
- Overall Width [ABMK]
- 1.320 Inches Maximum
- Thread Series Designator [THSD]
- Unef

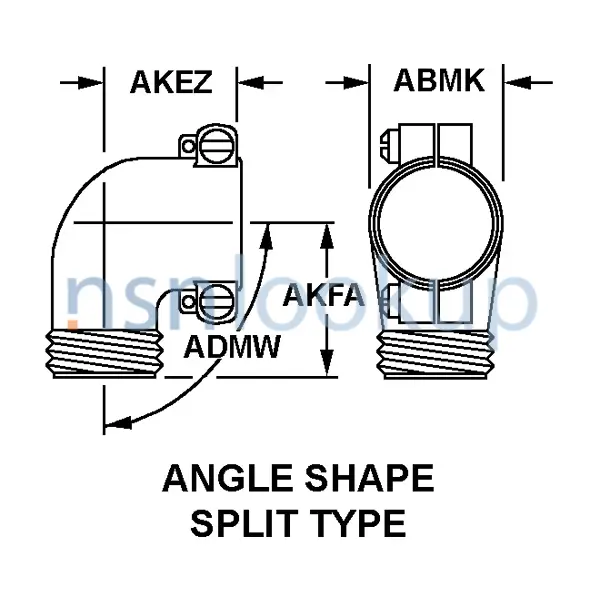

- Style Designator [STYL]
- Angle Shape Split Type
- Surface Treatment [SFTT]
- Nickel
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
Weapon Systems (WSDC) 5935-00-521-2313
DLA Procurement Analysis 5935-00-521-2313
Management Data 5935-00-521-2313
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5935-00-521-2313
Freight Information 5935-00-521-2313
5935-00-521-2313 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-521-2313 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-521-2313 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-521-2313 is not classified as a special type of cargo when transported by water. 5935-00-521-2313 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-521-2313
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5935-00-521-2313 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
