5935-00-509-6194

Electrical Plug Connector

5935005096194 005096194 SAE-AS50151 9446A10SL-4S 97-3106A10SL844SC MS3456W10SL4S 981AS578-20 MS3106R-10SL-4S MS3456L10SL-4S 9446A10SL-4SN MS3106B10SL-4S MS3476W10SL-4S 06-55-0088 MS3106A10SL4SC MS3106F10SL4S 808073-164 MS3106A10SL4S MS3456W10SL-4S CV3456W10SL4S 70060802 CA3106R10RL4S GC15B9A10SL4S AN3106A10SL4SC MIL-C-5015 10317808 5935PL0911944

An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Plug Connector

Managed by United States

NSN Created on 26 Jul 1974

Data Last Changed
November 2023

NATO Update Count
123

NATO Data Quality

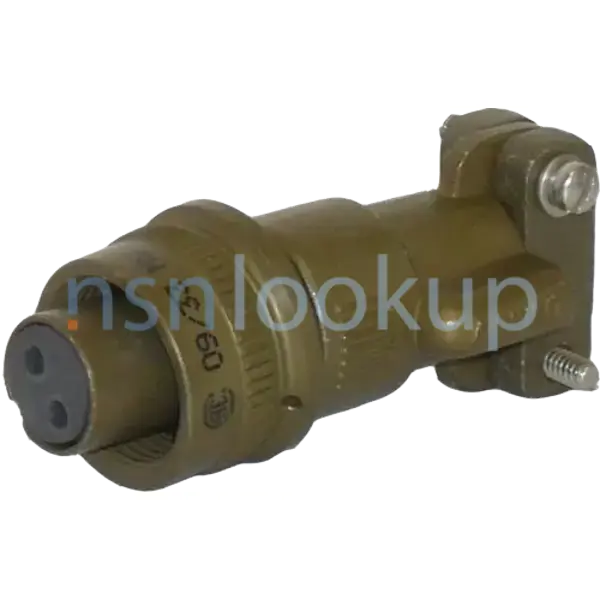

AAQL Style 7A for 5935-00-509-6194 1/1 — NSN 5935-00-509-6194 (Identification) 1/1

Marketplace 5935-00-509-6194

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS3106A10SL4SC CONNECTOR,PLUG,ELECTRICAL 3 EA NS

MS3456W10SL-4S CONNECTOR,PLUG,ELECTRICAL 16 EA NS

Subscribe to View Vendor Details...

MS3456W10SL-4S CONNECTOR,PLUG,ELECTRICAL 2 EA NS

Subscribe to View Vendor Details...

MS3456L10SL4S CONNECTOR,PLUG,ELECTRICAL 1 EA NS

Subscribe to View Vendor Details...

MS3106R10SL-4S CONNECTOR,PLUG,ELECTRICAL 208 EA NS

MS3106F10SL-4S CONNECTOR,PLUG,ELECTRICAL 1 EA NS

Subscribe to View Vendor Details...

MS3456W10SL4S CONNECTOR,PLUG,ELECTRICAL 1 EA NS

MS3456L10SL-4S CONNECTOR,PLUG,ELECTRICAL 2 EA NS

MS3106R10SL-4S CONNECTOR,PLUG,ELECTRICAL 2 EA NS

Subscribe to View Vendor Details...

MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL 117 EA NS

M83723/23R1104N CONNECTOR,PLUG,ELECTRICAL 4 EA NS

Subscribe to View Vendor Details...

MS3106A10SL-4S CONNECTOR,PLUG,ELECTRICAL 6 EA NS

MS3106R10SL4SC CONNECTOR,PLUG,ELECTRICAL 1 EA NS

Subscribe to View Vendor Details...

MS3106F10SL-4S CONNECTOR,PLUG,ELECTRICAL 14 EA NS

M83723/23R1104N CONNECTOR,PLUG,ELECTRICAL 5 EA NS

MS3456L10SL-4S CONNECTOR,PLUG,ELECTRICAL 31 EA NS

MS3456W10SL-4S CONNECTOR,PLUG,ELECTRICAL 18 EA NS

MS3106R10SL-4S CONNECTOR,PLUG,ELECTRICAL 3 EA NS

MS3106A10SL-4S CONNECTOR,PLUG,ELECTRICAL 257 EA NS

Subscribe to View Vendor Details...

MS3456W10SL-4S CONNECTOR,PLUG,ELECTRICAL 41 EA NS

MS3106A10SL-4S CONNECTOR,PLUG,ELECTRICAL 16 EA NS

Subscribe to View Vendor Details...

MS3456W10SL-4S CONNECTOR 28 EA NE

Subscribe to View Vendor Details...

MILC5015 CONNECTOR,PLUG,ELECTRICAL RQST NS

Subscribe to View Vendor Details...

MS3106F10SL-4S CONNECTOR,PLUG,ELECTRICAL 1 EA NS

Subscribe to View Vendor Details...

MS3106A10SL4S CONNECTOR,PLUG,ELECTRICAL 2 EA NS

Subscribe to View Vendor Details...

MS3456W10SL-4S CONNECTOR,PLUG,ELECTRICAL 1 EA NS

Subscribe to View Vendor Details...

MS3456W10SL-4S CONNECTOR,PLUG,ELECTRICAL 1 EA NS

Subscribe to View Vendor Details...

MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL 1 EA NS

5935-00-509-6194 CONNECTOR,PLUG,ELECTRICAL 1 EA NS

MS3456W10SL-4S CONNECTOR,PLUG,ELECTRICAL 1 EA NS

Subscribe to View Vendor Details...

MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL 1 EA NS

Subscribe to View Vendor Details...

MS3456W10SL4S CONNECTOR,PLUG,ELECTRICAL 2 EA NS

Subscribe to View Vendor Details...

MS3456W10SL-4S CONNECTOR,PLUG,ELECTRICAL 2 EA NS

Updated Every Day

5935-00-509-6194 RQST NE

Updated Every Day

5935-00-509-6194 RQST

Updated Every Day

5935-00-509-6194 RQST NE

Restrictions 5935-00-509-6194

5935-00-509-6194 is a Electrical Plug Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.

Import and Export 5935-00-509-6194

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5935-00-509-6194

US Army (A918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A196
Supplementary Receivers:: AJBFBDAZ; AMC 1 AMSC T IMC Z IMCACTY CD

MOE Rule:: BGX1
Effective Date:: 1 Apr 2006
Former MOE Rule:: BTX1; AMC 1 AMSC T

US Coast Guard (C911)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C007
Supplementary Receivers:: XH; AMC 1 AMSC T

US Air Force (FXGX)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXTX; AMC 1 AMSC T IMC Z IMCACTY SX

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G880)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC B

US Marine Corps (MC49)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC13; AMC 1 AMSC T IMC Z IMCACTY PA

US Navy (N9BN)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIND
Supplementary Collaborators:: GTKEJVJSHXHSHD; AMC 1 AMSC T IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Apr 2011

Lithuania (WI01)
Effective Date:: 1 Jun 2001

Slovenia (WL01)
Effective Date:: 1 Apr 2014

Poland (WP01)
Effective Date:: 1 Apr 2005

Czech Republic (WZ01)
Effective Date:: 1 Jan 2010

Brazil (YA01)
Effective Date:: 1 Sep 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Morocco (YP01)
Effective Date:: 1 Dec 2011

Malaysia (YW01)
Effective Date:: 1 Jun 1996

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Aug 1995

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 5935-00-509-6194

Part Number
Manufacturer
Status
SAE-AS50151: 0U583 - Sae International (Active); Incomplete Reference; RNCC 3 RNVC 1 DAC E
MS3456W10SL-4S: 0U583 - Sae International (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
CV3456W10SL4S: 71468 - Itt Cannon Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
70060802: K6451 - Bae Systems Marine Limited (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
AN3106A10SL4SC: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
MS3456W10SL-4S: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
5935005096194: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
MIL-C-5015: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
10317808: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5935PL0911944: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5935005096194: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
9446A10SL-4S: 14283 - Amphenol Optimize Manufacturing Co. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
97-3106A10SL844SC: 71468 - Itt Cannon Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS3456W10SL4S: 81349 - Military Specifications (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
981AS578-20: 30003 - Naval Air Systems Command Managed (Active); Advisory Reference; RNCC C RNVC 1 DAC 1
MS3106R-10SL-4S: 96906 - Military Standards (Active); Advisory Reference; RNCC C RNVC 1 DAC 3
MS3456L10SL-4S: 96906 - Military Standards (Active); Advisory Reference; RNCC C RNVC 1 DAC 3
9446A10SL-4SN: 14283 - Amphenol Optimize Manufacturing Co. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS3106B10SL-4S: 96906 - Military Standards (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS3476W10SL-4S: 96906 - Military Standards (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
06-55-0088: 96169 - Electric Boat Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS3106A10SL4SC: 96906 - Military Standards (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS3106F10SL4S: 96906 - Military Standards (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
808073-164: 96214 - Raytheon Company (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS3106A10SL4S: 96906 - Military Standards (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
CA3106R10RL4S: 71468 - Itt Cannon Llc (Active); Transferred; RNCC E RNVC 8 DAC 6
GC15B9A10SL4S: 26512 - Northrop Grumman Systems Corporation (Active); Transferred; RNCC E RNVC 8 DAC 1

Datasheet 5935-00-509-6194

Characteristic
Specifications
FIIG: A039B0
Connector Locking Method [AFRV]: Internally Threaded Coupling Ring
Contact Material [CQTZ]: Copper Alloy Single Mating End Single Contact Grouping
Contact Maximum Ac Voltage Rating In Volts [AFRD]: 500.0 Single Mating End Single Contact Grouping
Contact Maximum Current Rating In Amps [AFRC]: 22.0 Single Mating End Single Contact Grouping
Contact Removability [AFQZ]: Removable Single Mating End Single Contact Grouping
Contact Maximum Dc Voltage Rating In Volts [AFRE]: 700.0 Single Mating End Single Contact Grouping
Contact Position Arrangement Style [AFQX]: 10Sl-4 Single Mating End
Contact Surface Treatment Document And Classification [CRBJ]: Mil-G-45204 Mil Spec Single Treatment Response Single Mating End Single Contact Grouping
Contact Surface Treatment [CQYH]: Gold Single Mating End Single Contact Grouping
Environmental Protection [ADZC]: Moisture Resistant And Vibration Resistant And Salt Water Resistant
Body Style [AAQL]: Straight Shape, Internal Coupling
Mating End Quantity [AFQW]: 1
Nominal Thread Size [CQJX]: 0.625 Inches And 0.625 Inches
Nominal Thread Length [AKMG]: 0.290 Inches And 0.414 Inches
Included Contact Quantity [CXCG]: 2 Single Mating End Single Contact Grouping
Included Contact Type [CXCL]: Round Socket Single Mating End Single Contact Grouping
Insert Material [CQZG]: Rubber Silicone Class Q Single Mating End
Insert Position In Deg [AFRP]: 0.0
Polarization Method [AFRN]: Keyway Or Multiple Keyway
Precious Material And Location [PMLC]: Contact Surfaces Gold
Precious Material [PRMT]: Gold
Precious Material And Weight [PMWT]: 0.002 Gold Grains, Troy
Shell Material [CSPT]: Aluminum Alloy
Shell Surface Treatment Document And Classification [CTBC]: Qq-P-416,Ty 2,Class 3 Fed Spec All Treatment Responses
Shell Surface Treatment [CSWM]: Cadmium And Chromate
Shell Type [AFRT]: Solid
Overall Diameter [ADAV]: 0.969 Inches Maximum
Overall Length [ABHP]: 2.031 Inches Maximum
Special Features [FEAT]: In Order To Complete The Connector Assembly,The User Must Obtain/Provide The Backshell. Standard Versions May Be Ordered As Nsn 5935-01-179-5430,P/N M85049/52-1-10W For The Straight Style,Or Nsn 5935-01-171-5758,P/N M85049/51-1-10W For The Right Angle Style
Specification/Standard Data [ZZZK]: 96906-Ms3456 Government Standard
Terminal Location [CQTM]: Back Single Mating End Single Contact Grouping
Terminal Type [CSCF]: Crimp Single Mating End Single Contact Grouping
Test Data Document [TEST]: 81349-Mil-C-5015 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
Thread Class [AAJD]: 2A And 2B
Thread Direction [AAJF]: Right-Hand And Right-Hand
Thread Quantity Per Inch [CMLP]: 24 And 24
Thread Series Designator [THSD]: Unef And Unef
Threaded Device Type [AFQR]: Back Shell And Coupling Facility

Weapon Systems (WSDC) 5935-00-509-6194

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5935-00-509-6194

Last Stock Position:: 5298 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5935-00-509-6194

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Apr 2023: Department of the Navy (DN); EA; Subscribe; 1
Oct 2022: US Marine Corps (DM); EA; Subscribe; 1
Oct 2021: US Marine Corps (DM); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Mar 2020: Department of the Air Force (DF); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5935-01-030-3339

Army

Materiel Category and Inventory Manager:

Q: Electronics Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

CC: Other Aircraft Categories
Multi-Application Aviation Spares

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

EH: ELECTRONIC COMPONENTS

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Material Identification:

K: Reserved

Operational Test:

: No Special Procedures

Physical Category:

1: Bin

NATO Stock Numbers Related to 5935-00-509-6194

5935-14-574-3604 5935-15-061-3649 5935-12-145-8923 5935-14-533-7391 5935-14-386-8021 5935-14-442-1970 5935-14-267-0144 5935-15-108-9253 5935-99-762-4807 5935-21-820-6744 5935-26-300-7621 5935-99-386-6420 5935-66-150-9489 5935-99-580-1134 5935-14-394-9881 5935-14-454-5696 5935-14-528-8334 5935-15-189-8376

Freight Information 5935-00-509-6194

5935-00-509-6194 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-509-6194 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-509-6194 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-509-6194 is not classified as a special type of cargo when transported by water. 5935-00-509-6194 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5935-00-509-6194

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; 2.0" H x 1.0" W x 1.0" L; --; --; --; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; MIL-DTL-17667, Neutral Wrapping Paper; No Requirement; Not Applicable; --; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5935-00-509-6194 5 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE7M019V2239: 29 Nov 2018; Subscribe; 840; Subscribe; Subscribe
SPE7MC18V3293: 01 Feb 2018; Subscribe; 530; Subscribe; Subscribe
SPE7M317P4404: 11 Aug 2017; Subscribe; 40; Subscribe; Subscribe
SPE7M016VG154: 23 Sep 2016; Subscribe; 305; Subscribe; Subscribe
SPE7M914M0965: 10 Jan 2014; Subscribe; 2980; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5935-00-509-6194 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5935-00-509-6194

Related Documents 5935-00-509-6194 5+ Documents (More...)

Restrictions 5935-00-509-6194

Import and Export 5935-00-509-6194

End Users 5935-00-509-6194

Approved Sources 5935-00-509-6194

Datasheet 5935-00-509-6194

Weapon Systems (WSDC) 5935-00-509-6194

DLA Procurement Analysis 5935-00-509-6194

Management Data 5935-00-509-6194

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5935-00-509-6194

Freight Information 5935-00-509-6194

Packaging Data 5935-00-509-6194

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5935-00-509-6194 5 Records

Contracting Technical Data File (CTDF) 5935-00-509-6194 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
