5935-00-504-0376
Plug-In Electronic Components Socket
5935005040376 005040376 ES1
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
November 2023
5
Marketplace 5935-00-504-0376
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-504-0376 5+ Documents (More...)
5935-00-504-0376 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-504-0376
Plug-In Electronic Components Socket,ES1 (Identification) 1/3 NSN 5935-00-504-0376 (Identification)
a day Upgrade your Account Upgrade 6685-01-573-3122Pressure Transmitter6685015733122 01573312211GM-ES1
Lampholder 6250999428483 999428483,24845,ES1 999428483,24845 https//www.nsnlookup.com /fsg-59/fsc-5935
(241)SF31399-ES1 Managed by Italy NSN Created on 11 Nov 2004 Data Last Changed January 2023 NATO 4210
Pencil Sharpener 7520218551273218551273,ES1 75/fsc-7520/ca https//www.nsnlookup.com /fsg-62/fsc-6250
999428483,24845,ES1 Lampholder 6250999428483 999428483,24845,ES1 to enable Pencil Sharpener 7520218551273218551273
,ES1 to enable JavaScript in your web browser . 7520-21 https//www.nsnlookup.com /fsg-42/fsc-4210/it
Pencil Sharpener 7520218551273218551273,ES1 75/fsc-7520/ca https//www.nsnlookup.com /fsg-62/fsc-6250
Lampholder 6250999428483 999428483,24845,ES1 Lampholder 6250999428483 https//www.nsnlookup.com /fsg-
Restrictions 5935-00-504-0376
5935-00-504-0376 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-504-0376
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-504-0376
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HDKE
- Germany (ZG01)
- Effective Date:
- 1 Jun 1996
Approved Sources 5935-00-504-0376
- Part Number
- Manufacturer
- Status
- ES1
- Manufacturer
- 14749 - Acopian Technical Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-00-504-0376
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

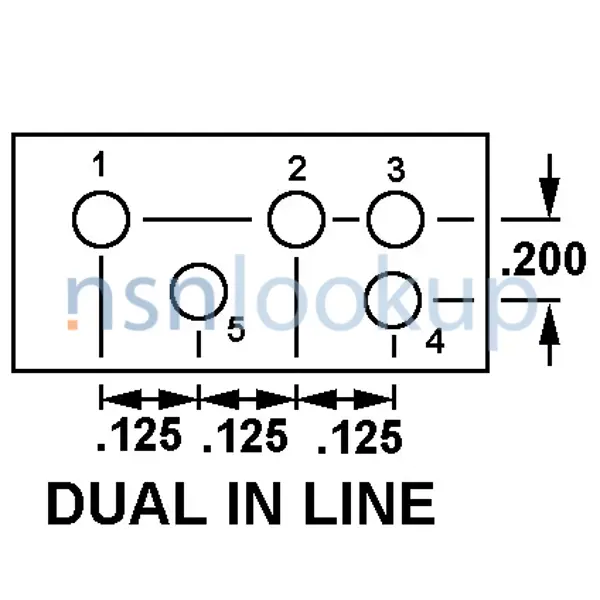

- Contact Position Arrangement Style [CRPY]
- Dual In Line
- Accommodated Contact Quantity [AFRL]
- 5
- Contact Material [AFRG]
- Any Acceptable
- Contact Surface Treatment [AFRH]
- Gold
- Body Style [AAQL]
- Rectangular
- Overall Length [ABHP]
- 2.580 Inches Nominal
- Overall Height [ABKW]
- 0.460 Inches Nominal
- Overall Width [ABMK]
- 2.300 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 5 Solder Well
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Hole Style [AEVB]
- Rectangular, W/Four Mounting Holes/Slots
- Mounting Hole Diameter [ABTB]
- 0.140 Inches Nominal
- Body Mounting Hole Accommodation Length [ADAJ]
- 2.580 Inches Nominal
- Body Mounting Hole Accommodation Width [ADAK]
- 2.300 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 2.170 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 1.800 Inches Nominal
- Polarization Type [AKWN]
- Contact Position
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.025 Gold Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
Weapon Systems (WSDC) 5935-00-504-0376
DLA Procurement Analysis 5935-00-504-0376
- Last Stock Position:
- 8 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5935-00-504-0376
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-504-0376
Freight Information 5935-00-504-0376
5935-00-504-0376 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-504-0376 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-504-0376 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-504-0376 is not classified as a special type of cargo when transported by water. 5935-00-504-0376 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-504-0376
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 2.6" H x 2.3" W x 0.5" L
- --
- --
- --
- Any Suitable Process
- 2.6" H x 2.3" W x 0.5" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
