5935-00-488-9997
Plug-In Electronic Components Socket
5935004889997 004889997 976343-1 SD18174
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
11
Marketplace 5935-00-488-9997
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-488-9997 3+ Documents (More...)
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 976343-1
Restrictions 5935-00-488-9997
5935-00-488-9997 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-488-9997
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-488-9997
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Supplementary Collaborators:
- KE
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG)
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- United States of America (ZZ)
Approved Sources 5935-00-488-9997
- Part Number
- Manufacturer
- Status
- SD18174
- Manufacturer
- 06776 - Robinson Nugent Inc (Obsolete)
- Original Design
- Original Design
- 976343-1
- 49956 - Raytheon Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 976343-1
- 3B150 - Raytheon Company (Active)
- Vendor Drawing
- Vendor Drawing
- SD18174
- 44256 - Wm W Nugent & Co Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-488-9997
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 4
- Body Material [AAFZ]
- Plastic And Fiber And Glass
- Body Style [AAQL]
- Pcb Mount
- Contact Material [AFRG]
- Beryllium Copper
- Contact Position Arrangement Style [CRPY]
- Rectangular
- Contact Surface Treatment [AFRH]
- Gold And Silver
- Mounting Method [AXGY]
- Terminal
- Mounting Type For Which Designed [BCNX]
- Printed Circuit
- Polarization Type [AKWN]
- Slot
- Precious Material And Location [PMLC]
- Contact Surfaces Gold And Contact Surfaces Silver
- Precious Material [PRMT]
- Gold And Silver
- Precious Material And Weight [PMWT]
- 0.020 Gold Grains, Troy And 0.020 Silver Grains, Troy
- Projection Length Above Mounting Surface [AKXD]
- 0.125 Inches Nominal
- Printed Circuit Board Hole Arrangement Style [AKWJ]

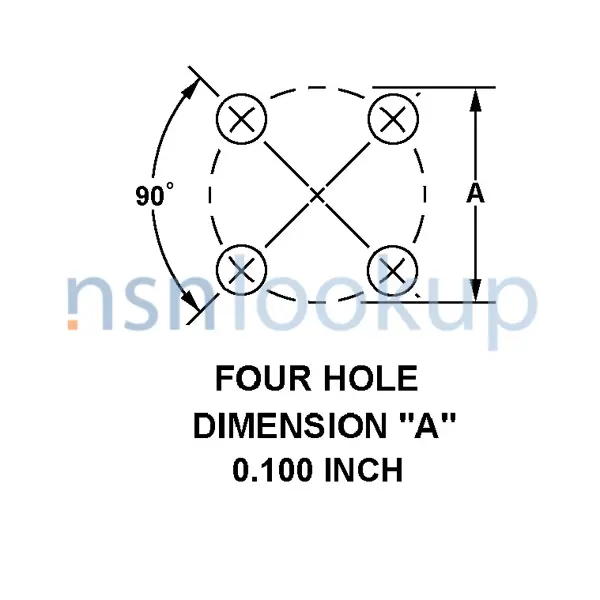

- Four Hole Dimension "A" 0.100 Inch
- Overall Diameter [ADAV]
- 0.281 Inches Nominal
- Overall Height [ABKW]
- 0.219 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 4 Pin
