5935-00-486-9049
Plug-In Electronic Components Socket
5935004869049 004869049 18821 8PC 9799-23-7 096-0061 78S8W0125 101-04-00-098 PC264 8PCB
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
24
Marketplace 5935-00-486-9049
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-486-9049 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-486-9049 (Identification) 2/3 NSN 5935-00-486-9049 (Identification
RQST NE Updated Every Day 5935-00-486-9049 RQST Updated Every Day 5935-00-486-9049 RQST NE Related
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 9799-23-7
SOCKET,PLUG-IN ELECTRONIC COMPONENTS RQST NS Request Quotation Subscribe to View Vendor Details... 18821
Request a Quotation from participating marketplace vendors Request Related Documents 6615-00-096-0061
//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-486-9049 Plug-In Electronic Components Socket,18821 Quotation
SOCKET,PLUG-IN ELECTRONIC COMPONENTS RQST NS Request Quotation Subscribe to View Vendor Details... 18821
Plug-In Electronic Components Socket,18821 Electronic Components Socket,18821 electrically https
Plug-In Electronic Components Socket,18821 Electronic Components Socket,18821 electrically https
Restrictions 5935-00-486-9049
5935-00-486-9049 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5935-00-486-9049
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-486-9049
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HDKE
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5935-00-486-9049
- Part Number
- Manufacturer
- Status
- 101-04-00-098
- Manufacturer
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Original Design
- Original Design
- 9799-23-7
- 72825 - Eby Group, Llc, The (Active)
- Secondary Buy
- Secondary Buy
- 096-0061
- 93742 - Drs Naval Power Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- 78S8W0125
- 77820 - Amphenol Corp (Active)
- Secondary Buy
- Secondary Buy
- 18821
- 73631 - Powers Holdings Inc (Active)
- Secondary Buy
- Secondary Buy
- 78S8W0125
- 02660 - Amphenol Corp Spectra-Strip/Itd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- PC264
- 92219 - Tattnall, County Of (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 8PCB
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 18821
- 54719 - Curtis Electro Devices Inc (Obsolete)
- Advisory Reference
- Advisory Reference
- 8PC
- 27660 - Instrumatics Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-486-9049
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Contact Position Arrangement Style [CRPY]
- Octal .687 Inch
- Accommodated Contact Quantity [AFRL]
- 8
- Contact Material [AFRG]
- Brass
- Contact Surface Treatment [AFRH]
- Silver
- Body Style [AAQL]
- Pcb Mount
- Terminal Length [ABJT]
- 0.250 Inches Nominal
- Overall Height [ABKW]
- 0.750 Inches Nominal
- Overall Diameter [ADAV]
- 1.062 Inches Nominal
- Projection Length Above Mounting Surface [AKXD]
- 0.500 Inches Nominal
- Body Material [AAFZ]
- Any Acceptable
- Terminal Type And Quantity [TTQY]
- 8 Tab, Solder Lug
- Mounting Type For Which Designed [BCNX]
- Printed Circuit
- Mounting Method [AXGY]
- Terminal
- Printed Circuit Board Hole Arrangement Style [AKWJ]

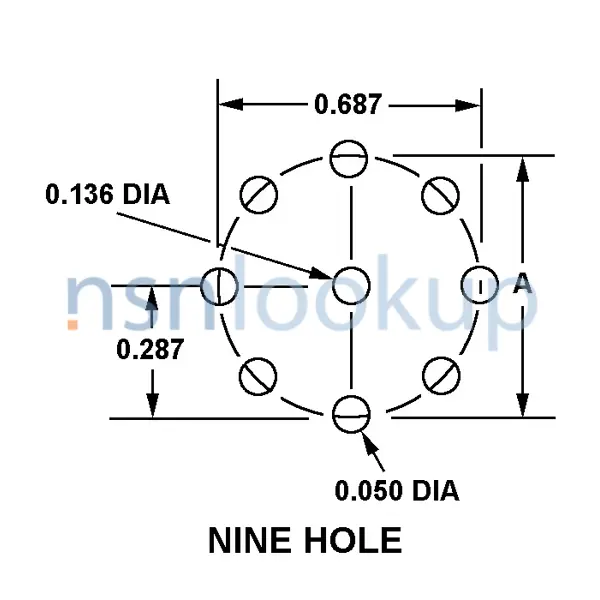

- Nine Hole
- Polarization Type [AKWN]
- Center Key Hole
- Specific Equipment Accommodated [AFJE]
- Electron Tube
- Fabrication Method [AARN]
- Molded
- Precious Material [PRMT]
- Silver
- Precious Material And Weight [PMWT]
- 0.008 Silver Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Silver
