5935-00-482-7682
Plug-In Electronic Components Socket
5935004827682 004827682 VB16-1AG43-22
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
2
Marketplace 5935-00-482-7682
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-482-7682 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5935-00-482-7682 RQST NE Updated Every Day 5935-00-482-7682 RQST
Updated Every Day 5935-00-482-7682 RQST NE Related Documents 5935-00-482-7682 1+ Documents ( More...
Restrictions 5935-00-482-7682
5935-00-482-7682 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-482-7682
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-482-7682
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Supplementary Collaborators:
- KE
- United States of America (ZZ)
Approved Sources 5935-00-482-7682
- Part Number
- Manufacturer
- Status
- VB16-1AG43-22
- Manufacturer
- 05574 - Cooper Interconnect, Inc. (Replaced)
- Original Design
- Original Design
- VB16-1AG43-22
- 99447 - Cooper Interconnect, Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-482-7682
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 16
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Length [ADAJ]
- 0.995 Inches Minimum And 1.005 Inches Maximum
- Body Mounting Hole Accommodation Width [ADAK]
- 0.540 Inches Minimum And 0.550 Inches Maximum
- Body Style [AAQL]
- Top Mount
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 1.395 Nominal Mils And 1.405 Nominal Centimeters
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 0.295 Inches Minimum And 0.305 Inches Maximum
- Contact Material [AFRG]
- Copper Alloy

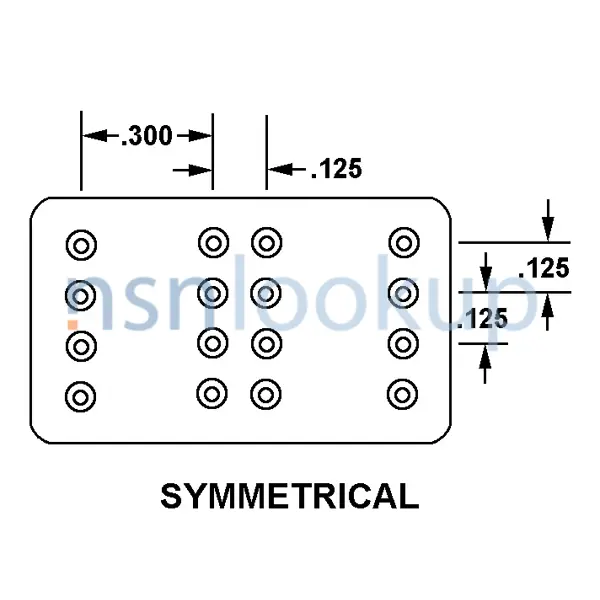

- Contact Position Arrangement Style [CRPY]
- Symmetrical
- Contact Surface Treatment [AFRH]
- Gold
- Mounting Hole Diameter [ABTB]
- 0.086 Nominal Mils
- Mounting Hole Style [AEVB]
- Rectangular, W/Four Mounting Holes/Slots
- Mounting Method [AXGY]
- Threaded Stud
- Mounting Type For Which Designed [BCNX]
- Chassis
- Nominal Thread Size [CQJX]
- 0.086 Inches
- Polarization Type [AKWN]
- Contact Position
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.016 Gold Grains, Troy
- Projection Length Above Mounting Surface [AKXD]
- 0.280 Nominal Inches
- Overall Height [ABKW]
- 0.350 Inches Minimum And 0.370 Inches Maximum
- Overall Length [ABHP]
- 1.690 Inches Minimum And 1.710 Inches Maximum
- Overall Width [ABMK]
- 0.540 Inches Minimum And 0.550 Inches Maximum
- Terminal Type And Quantity [TTQY]
- 16 Solder Well
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 56
- Thread Series Designator [THSD]
- Unc
DLA Procurement Analysis 5935-00-482-7682
Management Data 5935-00-482-7682
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-482-7682
Freight Information 5935-00-482-7682
5935-00-482-7682 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-482-7682 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-482-7682 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-482-7682 is not classified as a special type of cargo when transported by water. 5935-00-482-7682 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
