5935-00-481-2007
Electrical Connector Backshell
5935004812007 004812007 10280504 483805-1 DA44546
An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables.It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device.It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions. View more Electrical Connector Backshell
May 2023
10
Marketplace 5935-00-481-2007
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5935-00-481-2007 3+ Documents (More...)
DA44546 BACKSHELL,ELECTRICAL CONNECTOR 4 EA NS Request Quotation 5935-00-481-2007 BACKSHELL,ELECTRICAL
CONNECTOR RQST NS Request Quotation Updated Every Day 5935-00-481-2007 RQST NE Updated Every Day 5935
Electrical Connector Backshell 5935004812007 your Account Upgrade 5935-00-481-2007Electrical Connector
Backshell5935004812007 004812007 10280504 483805 Compression Helical Spring 5360006644741 009665038
10280504 483805 NumberManufacturerStatus10280504 18876 - Us Army Aviation And Missile Command (Active
https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-481-2007 Electrical Connector Backshell 5935004812007
Restrictions 5935-00-481-2007
5935-00-481-2007 is a Electrical Connector Backshell that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-481-2007
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-481-2007
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-481-2007
- Part Number
- Manufacturer
- Status
- 10280504
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- 483805-1
- 54X10 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- DA44546
- 71468 - Itt Cannon Llc (Active)
- Secondary Buy
- Secondary Buy
- 483805-1
- 3B150 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- 483805-1
- 49956 - Raytheon Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-481-2007
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Cable Opening Length [AGTX]
- 0.912 Inches Minimum And 0.943 Inches Maximum
- Cable Opening Quantity [AKRD]
- 1
- Cable Opening Width [AGTY]
- 0.291 Inches Minimum And 0.322 Inches Maximum
- Material [MATT]
- Steel
- Mounting Facility Type And Quantity [AXHR]
- 2 Threaded Hole
- Overall Height [ABKW]
- 1.860 Inches Maximum
- Overall Length [ABHP]
- 1.870 Inches Minimum And 1.890 Inches Maximum
- Overall Width [ABMK]
- 0.530 Inches Minimum And 0.554 Inches Maximum
- Style Designator [STYL]

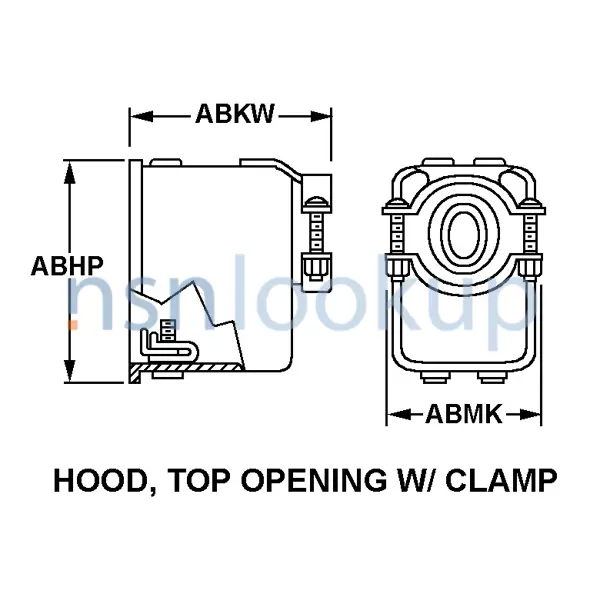

- Hood, Top Opening W/Clamp
- Surface Treatment [SFTT]
- Cadmium
- Thread Class [AAJD]
- 2B
DLA Procurement Analysis 5935-00-481-2007
Management Data 5935-00-481-2007
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-481-2007
Freight Information 5935-00-481-2007
5935-00-481-2007 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-481-2007 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-481-2007 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-481-2007 is not classified as a special type of cargo when transported by water. 5935-00-481-2007 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-481-2007
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5935-00-481-2007 1 Records
Contracting Technical Data File (CTDF) 5935-00-481-2007 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
