5935-00-471-4034
Plug-In Electronic Components Socket
5935004714034 004714034 LP5173C6 968538-1 LP5173CG
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
4
Marketplace 5935-00-471-4034
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-471-4034 2+ Documents (More...)
(Identification) 1/2 NSN 5935-00-471-4034 (Identification) 2/2 - - 1.
United States (US) 4. 5935-00-471-4034 Marketplace Restrictions Approved Sources Datasheet Management
Components Socket Account Upgrade 5935-00-471-4034Plug-In Electronic Components Socket5935004714034 004714034
LP5173C6 968538 Restrictions Approved Sources Datasheet Management https//www.nsnlookup.com /fsg-53/
Restrictions 5935-00-471-4034
5935-00-471-4034 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-471-4034
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-471-4034
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Supplementary Collaborators:
- KE
- United States of America (ZZ)
Approved Sources 5935-00-471-4034
- Part Number
- Manufacturer
- Status
- 968538-1
- Manufacturer
- 82577 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- LP5173CG
- 06776 - Robinson Nugent Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- LP5173C6
- 06776 - Robinson Nugent Inc (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-471-4034
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 3
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Diameter [ADAL]
- 0.276 Inches Minimum And 0.286 Inches Maximum

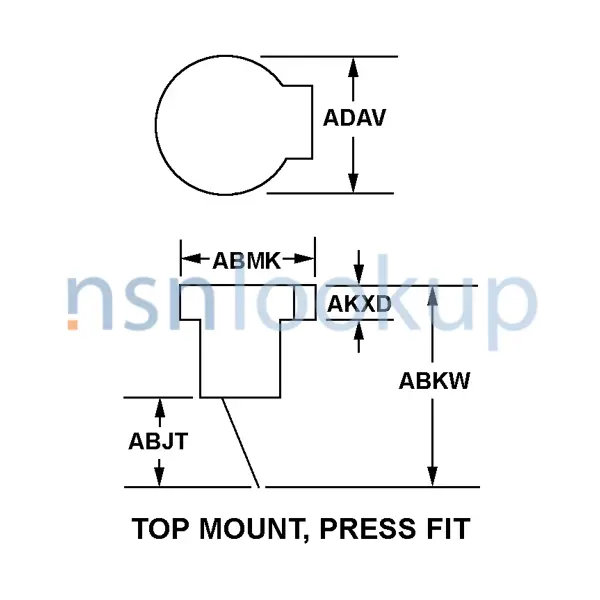

- Body Style [AAQL]
- Top Mount, Press Fit
- Contact Material [AFRG]
- Beryllium Copper
- Contact Surface Treatment [AFRH]
- Gold
- Mounting Hole Style [AEVB]
- Round, Body
- Mounting Method [AXGY]
- Press Fit
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Contact Position
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.015 Gold Grains, Troy
- Projection Length Above Mounting Surface [AKXD]
- 0.075 Inches Minimum And 0.085 Inches Maximum
- Overall Diameter [ADAV]
- 0.276 Inches Minimum And 0.286 Inches Maximum
- Overall Height [ABKW]
- 0.200 Inches Minimum And 0.220 Inches Maximum
- Overall Width [ABMK]
- 0.370 Inches Minimum And 0.380 Inches Maximum
- Terminal Length [ABJT]
- 0.480 Inches Minimum And 0.520 Inches Maximum
- Terminal Type And Quantity [TTQY]
- 3 Wire Lead
