5935-00-433-2452
Plug-In Electronic Components Socket
5935004332452 004332452 418354-1 M12883/39-01 8000D
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
13
Marketplace 5935-00-433-2452
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-433-2452 4+ Documents (More...)
(Identification) 1/3 NSN 5935-00-433-2452 (Identification) 2/3 NSN 5935-00-433-2452 (Identification
NE Updated Every Day 5935-00-433-2452 RQST Updated Every Day 5935-00-433-2452 RQST NE Related Documents
Plug-In Electronic Components Socket Day 5935-00-433-2452 RQST NE Related Documents https//www.nsnlookup.com
Day 5430-01-384-8711 RQST NE Related Documents https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-433-2452
Plug-In Electronic Components Socket Cable Assembly5995145297666 145297666598-4141-8000D https/
www.nsnlookup.com /fsg-59/fsc-5995/fr 5995-14-529- https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-433-2452
Plug-In Electronic Components Socket Assembly5995145297666 145297666598-4141-8000D https/ https
Restrictions 5935-00-433-2452
5935-00-433-2452 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-433-2452
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-433-2452
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-433-2452
- Part Number
- Manufacturer
- Status
- M12883/39-01
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- 418354-1
- 96214 - Raytheon Company (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 8000D
- 91506 - Augat Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-433-2452
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 2
- Body Material [AAFZ]
- Plastic
- Body Style [AAQL]

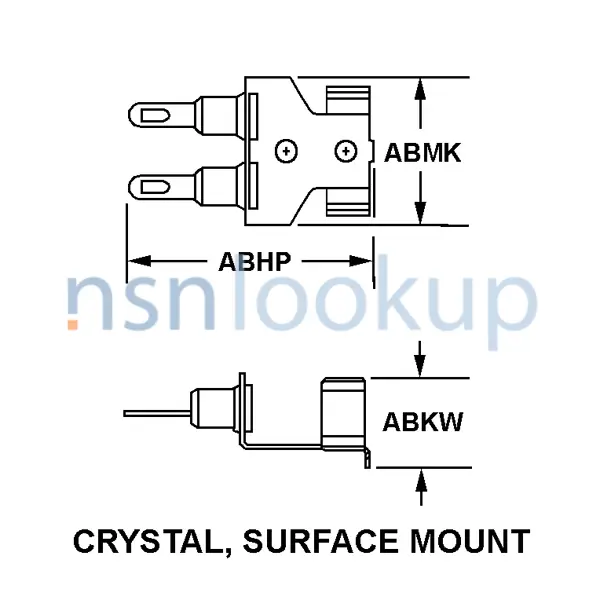

- Crystal, Surface Mount
- Center To Center Distance Between Inside Mounting Holes Along Length [AGVD]
- 0.300 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 1.000 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 0.486 Inches Nominal
- Contact Material [AFRG]
- Beryllium Copper
- Contact Position Arrangement Style [CRPY]
- In Line
- Contact Surface Treatment [AFRH]
- Gold
- Features Provided [CBBL]
- Component Retaining Device
- Mounting Hole Diameter [ABTB]
- 0.033 Inches Minimum
- Mounting Method [AXGY]
- Body Through Hole
- Mounting Hole Style [AEVB]
- Irregular
- Mounting Type For Which Designed [BCNX]
- Chassis
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.010 Gold Grains, Troy
- Overall Height [ABKW]
- 0.422 Inches Nominal
- Overall Length [ABHP]
- 1.200 Inches Nominal
- Overall Width [ABMK]
- 0.844 Inches Nominal
- Specific Equipment Accommodated [AFJE]
- Crystal
- Terminal Type And Quantity [TTQY]
- 2 Pin
Similar Supply Items to 5935-00-433-2452
Freight Information 5935-00-433-2452
5935-00-433-2452 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-433-2452 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5935-00-433-2452 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-433-2452 is not classified as a special type of cargo when transported by water. 5935-00-433-2452 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
