5935-00-409-9864
Plug-In Electronic Components Socket
5935004099864 004099864 247ASC0793-001 BRE VB16-1PE20-43
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
3
Marketplace 5935-00-409-9864
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5935-00-409-9864 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-409-9864 (Identification) 2/3 NSN 5935-00-409-9864 (Identification
COMPONENTS 1 EA NS Request Quotation Updated Every Day 5935-00-409-9864 RQST NE Updated Every Day 5935
-5428 RQST NE Related https//www.nsnlookup.com /fsg-59/fsc-5975/fr 5975-14-535-9986 Thermal Circuit Bre
Mechanical Puller 5120142385428142385428,BRE Day https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00
9986 Thermal Circuit Bre 5975145359986145359986 | https//www.nsnlookup.com /fsg-89/fsc-8905/us 8905-
00-139-8481Breaded Flaked And Formed Veal Steak8905001398481 001398481 VEAL STEAK FLAKED AND FORMED BRE
17 Dec 2012 6695-22-307-1248 https//www.nsnlookup.com /fsg-66/fsc-6695/dk 6695-22-600-9337 Main Oil Bre
Steak8905001398481 001398481 fsg-66/fsc-6695/dk 6695-22-600-9337 Main Oil Bre https Flaked And Formed
3-4CNBS292 PART 2-BRE3/4CNCX90416BS292 PT2 BRE 3-4-CN37A17012 A cylindrical device Request a Quotation
PT2 BRE 3-4-CN37A17012 A cylindrical device in which https//www.nsnlookup.com S8BS292 PT2-BRE 3-4CNBS292
Restrictions 5935-00-409-9864
5935-00-409-9864 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains a combination of two or more precious metals.
Import and Export 5935-00-409-9864
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-409-9864
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-409-9864
- Part Number
- Manufacturer
- Status
- 247ASC0793-001
- Manufacturer
- 30003 - Naval Air Systems Command Managed (Active)
- Primary Buy
- Primary Buy
- VB16-1PE20-43
- 99447 - Cooper Interconnect, Inc. (Active)
- Secondary Buy
- Secondary Buy
- BRE
- 29336 - Buel Electronic Connectors Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- VB16-1PE20-43
- 05574 - Cooper Interconnect, Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-409-9864
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 16
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Length [ADAJ]
- 1.075 Inches Nominal
- Body Mounting Hole Accommodation Width [ADAK]
- 1.000 Inches Nominal
- Body Style [AAQL]
- Top Mount
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 0.500 Inches Nominal
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 1.406 Inches Nominal
- Contact Material [AFRG]
- Beryllium Copper
- Contact Maximum Current Rating In Amps [AFRC]
- 10.0
- Contact Position Arrangement Style [CRPY]
- Quadruple In Line
- Contact Surface Treatment [AFRH]
- Gold And Silver
- Furnished Items And Quantity [TMQY]
- 2 Screw And 4 Nut And 8 Lock Washer And 4 Flat Washer And 4 Stud
- Mounting Hole Diameter [ABTB]
- 0.150 Inches Nominal
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Hole Style [AEVB]
- Rectangular, W/Four Mounting Holes/Slots
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]

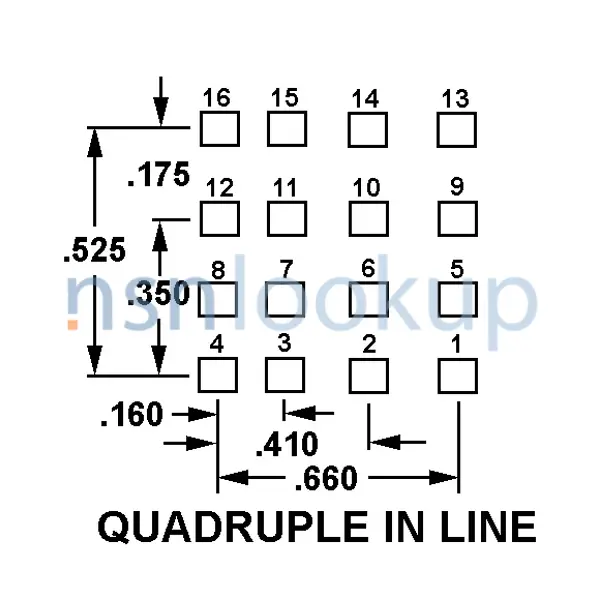

- Contact Position
- Precious Material And Location [PMLC]
- Contact Surface Gold And Contact Surface Silver
- Precious Material And Weight [PMWT]
- 0.016 Gold Grains, Troy And 0.016 Silver Grains, Troy
- Precious Material [PRMT]
- Gold And Silver
- Projection Length Above Mounting Surface [AKXD]
- 0.050 Inches Minimum And 0.070 Inches Maximum
- Overall Height [ABKW]
- 0.530 Inches Nominal
- Overall Length [ABHP]
- 1.710 Inches Minimum And 1.730 Inches Maximum
- Overall Width [ABMK]
- 1.000 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 16 Tab, Solder Lug
DLA Procurement Analysis 5935-00-409-9864
Management Data 5935-00-409-9864
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
