5935-00-404-2088

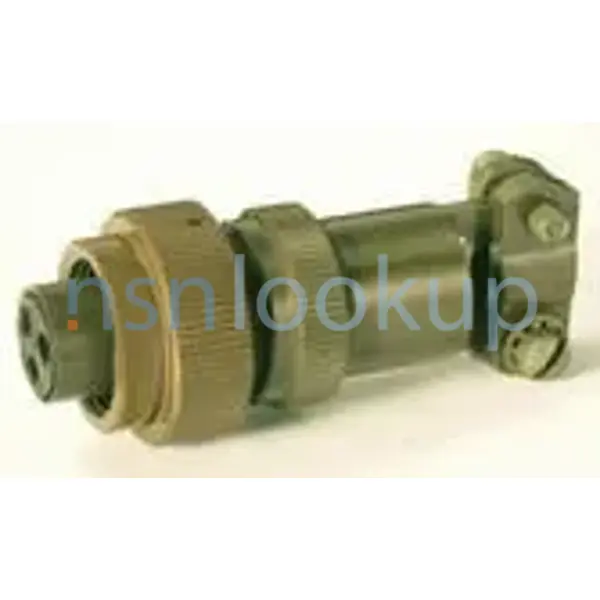

Electrical Plug Connector
5935004042088 004042088 MIL-C-5015 MS3106F28-17P
An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Plug Connector
May 2023
31
Marketplace 5935-00-404-2088
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5935-00-404-2088 5+ Documents (More...)
MS3106F28-17P CONNECTOR,PLUG,ELECTRICAL RQST NS Request Quotation MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL
... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-404-2088 Electrical Plug Connector 5935004042088
MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL RQST NS Request Quotation Subscribe to View Vendor Details...
MIL-C-5015 CONNECTOR,PLUG,ELECTRICAL 3 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5935-00-404-2088
5935-00-404-2088 is a Electrical Plug Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-404-2088
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-404-2088
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5935-00-404-2088
- Part Number
- Manufacturer
- Status
- MS3106F28-17P
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-C-5015
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5935-00-404-2088
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Body Length [ADAQ]
- 3.031 Inches Maximum
- Cable Entrance Diameter [AFQJ]
- 0.922 Inches Minimum
- Connector Locking Method [AFRV]
- Internally Threaded Coupling Ring
- Connector Cable Strain Relief Method [AFRW]
- Cable Clamp
- Contact Maximum Ac Voltage Rating In Volts [AFRD]
- 1750.0 Single Mating End 1St Contact Grouping
- Contact Maximum Ac Voltage Rating In Volts [AFRD]
- 500.0 Single Mating End 3Rd Contact Grouping
- Contact Maximum Ac Voltage Rating In Volts [AFRD]
- 900.0 Single Mating End 2Nd Contact Grouping
- Contact Maximum Current Rating In Amps [AFRC]
- 22.0 Single Mating End All Contact Groupings
- Contact Removability [AFQZ]
- Nonremovable Single Mating End All Contact Groupings
- Contact Maximum Dc Voltage Rating In Volts [AFRE]
- 1250.0 Single Mating End 2Nd Contact Grouping
- Contact Maximum Dc Voltage Rating In Volts [AFRE]
- 2450.0 Single Mating End 1St Contact Grouping
- Contact Maximum Dc Voltage Rating In Volts [AFRE]
- 700.0 Single Mating End 3Rd Contact Grouping
- Contact Position Arrangement Style [AFQX]
- 28-17 Single Mating End
- Contact Surface Treatment Document And Classification [CRBJ]
- Mil-G-45204,Type 1,Grade B Mil Spec 1St Treatment Response Single Mating End All Contact Groupings And Qq-N-290,Class 1,Grade B Fed Spec 2Nd Treatment Response Single Mating End All Contact Groupings
- Contact Surface Treatment [CQYH]
- Gold Single Mating End All Contact Groupings And Nickel Single Mating End All Contact Groupings
- Environmental Protection [ADZC]
- Moisture Proof And Salt Water Resistant And Vibration Proof
- Body Style [AAQL]
- Straight Shape, Internal Coupling W/Strain Relief
- Mating End Quantity [AFQW]
- 1
- Nominal Thread Length [AKMG]
- 0.625 Inches
- Nominal Thread Size [CQJX]
- 1.750 Inches
- Included Contact Quantity [CXCG]
- 3 Single Mating End 2Nd Contact Grouping
- Included Contact Type [CXCL]
- Round Pin Single Mating End All Contact Groupings
- Included Contact Quantity [CXCG]
- 1 Single Mating End 1St Contact Grouping
- Included Contact Quantity [CXCG]
- 11 Single Mating End 3Rd Contact Grouping
- Insert Material [CQZG]
- Rubber Single Mating End
- Insert Position In Deg [AFRP]
- 0.0
- Polarization Method [AFRN]
- Keyway Or Multiple Keyway
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material And Weight [PMWT]
- 0.015 Gold Grains, Troy
- Precious Material [PRMT]
- Gold
- Shell Material [CSPT]
- Aluminum Alloy
- Shell Surface Treatment Document And Classification [CTBC]
- Qq-P-416,Type 2,Class 3 Fed Spec All Treatment Responses
- Shell Surface Treatment [CSWM]
- Cadmium And Chromate
- Shell Type [AFRT]
- Solid
- Overall Diameter [ADAV]
- 2.170 Inches Maximum
- Specification/Standard Data [ZZZK]
- 96906-Ms3106 Government Standard
- Terminal Location [CQTM]
- Back Single Mating End All Contact Groupings
- Terminal Type [CSCF]
- Solder Well Single Mating End All Contact Groupings
- Test Data Document [TEST]
- 81349-Mil-C-5015 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2B
- Thread Quantity Per Inch [CMLP]
- 18
- Thread Series Designator [THSD]
- Uns
- Threaded Device Type [AFQR]
- Coupling Facility
