5935-00-370-2318
Plug-In Electronic Components Socket
5935003702318 003702318 CL1-5099-163 451116-031 3020237-002 22-0036-0002
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
November 2023
5
Marketplace 5935-00-370-2318
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-370-2318 3+ Documents (More...)
(Identification) 1/3 NSN 5935-00-370-2318 (Identification) 2/3 NSN 5935-00-370-2318 (Identification
Day 5935-00-370-2318 RQST NE Updated Every Day 5935-00-370-2318 RQST Updated Every Day 5935-00-370-2318
a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 22-0036-0002
Plug-In Electronic Components Socket 370-2318 RQST Updated Every Day 5935-00-370-2318 https//www.nsnlookup.com
/fsg-48/fsc-4810/fr
Plug-In Electronic Components Socket 2318Plug-In Electronic Components Socket5935003702318 003702318
CL1-5099-163 451116-031 3020237-002 22-0036-0002 5935/us 5935-00-370-2318 Plug-In Electronic Components
Restrictions 5935-00-370-2318
5935-00-370-2318 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-370-2318
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-370-2318
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTJVHSHD
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Jul 1993
Approved Sources 5935-00-370-2318
- Part Number
- Manufacturer
- Status
- CL1-5099-163
- Manufacturer
- 30528 - Hollingsead International, Llc (Active)
- Primary Buy
- Primary Buy
- 451116-031
- 03743 - Egs Electrical Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 3020237-002
- 10001 - Navair And Navsea Managed Original (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 22-0036-0002
- 50477 - Edco Electronics (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-370-2318
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 14
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Length [ADAJ]
- 0.900 Inches Minimum And 0.940 Inches Maximum
- Body Mounting Hole Accommodation Width [ADAK]
- 0.910 Inches Minimum And 0.930 Inches Maximum
- Body Style [AAQL]
- Top Or Bottom Mount W/Molded Saddle And Bushing
- Center To Center Distance Between Outside Mounting Holes Along Length [AGVA]
- 1.401 Inches Minimum And 1.411 Inches Maximum
- Center To Center Distance Between Outside Mounting Holes Along Width [AGVB]
- 0.620 Inches Minimum And 0.630 Inches Maximum
- Contact Material [AFRG]
- Copper Alloy

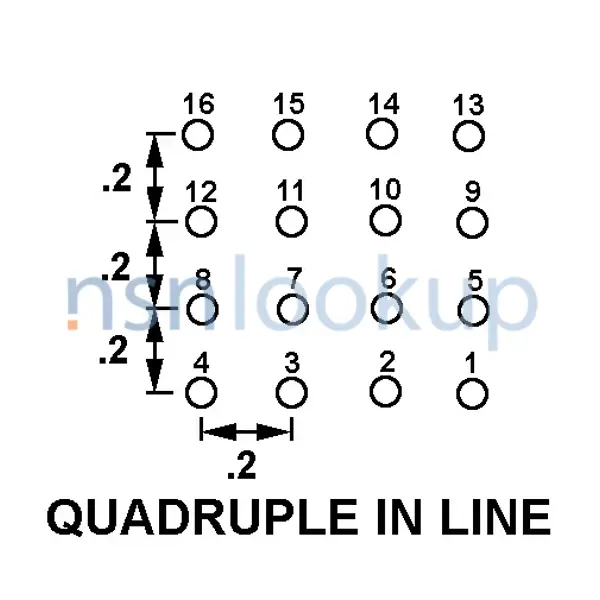

- Contact Position Arrangement Style [CRPY]
- Quadruple In Line
- Contact Surface Treatment [AFRH]
- Gold
- Furnished Items And Quantity [TMQY]
- 3 Spacer And 3 Nut And 3 Stud
- Missing Contact Designation [AKWF]
- 6Th Contact Position And 10Th Contact Position
- Mounting Hole Diameter [ABTB]
- 0.142 Inches Minimum And 0.152 Inches Maximum
- Mounting Method [AXGY]
- Threaded Stud
- Mounting Hole Style [AEVB]
- Rectangular, W/Three Mounting Holes/Slots
- Mounting Type For Which Designed [BCNX]
- Chassis
- Nominal Thread Size [CQJX]
- 0.138 Inches
- Polarization Type [AKWN]
- Contact Position
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material And Weight [PMWT]
- 0.014 Gold Grains, Troy
- Precious Material [PRMT]
- Gold
- Projection Length Above Mounting Surface [AKXD]
- 0.215 Inches Minimum And 0.225 Inches Maximum
- Overall Height [ABKW]
- 0.970 Inches Nominal
- Overall Length [ABHP]
- 1.700 Inches Minimum And 1.720 Inches Maximum
- Overall Width [ABMK]
- 0.990 Inches Minimum And 1.010 Inches Maximum
- Terminal Type And Quantity [TTQY]
- 14 Tab, Solder Lug
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2A
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unc
