5935-00-326-2201
Plug-In Electronic Components Socket
5935003262201 003262201 9727-92 A2128
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
8
Marketplace 5935-00-326-2201
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-326-2201 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-326-2201 (Identification) 2/3 NSN 5935-00-326-2201 (Identification
... 9727-92 SOCKET,PLUG-IN ELECTRONIC COMPONENTS RQST NS Request Quotation Updated Every Day 5935-00-
A2128 DISK,CLUTCH,NONVEHICULAR 2 EA NS Request Quotation Updated Every Day 3010-00-501-7094 RQST NE
/fsg-30/fsc-3010/us 3010-00-501-7094 Nonvehicular Clutch Disk 3010005017094,A2128 a day Upgrade your
A2128 DISK,CLUTCH,NONVEHICULAR 2 EA NS Request Quotation Updated Every Day 3010-00-501-7094 RQST NE
/fsg-30/fsc-3010/us 3010-00-501-7094 Nonvehicular Clutch Disk 3010005017094,A2128 a day Upgrade your
A2128 A solid circular disk of wire-woven lining material or ceramic and metal substance and the like
//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-326-2201 Plug-In Electronic Components Socket Account
/fsg-31/fsc-3120/fr
//www.nsnlookup.com /fsg-31/fsc-3120/fr 3120-14-543-2426 Sleeve Bushing 3120145432426145432426 ASN-A2128
enable JavaScript in your web browser . 3120-14-543-2426Sleeve Bushing3120145432426 145432426 ASN-A2128
Restrictions 5935-00-326-2201
5935-00-326-2201 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5935-00-326-2201
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-326-2201
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-326-2201
- Part Number
- Manufacturer
- Status
- 9727-92
- Manufacturer
- 72825 - Eby Group, Llc, The (Active)
- Primary Buy
- Primary Buy
- A2128
- 81535 - Aeronautical Communications (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-326-2201
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 7
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Diameter [ADAL]
- 0.615 Inches Nominal
- Body Style [AAQL]
- Top Mount W/Metal Saddle And Shield Base
- Contact Material [AFRG]
- Beryllium Copper

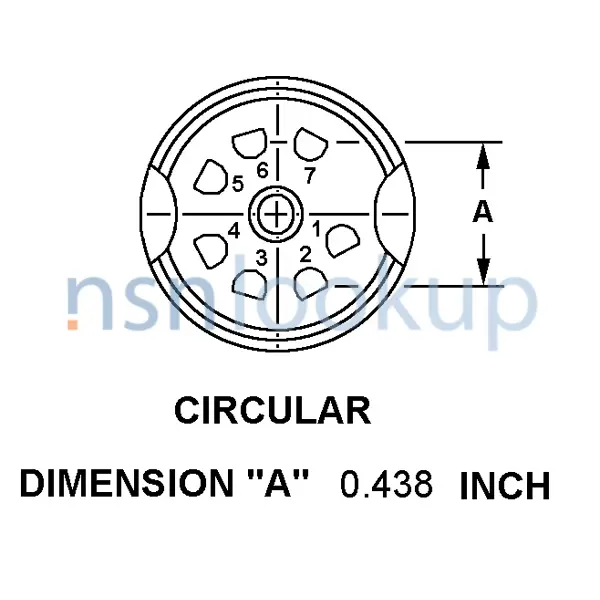

- Contact Position Arrangement Style [CRPY]
- Circular
- Contact Surface Treatment [AFRH]
- Silver
- Distance Between Mounting Facility Centers [AEJN]
- 0.875 Inches Nominal
- Features Provided [CBBL]
- Center Shield
- Ground Terminal Type And Quantity [CRXR]
- 4 Tab, Solder Lug
- Mounting Hole Diameter [ABTB]
- 0.125 Nominal Inches
- Mounting Method [AXGY]
- Saddle
- Mounting Hole Style [AEVB]
- Round, W/Two Mounting Holes
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Contact Shape
- Projection Length Below Mounting Surface [AKXC]
- 0.328 Inches Nominal
- Overall Height [ABKW]
- 0.688 Inches Nominal
- Overall Length [ABHP]
- 1.094 Inches Nominal
- Overall Width [ABMK]
- 0.797 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 7 Tab, Solder Lug
Similar Supply Items to 5935-00-326-2201
Freight Information 5935-00-326-2201
5935-00-326-2201 has freight characteristics.. 5935-00-326-2201 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
