5935-00-323-0294
Telephone Plug
5935003230294 003230294 MIL-DTL-642/6 PJ291 410 M642/6-1 MILP642-6
A concentric type electrical fitting consisting of two or more conductors on a common shank. The contacts on two or three conductor plugs are termed sleeve, tip, or ring. It includes multiple shank plugs of this type. Excludes PLUG, TIP. View more Telephone Plug
Managed by United States
NSN Created on 1 Sep 1971
Data Last Changed
August 2023
August 2023
NATO Update Count
21
21
NATO Data Quality
Marketplace 5935-00-323-0294
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Updated Every Day 5935-00-323-0294 RQST NE
Updated Every Day 5935-00-323-0294 RQST
Updated Every Day 5935-00-323-0294 RQST NE
Related Documents 5935-00-323-0294 4+ Documents (More...)
https//www.nsnlookup.com
/fsg-59/fsc-5935/us
/fsg-59/fsc-5935/us
5935-00-323-0294 Telephone Plug 5935003230294 003230294
MIL-DTL-642/6 PJ291 410 M642/6-1 MILP642-6 A concentric type electrical fitting consisting of two or
M642/6-1 PLUG,TELEPHONE 1 EA NS Request Quotation 410 PLUG,TELEPHONE 10 EA NS Request Quotation Subscribe
PJ291 PLUG,TELEPHONE 1 EA NS Request Quotation 410 PLUG,TELEPHONE 2 EA NS Request Quotation PJ-291 PLUG
M642/6-1 PLUG,TELEPHONE 1 EA NS Request Quotation 410 PLUG,TELEPHONE 10 EA NS Request Quotation Subscribe
PJ291 PLUG,TELEPHONE 1 EA NS Request Quotation 410 PLUG,TELEPHONE 2 EA NS Request Quotation PJ-291 PLUG
5935001924778001924778 your Account Upgrade 4660Telephone Plug5935008474660 008474660 MIL-DTL-642/2 483 003230294
MIL-DTL-642/6 PJ291 410 M642/6-1 MILP642 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-323-0294
Telephone Plug 5935003230294 003230294 Account Upgrade 5935-00-323-0294Telephone Plug5935003230294 003230294
MIL-DTL-642/6 PJ291 410 M642/6-1 MILP642 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-323-0294
Telephone Plug 5935003230294 003230294 Account Upgrade 5935-00-323-0294Telephone Plug5935003230294 003230294
https//www.nsnlookup.com
/fsg-59/fsc-5935/us
/fsg-59/fsc-5935/us
5935-00-192-4778 Telephone Plug 5935001924778 001924778
001924778MIL-DTL-642/8M642/8-1MILP642 -4660Telephone Plug5935008474660 008474660 MIL-DTL-642/2 483 003230294
MIL-DTL-642/6 PJ291 410 M642/6-1 MILP642 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935 https//www.nsnlookup.com
www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-192-4778 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-323-0294
MIL-DTL-642/6 PJ291 410 M642/6-1 MILP642 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935 https//www.nsnlookup.com
www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-192-4778 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-323-0294
Restrictions 5935-00-323-0294
5935-00-323-0294 is a Telephone Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-323-0294
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-323-0294
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-323-0294
- Part Number
- Manufacturer
- Status
- M642/6-1
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-642/6
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- PJ291
- 80063 - Us Army Communications & Electronics (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 410
- 82389 - Switchcraft Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- PJ291
- 91836 - Winchester Interconnect Corporation (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MILP642-6
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-323-0294
- Characteristic
- Specifications
- FIIG
- Specifications
- A03400
- Electrical Insulation Feature [AALV]
- Insulated Completely
- Body Height [ADAU]
- 0.516 Inches Minimum And 0.546 Inches Maximum
- Body Length [ADAQ]
- 1.307 Inches Minimum And 1.327 Inches Maximum

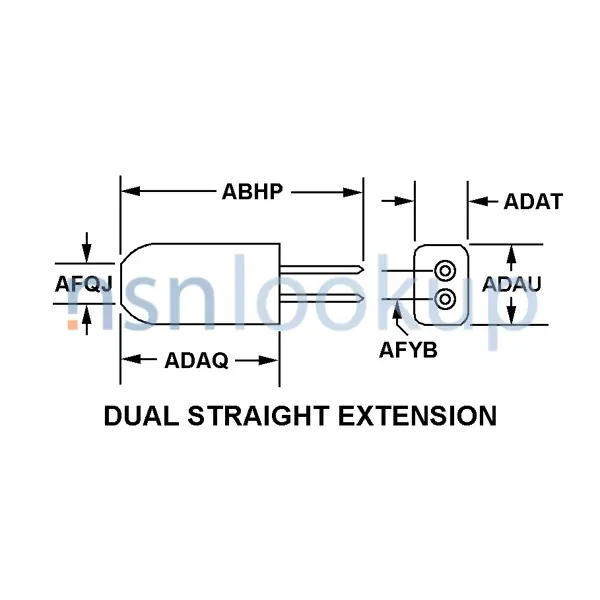

- Body Style [AAQL]
- Dual Straight Extension
- Cable Entrance Diameter [AFQJ]
- 0.049 Inches Minimum And 0.069 Inches Maximum
- Center To Center Distance Between Fingers [AFYB]
- 0.208 Inches Minimum And 0.228 Inches Maximum
- Finger Diameter [AFXX]
- 0.078 Inches Minimum And 0.080 Inches Maximum All Fingers
- Finger Length [AFXW]
- 0.298 Inches Minimum And 0.318 Inches Maximum All Fingers
- Finger Type [AFXQ]
- Two Conductor, Slender Round Tip All Fingers
- Identification Code Color [AAPC]
- Black
- Material [MATT]
- Plastic Insulator
- Overall Length [ABHP]
- 1.615 Inches Minimum And 1.635 Inches Maximum
- Specification/Standard Data [ZZZK]
- 81349-Mil-P-642 Government Specification
- Terminal Type [CSCF]
- Solder Well
- Test Data Document [TEST]
- 81349-Mil-P-642 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
DLA Procurement Analysis 5935-00-323-0294
Management Data 5935-00-323-0294
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 5935-00-323-0294
Freight Information 5935-00-323-0294
5935-00-323-0294 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063300. A Sub NMFC of Z. It has a NMFC Description of TELEPHONE TELEPHONE PART ARTICLE. 5935-00-323-0294 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35290 which rates the freight between FCL and LCL. 5935-00-323-0294 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 774 for ocean manifesting and military sealift. 5935-00-323-0294 is not classified as a special type of cargo when transported by water. 5935-00-323-0294 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-323-0294
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5935-00-323-0294 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
