5935-00-295-6403

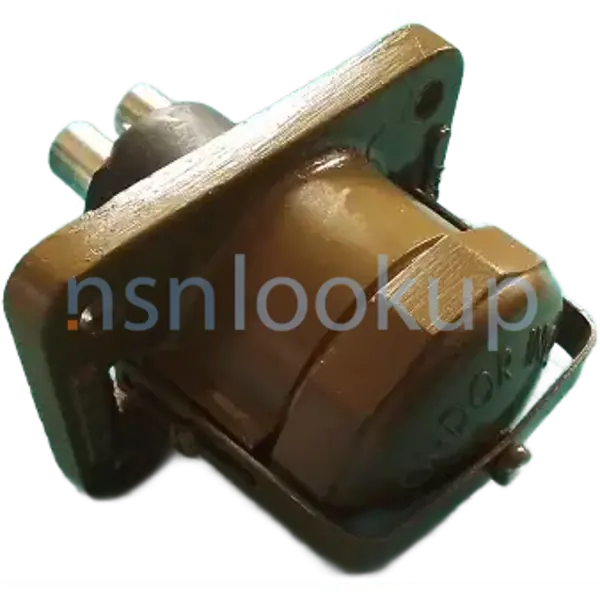

Electrical Receptacle Connector

5935002956403 002956403 NM56646 10-40-736-24 C7321299 MS75058-1 60-040736-024 T321299CL XH5285 10-040736-024 21800 18880 SVTG29 0109-0088 30860-40736 338NM56646 TVA9999-2-3-054 13208E5819-3 11054 5291619 D5147G3 D5147G5 S9715 50-40736-24C7321 3040-M-246-1-001 11550P11 1268977

An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
February 2024

NATO Update Count
94

NATO Data Quality

5935-00-295-6403 CONNECTOR,RECEPTACLE,ELECTRICAL 5935002956403 002956403 1/2 — 5935-00-295-6403 Photo 1/2

AAQL Style 24K for 5935-00-295-6403 2/2 — NSN 5935-00-295-6403 (Identification) 2/2

Marketplace 5935-00-295-6403

Need Help?
Request a Quotation from participating marketplace vendors

FinditParts

517 Milton Industries 517 - Extended Reach Tire Inflator Gauge STK NE $163.66 Distributor Buy Now

Subscribe to View Vendor Details...

11054 CONNECTOR,RECEPTACLE,ELECTRICAL 1 EA NS

Subscribe to View Vendor Details...

517 CONNECTOR,RECEPTACLE,ELECTRICAL 501 EA NS

52415 CONNECTOR,RECEPTACLE,ELECTRICAL 1 EA NS

Subscribe to View Vendor Details...

517 CONNECTOR,RECEPTACLE,ELECTRICAL 3 EA NS

52415 CONNECTOR,RECEPTACLE,ELECTRICAL 6 EA NS

Subscribe to View Vendor Details...

5935-00-295-6403 CONNECTOR,RECEPTACLE,ELECTRICAL 2 EA NS

Subscribe to View Vendor Details...

517. CONNECTOR,RECEPTACLE,ELECTRICAL 1 EA NS

Subscribe to View Vendor Details...

7321299 CONNECTOR,RECEPTACLE,ELECTRICAL 1 EA NS

10-040736-024 CONNECTOR,RECEPTACLE,ELECTRICAL 100 EA NS

5935-00-295-6403 CONNECTOR,RECEPTACLE,ELECTRICAL 1 EA NS

Subscribe to View Vendor Details...

517 CONNECTOR,RECEPTACLE,ELECTRICAL 70 EA NS

21800 CONNECTOR,RECEPTACLE,ELECTRICAL 2 EA NS

Subscribe to View Vendor Details...

7321299 CONNECTOR,RECEPTACLE,ELECTRICAL 9 EA NS

5935-00-295-6403 CONNECTOR,RECEPTACLE,ELECTRICAL 7 EA NS

Subscribe to View Vendor Details...

517 CONNECTOR,RECEPTACLE,ELECTRICAL 1055 EA NS

Subscribe to View Vendor Details...

MS75058-1 CONNECTOR,RECEPTACLE,ELECTRICAL RQST NS

Subscribe to View Vendor Details...

MS75058-1MILITARYSTAOR= CONNECTOR,RECEPTACLE,ELECTRICAL RQST NS

Subscribe to View Vendor Details...

7321299 CONNECTOR,RECEPTACLE,ELECTRICAL 6 EA NS

Subscribe to View Vendor Details...

21800 CONNECTOR,RECEPTACLE,ELECTRICAL 10 EA NS

Subscribe to View Vendor Details...

5935-00-295-6403 RECEPTACLE W/O CABLE 3 EA NS

Subscribe to View Vendor Details...

5241-5 CONNECTOR,RECEPTACLE,ELECTRICAL 3 EA NS

Subscribe to View Vendor Details...

517 CONNECTOR,RECEPTACLE,ELECTRICAL 2 EA NS

Subscribe to View Vendor Details...

7321299 CONNECTOR,RECEPTACLE,ELECTRICAL 3 EA NS

Subscribe to View Vendor Details...

7321299 CONNECTOR,RECEPTACLE,ELECTRICAL 1 EA NS

Subscribe to View Vendor Details...

1549159 CONNECTOR,RECEPTACLE,ELECTRICAL 3 EA NS

002956403.5935 CONNECTOR,RECEPTACLE,ELECTRICAL 12 EA NS

5935-00-295-6403 RQST NE

Updated Every Day

5935-00-295-6403 RQST

Updated Every Day

5935-00-295-6403 RQST NE

Restrictions 5935-00-295-6403

5935-00-295-6403 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.

Import and Export 5935-00-295-6403

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5935-00-295-6403

US Army (A918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A196
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC C IMC Z IMCACTY CD

US Air Force (FXGX)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXTX; AMC 1 AMSC C IMC Z IMCACTY SX

US Marine Corps (MC49)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC13; AMC 1 AMSC C IMC Z IMCACTY PA

US Navy (N9BN)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIND
Supplementary Collaborators:: GTHD; AMC 1 AMSC C IMC Z IMCACTY GH

MOE Rule:: S911
Effective Date:: 1 Apr 2006
Former MOE Rule:: S007; AMC 1 AMSC C IMC Z IMCACTY XN

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 Jun 2001

Brazil (YA01)
Effective Date:: 1 Jan 2002

Spain (YB01)
Effective Date:: 1 Apr 1991

Argentina (YF01)
Effective Date:: 1 Nov 2015

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Mar 1997

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

Approved Sources 5935-00-295-6403

Part Number
Manufacturer
Status
7321299: 19207 - U S Army Tank Automotive Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 1
NM56646: K3743 - Bae Systems Global Combat Systems (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
10-40-736-24: 50309 - John Reiner & Co. Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
C7321299: 75377 - Kurz & Root Generator Company, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
MS75058-1: 96906 - Military Standards (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
60-040736-024: 77820 - Amphenol Corp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
T321299CL: 55972 - Honeywell Intl Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
XH5285: 00642 - Heale Manufacturing Co Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
10-040736-024: 77820 - Amphenol Corp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
21800: 15434 - Cummins Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
18880: H0099 - Koninklyke Landmacht Dmkl, (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
SVTG29: H0711 - Koninklyke Landmacht Dmkl-Mva 3 (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
0109-0088: 93742 - Drs Naval Power Systems Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
5293029: 24617 - General Motors Corp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC X
30860-40736: 58250 - Ballantyne Of Omaha Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC X
338NM56646: K3743 - Bae Systems Global Combat Systems (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
TVA9999-2-3-054: H0711 - Koninklyke Landmacht Dmkl-Mva 3 (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
13208E5819-3: 81336 - Chief Of Engineers Dept Of Army (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
30860-40736: 81336 - Chief Of Engineers Dept Of Army (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
11054: 93742 - Drs Naval Power Systems Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
5291619: 24617 - General Motors Corp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC X
D5147G3: 46522 - Dcm Manufacturing, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC X
D5147G5: 46522 - Dcm Manufacturing, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC X
5291619: 72582 - Rolls-Royce Solutions America Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC X
S9715: 80072 - H20 Tank Inc U S Motors Div (Active); Secondary Buy; RNCC 5 RNVC 2 DAC X
50-40736-24C7321: 81381 - Stewart & Stevenson Power Products (Active); Secondary Buy; RNCC 5 RNVC 2 DAC X
13208E5819-3: 97403 - Cecom Lr Center (Active); Secondary Buy; RNCC 5 RNVC 2 DAC X
3040-M-246-1-001: 38955 - Ge Water & Process Technologies (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
11550P11: 27618 - Taylor Machine Works Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC X
7321299: 5A910 - Elc Industries Corp. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
7321299: 61090 - Gateway Cable Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
1268977: 12204 - Chrysler Realty Company Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
5793070048: G2780 - Mengia S.A. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
52415: 81381 - Stewart & Stevenson Power Products (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
323-159: 44940 - Cummins Power Generation Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5293029: 23862 - Military Vehicles Opn General Motors (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
A282-704-5: 50870 - Arnold A Semler Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
JHP49-056: 02032 - Hollingsworth John R Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
LT1-466: 03677 - Anthony York Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
856.7409: H7701 - Cargotec Holding Netherlands B.V. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
5935002956403: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
517: 53335 - Universal Logistics Corp Clark Div (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
1090701: 16528 - Altek Systems Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
JHP99-277: 02032 - Hollingsworth John R Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
HF2408: 28835 - Hobart Bros Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
WHT7000: H0050 - Fabriek Voor Auto- En (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
7321299: K0690 - Itt Industries Cannon Veam (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
17-00250: 63734 - Kaitlin Corp (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
EE313: 77260 - Pierce Co Inc The Sub Of Avis (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
0305043: H0001 - Daf Trucks N.V. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
45883: 16004 - Davey Compressor Co Div Of Keco (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
1268977: 93334 - Atwood Fence Co Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
137736: H0560 - Hcs Technology Nv (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
5935002956403: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
7321299: T0720 - Fnss Savunma Sistemleri Anonim (Active); NATO Reproduction; RNCC 8 RNVC 2 DAC 6
7321299: K0316 - Itt Industries Limited, Itt Cannon (Active); Advisory Reference; RNCC C RNVC 1 DAC 2
EE313: 0CSK6 - Winco, Inc. (Obsolete); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 5935-00-295-6403

Characteristic
Specifications
FIIG: A039B0
Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]: 1.875 Inches Nominal
Connector Locking Method [AFRV]: Externally Threaded Shell
Contact Material [CQTZ]: Copper Alloy Single Mating End Single Contact Grouping
Contact Removability [AFQZ]: Nonremovable Single Mating End Single Contact Grouping
Contact Position Arrangement Style [AFQX]: 2 Single Mating End
Contact Surface Treatment [CQYH]: Silver Single Mating End Single Contact Grouping
Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]: 3.250 Inches Nominal
Body Style [AAQL]: Straight Shape W/Cover
Mating End Quantity [AFQW]: 1
Nominal Thread Size [CQJX]: 2.125 Inches
Included Contact Type [CXCL]: Round Socket Single Mating End Single Contact Grouping
Included Contact Quantity [CXCG]: 2 Single Mating End Single Contact Grouping
Insert Material [CQZG]: Plastic Single Mating End
Precious Material And Location [PMLC]: Contact Surfaces Silver
Precious Material And Weight [PMWT]: 0.010 Silver Grains, Troy
Precious Material [PRMT]: Silver
Shell Material [CSPT]: Aluminum
Shell Surface Treatment [CSWM]: Cadmium
Shell Type [AFRT]: Solid
Overall Height [ABKW]: 2.666 Inches Minimum And 2.806 Inches Maximum
Overall Length [ABHP]: 2.812 Inches Nominal
Overall Width [ABMK]: 4.188 Inches Nominal
Unthreaded Mounting Hole Diameter [AEBV]: 0.281 Inches Nominal
Terminal Location [CQTM]: Back Single Mating End Single Contact Grouping
Terminal Type [CSCF]: Solder Well Single Mating End Single Contact Grouping
Thread Direction [AAJF]: Right-Hand
Thread Class [AAJD]: 2A
Thread Quantity Per Inch [CMLP]: 12
Thread Series Designator [THSD]: Un
Threaded Device Type [AFQR]: Coupling Facility

Weapon Systems (WSDC) 5935-00-295-6403

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5935-00-295-6403

Last Stock Position:: 554 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5935-00-295-6403

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); EA; Subscribe; 1
Oct 2021: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2020: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

Q: Electronics Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

Similar Supply Items to 5935-00-295-6403

Freight Information 5935-00-295-6403

5935-00-295-6403 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-295-6403 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-295-6403 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-295-6403 is not classified as a special type of cargo when transported by water. 5935-00-295-6403 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5935-00-295-6403

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; --; No Requirement; Not Applicable; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: Any Suitable Fiber Box

Procurement History 5935-00-295-6403 3 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE7M517P2561: 30 Nov 2016; Subscribe; 785; Subscribe; Subscribe
SPE7M517P0837: 21 Oct 2016; Subscribe; 578; Subscribe; Subscribe
SPM54006DBP025383: 21 Sep 2016; Subscribe; 5; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5935-00-295-6403 October 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: L

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5935-00-295-6403

Related Documents 5935-00-295-6403 5+ Documents (More...)

Restrictions 5935-00-295-6403

Import and Export 5935-00-295-6403

End Users 5935-00-295-6403

Approved Sources 5935-00-295-6403

Datasheet 5935-00-295-6403

Weapon Systems (WSDC) 5935-00-295-6403

DLA Procurement Analysis 5935-00-295-6403

Management Data 5935-00-295-6403

Army

Navy

Marine Corps

Similar Supply Items to 5935-00-295-6403

Freight Information 5935-00-295-6403

Packaging Data 5935-00-295-6403

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5935-00-295-6403 3 Records

Contracting Technical Data File (CTDF) 5935-00-295-6403 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
