5935-00-260-0526
Plug-In Electronic Components Socket
5935002600526 002600526 9B30451 SCB23521 9A25981 GH2133-2FRB 203-72-04-036 9804A 203-72-04-037 9800
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
June 2023
39
Marketplace 5935-00-260-0526
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5935-00-260-0526 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-260-0526 (Identification) 2/3 NSN 5935-00-260-0526 (Identification
Request a Quotation from participating marketplace vendors Request Global Test Supply 9800 Weller 9800
2995143919804 143919804 Here are instructions how to enable JavaScript in your web browser . 2995-14-391-9804A
Plug-In Electronic Components Socket 0526Plug-In Electronic Components Socket5935002600526 002600526
04A SOCKET,PLUG-IN ELECTRONIC COMPON 1 EA NS Request Quotation Subscribe to View Vendor Details... 9800
SOCKET,PLUG-IN ELECTRONIC COMPON 3 EA NS Request Quotation Subscribe to View Vendor Details... 9800
are instructions how to enable JavaScript in your https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-260-0526
Restrictions 5935-00-260-0526
5935-00-260-0526 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5935-00-260-0526
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-260-0526
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Jun 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-00-260-0526
- Part Number
- Manufacturer
- Status
- 9B30451
- Manufacturer
- 1VPW8 - General Dynamics Mission Systems, (Active)
- Primary Buy
- Primary Buy
- SCB23521
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- 9A25981
- 1VPW8 - General Dynamics Mission Systems, (Active)
- Primary Buy
- Primary Buy
- GH2133-2FRB
- F0057 - Thales Six Gts France Sas (Active)
- Secondary Buy
- Secondary Buy
- 203-72-04-036
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 9804A
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 203-72-04-037
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 9B30451
- 94990 - Motorola Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 9A25981
- 78152 - Sentinel Radio Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 9A25981
- 94990 - Motorola Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 9800
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-260-0526
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Contact Position Arrangement Style [CRPY]
- Rectangular
- Accommodated Contact Quantity [AFRL]
- 4
- Contact Material [AFRG]
- Beryllium Copper
- Contact Surface Treatment [AFRH]
- Silver
- Body Style [AAQL]
- Top Mount W/Saddle
- Overall Length [ABHP]
- 0.624 Inches Nominal
- Overall Height [ABKW]
- 0.688 Inches Nominal
- Overall Width [ABMK]
- 0.624 Inches Nominal
- Projection Length Below Mounting Surface [AKXC]
- 0.188 Inches Nominal
- Body Material [AAFZ]
- Mica
- Terminal Type And Quantity [TTQY]
- 4 Tab, Solder Lug
- Mounting Type For Which Designed [BCNX]
- Printed Circuit
- Mounting Method [AXGY]
- Terminal
- Printed Circuit Board Hole Arrangement Style [AKWJ]

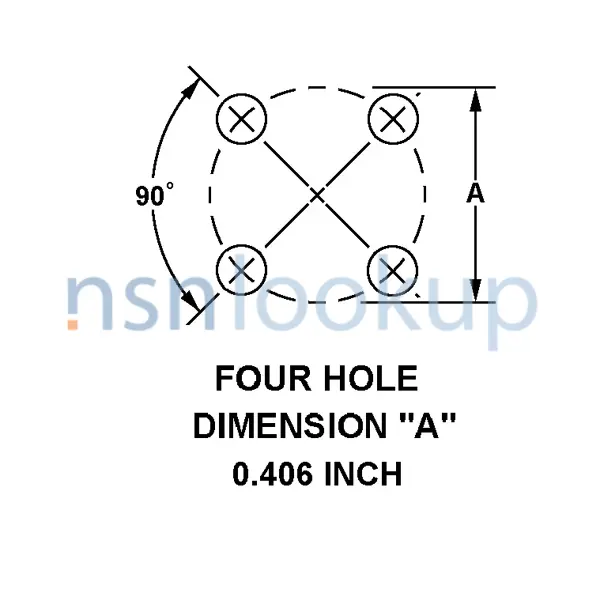

- Four Hole Dimension "A" 0.406 Inch
- Precious Material [PRMT]
- Silver
- Precious Material And Weight [PMWT]
- 0.020 Silver Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Silver
