5935-00-259-1025
Plug-In Electronic Components Socket
5935002591025 002591025 8850-623280-52 29044-000 6502-3170468PC9-25000HM 6502-3198192PC143 209A1039 209B1061 54A18077 770BC 290444-000
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
17
Marketplace 5935-00-259-1025
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-259-1025 5+ Documents (More...)
RQST NE Updated Every Day 5935-00-259-1025 RQST Updated Every Day 5935-00-259-1025 RQST NE Related Documents
5935-00-259-1025 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-259-1025
Plug-In Electronic Components Socket www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-259-1025 https
www.nsnlookup.com Electronic Components Socket 7734Electromagnetic Loudspeaker5965998047734 998047734 002591025
Plug-In Electronic Components Socket 8850-623280-52 29044-000 6502-3170468PC9-25000HM 6502-3198192PC143
209A1039 209B1061 54A18077 770BC 290444 www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-259-1025 https
Restrictions 5935-00-259-1025
5935-00-259-1025 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-259-1025
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-259-1025
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-259-1025
- Part Number
- Manufacturer
- Status
- 8850-623280-52
- Manufacturer
- 80049 - Department Of The Air Force (Active)
- Primary Buy
- Primary Buy
- 29044-000
- 14100 - Stromberg-Carlson Corp (Active)
- Primary Buy
- Primary Buy
- 6502-3170468PC9-25000HM
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 6502-3198192PC143
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 209A1039
- 1VPW8 - General Dynamics Mission Systems, (Active)
- Primary Buy
- Primary Buy
- 209B1061
- 1VPW8 - General Dynamics Mission Systems, (Active)
- Primary Buy
- Primary Buy
- 209B1061
- 94990 - Motorola Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 54A18077
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 770BC
- 91662 - Avx Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 290444-000
- 12436 - Bae Systems Information And (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 209A1039
- 94990 - Motorola Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-259-1025
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

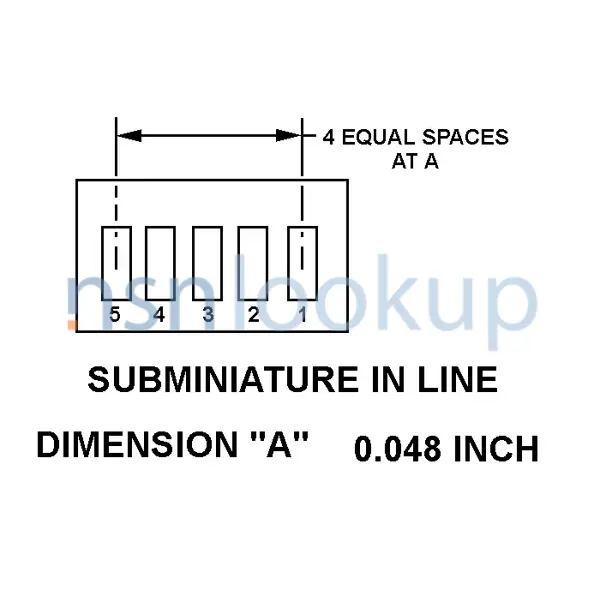

- Contact Position Arrangement Style [CRPY]
- Subminiature In Line
- Accommodated Contact Quantity [AFRL]
- 5
- Contact Material [AFRG]
- Copper Alloy
- Contact Surface Treatment [AFRH]
- Gold
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 5 Tab, Solder Lug
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Retainer Ring
- Mounting Hole Style [AEVB]
- Rectangular
- Body Mounting Hole Accommodation Length [ADAJ]
- 0.353 Inches Nominal
- Body Mounting Hole Accommodation Width [ADAK]
- 0.159 Inches Nominal
- Specific Equipment Accommodated [AFJE]
- Electron Tube
- Fabrication Method [AARN]
- Molded
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.025 Gold Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
DLA Procurement Analysis 5935-00-259-1025
Management Data 5935-00-259-1025
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-259-1025
Freight Information 5935-00-259-1025
5935-00-259-1025 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-259-1025 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-259-1025 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5935-00-259-1025 is not classified as a special type of cargo when transported by water. 5935-00-259-1025 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
