5935-00-259-0582
Electrical Connector Cover
5935002590582 002590582 164-499 164-499-00 12520-2X
A device specifically designed to fully or partially inclose an electrical connector to protect its mating end from mechanical damage. Excludes CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and GUARD, ELECTRICAL CONNECTOR. See also COVER AND GUARD, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; and SHIELD, ELECTRICAL CONNECTOR. View more Electrical Connector Cover
May 2023
23
Marketplace 5935-00-259-0582
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-259-0582 5+ Documents (More...)
Request Quotation 164-499-00 COVER,ELECTRICAL CONNECTOR RQST NS Request Quotation Updated Every Day
5935/us 5935-00-259-0582 Electrical Connector Cover 5935002590582 164-499164-499-0012520-2X A device
Electrical Connector Cover 5935002590582 www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-259-0582
Electrical Connector Cover 5935002590582 164-499164-499-0012520 Updated Every Day 5935/us 5935-00-259
Electrical Connector Cover 5935002590582 164-499-00 12520-2X A device specifically designed to
or partially inclose an electrical connector COVER,ELECTRICAL CONNECTOR 11 EA NS Request Quotation 164-499
-1001 164-499-1000 A device specifically designed to fully or partially inclose an electrical connector
-1001 COVER,ELECTRICAL CONNECTOR 10 EA NS Request Quotation 164-499-1000 COVER,ELECTRICAL CONNECTOR
Electrical Connector Cover 5935002590582 164-499-00 12520-2X A device specifically designed to
or partially inclose an electrical connector COVER,ELECTRICAL CONNECTOR 11 EA NS Request Quotation 164-499
Restrictions 5935-00-259-0582
5935-00-259-0582 is a Electrical Connector Cover that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-259-0582
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-259-0582
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-259-0582
- Part Number
- Manufacturer
- Status
- 164-499
- Manufacturer
- 77820 - Amphenol Corp (Active)
- Primary Buy
- Primary Buy
- 164-499
- 02660 - Amphenol Corp Spectra-Strip/Itd (Replaced)
- Original Design
- Original Design
- 164-499-00
- 77820 - Amphenol Corp (Active)
- Secondary Buy
- Secondary Buy
- 12520-2X
- 02660 - Amphenol Corp Spectra-Strip/Itd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 164-499-00
- 02660 - Amphenol Corp Spectra-Strip/Itd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-259-0582
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Body Height [ADAU]
- 0.625 Inches Nominal
- Mounting Facility Type And Quantity [AXHR]
- 1 Screw
- Nominal Thread Size [CQJX]
- 0.190 Inches
- Size Designation [ALJP]
- 20
- Overall Diameter [ADAV]
- 1.375 Inches Nominal

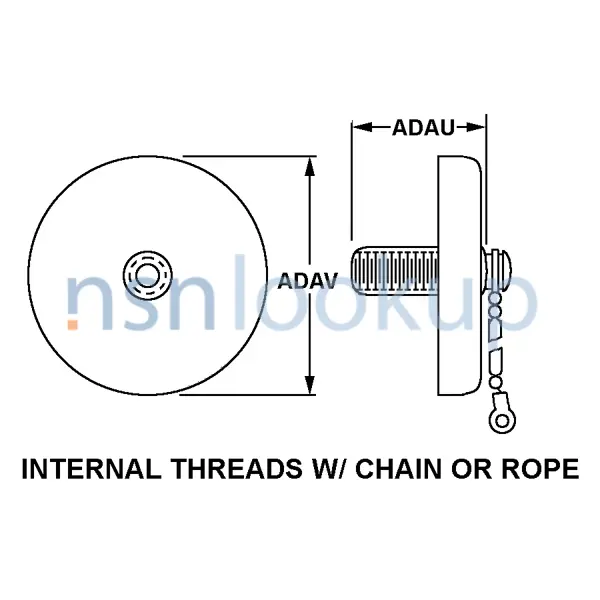

- Style Designator [STYL]
- Internal Threads W/Chain Or Rope
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Series Designator [THSD]
- Unf
DLA Procurement Analysis 5935-00-259-0582
Management Data 5935-00-259-0582
Similar Supply Items to 5935-00-259-0582
Freight Information 5935-00-259-0582
5935-00-259-0582 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-259-0582 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-259-0582 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5935-00-259-0582 is not classified as a special type of cargo when transported by water. 5935-00-259-0582 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-259-0582
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
Contracting Technical Data File (CTDF) 5935-00-259-0582 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
