5935-00-259-0205

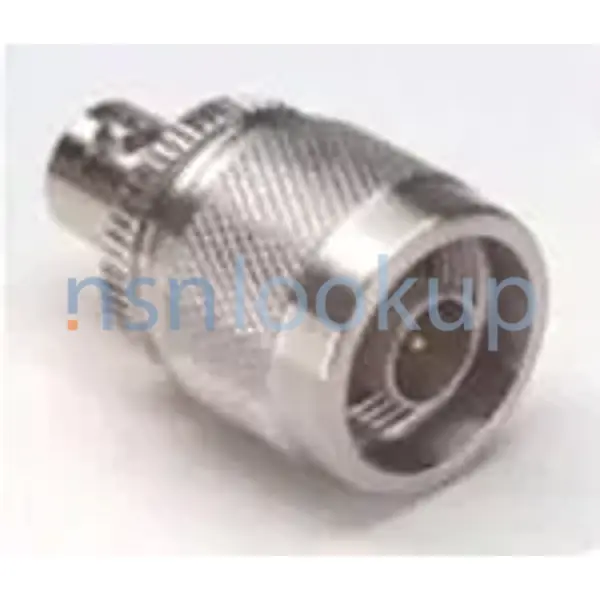

Connector Adapter

5935002590205 002590205 MIL-PRF-55339/20 5M4584-220-24 103-0045-00 825 33N-BNC-50-1 875528-0014 TR201A PM9063 54311-092P 31-216 OR 31-830 1250 780 UG201AU KN99-35TR5 063-02-00017 M55339-20-00201 31-830 A2130071ISSUEC KN94-05 374-079-003 1701 31-216-1050 UG-201-AU 1250-1476 12621A

An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction.It is not designed for permanent attachment to a cable, cord, coaxial line, or wire.The physical shape of an electrical connector should not be the determining factor of its name.Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR.Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER.For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT. View more Connector Adapter

Managed by United States

NSN Created on 1 Jan 1961

Data Last Changed
November 2023

NATO Update Count
131

NATO Data Quality

5935-00-259-0205 ADAPTER,CONNECTOR 5935002590205 002590205 1/2 — 5935-00-259-0205 Photo 1/2

AAQL Style 1N for 5935-00-259-0205 2/2 — NSN 5935-00-259-0205 (Identification) 2/2

Marketplace 5935-00-259-0205

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

UG201AU ADAPTER,CONNECTOR 10 EA NS

Subscribe to View Vendor Details...

5935-00-259-0205 ADAPTER,CONNECTOR 2 EA NS

Subscribe to View Vendor Details...

UG201A-U ADAPTER,CONNECTOR 9 EA NS

5935-00-259-0205 ADAPTER,CONNECTOR 1 EA NS

UG-201AU ADAPTER,CONNECTOR 12 EA NS

Subscribe to View Vendor Details...

1701 ADAPTER,CONNECTOR 3 EA NS

Subscribe to View Vendor Details...

M55339/20 ADAPTER,CONNECTOR 16 EA NS

Subscribe to View Vendor Details...

MIL-PRF-55339/20 ADAPTER,CONNECTOR 107 EA NS

825 ADAPTER,CONNECTOR 4 EA NS

8992 ADAPTER,CONNECTOR 216 EA NS

UG201A/U ADAPTER,CONNECTOR 91 EA NS

Subscribe to View Vendor Details...

Updated 51 Days Ago

M55339/20 ADAPTER 2 EA NS

M55339/20-00201 ADAPTER 1 EA NS

Subscribe to View Vendor Details...

31-830AMPHENOLCOROR= ADAPTER,CONNECTOR RQST NS

Subscribe to View Vendor Details...

M5533920-00201 ADAPTER,CONNECTOR 2 EA NS

Subscribe to View Vendor Details...

UG201AU ADAPTER,CONNECTOR 2 EA NS

UG201A ADAPTER,CONNECTOR 2 EA NS

Subscribe to View Vendor Details...

M55339/20-00201 ADAPTER,CONNECTOR 7 EA NS

Updated Every Day

5935-00-259-0205 RQST NE

Updated Every Day

5935-00-259-0205 RQST

Updated Every Day

5935-00-259-0205 RQST NE

Restrictions 5935-00-259-0205

5935-00-259-0205 is a Connector Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains a combination of two or more precious metals.

Import and Export 5935-00-259-0205

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5935-00-259-0205

US Army (A918)
Effective Date:: 1 Aug 2006
Former MOE Rule:: A196
Supplementary Receivers:: BDCL; AMC 1 AMSC T IMC Z IMCACTY CD

MOE Rule:: B031
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0

MOE Rule:: BGX1
Effective Date:: 1 Aug 2006
Former MOE Rule:: BTX1; AMC 1 AMSC T

US Coast Guard (C911)
Effective Date:: 1 Aug 2006
Former MOE Rule:: C007; AMC 1 AMSC T

US Air Force (FXGX)
Effective Date:: 1 Aug 2006
Former MOE Rule:: FXTX; AMC 1 AMSC T IMC Z IMCACTY SX

NASA (G17X)
Effective Date:: 1 Aug 2006
Former MOE Rule:: G17E; AMC 1 AMSC T

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G880)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC49)
Effective Date:: 1 Aug 2006
Former MOE Rule:: MC13; AMC 1 AMSC T IMC Z IMCACTY PA

US Navy (N9BN)
Effective Date:: 1 Aug 2006
Former MOE Rule:: NIND
Supplementary Collaborators:: GTKEJBHXHSHD
Supplementary Receivers:: JV; AMC 1 AMSC T IMC Z IMCACTY GH

MOE Rule:: RGX1
Effective Date:: 1 Aug 2006
Former MOE Rule:: R479
Supplementary Collaborators:: TR; AMC 1 AMSC T

MOE Rule:: S911
Effective Date:: 1 Aug 2006
Former MOE Rule:: S007; AMC 1 AMSC T IMC Z IMCACTY XN

Austria (WB01)
Effective Date:: 1 Feb 2005

Estonia (WE01)
Effective Date:: 1 Jul 2008

Lithuania (WI01)
Effective Date:: 1 Jun 2001

Slovenia (WL01)
Effective Date:: 1 May 2008

Poland (WP01)
Effective Date:: 1 Feb 2005

Brazil (YA01)
Effective Date:: 1 Aug 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Saudi Arabia (YS01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Thailand (YY01)
Effective Date:: 1 Feb 2015

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 5935-00-259-0205

Part Number
Manufacturer
Status
M55339/20-00201: 81349 - Military Specifications (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
MIL-PRF-55339/20: 81349 - Military Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
5M4584-220-24: D1901 - Hensoldt Sensors Gmbh (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
103-0045-00: K3976 - Tektronix Uk Ltd (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 2
825: D2630 - Telegartner Karl Gartner Gmbh (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
33N-BNC-50-1: S3708 - Huber And Suhner Ltd (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
875528-0014: 65597 - Thales Usa, Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
TR201A: K2760 - American Power Conversion Uk Ltd (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 2
PM9063: D2332 - Pma Prozess- Und (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 1
M55339-20-00201: 00795 - Delta Electronics Manufacturing Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
M55339-20-00201: 0B1C1 - Denelex Components Co., Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
54311-092P: K0433 - Trescal Limited (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 2
5M.4584.220.24: D1901 - Hensoldt Sensors Gmbh (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
178.138-4: C1798 - Aeromaritime Systembau Gmbh (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
UG-201A/U: 80058 - Joint Electronics Type Designation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
REB49324: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
252-23961C: K1831 - Apw Electronics Ltd (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
252-23961C: K4491 - Vero Electronics Ltd (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
UG-201A/U: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
UG201A: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
1701: 83330 - Dialight Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
M55339/20: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MIL-A-55339/20: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
5935PL1013300: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
31-216 OR 31-830: 74868 - Amphenol Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
1250 780: 28480 - Hewlett-Packard Company (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
UG201AU: 91836 - Winchester Interconnect Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
KN99-35TR5: 91836 - Winchester Interconnect Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
063-02-00017: 06141 - L3 Aviation Products, Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
M55339-20-00201: 91836 - Winchester Interconnect Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
31-830: 88033 - Stewart-Warner Alemite Sales Co Inc (Obsolete); Advisory Reference; RNCC C RNVC 1 DAC 5
A2130071ISSUEC: 28528 - Itt Industries Inc (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 5
UG201AU: 28528 - Itt Industries Inc (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 5
31-830: 02660 - Amphenol Corp Spectra-Strip/Itd (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 5
KN94-05: 91836 - Winchester Interconnect Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 3
374-079-003: 07421 - L3harris Interstate Electronics (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
1701: 91967 - Halsit Holdings Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
31-216-1050: 74868 - Amphenol Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
UG-201-AU: 04804 - Northrop Grumman Systems Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
1250-1476: 28480 - Hewlett-Packard Company (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
12621A: 50423 - Ballantine Laboratories Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
899-1: 74868 - Amphenol Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
899-2: 74868 - Amphenol Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
UG-201A/4: 80064 - Naval Ship Systems Command (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
M55339-20-0021: 81349 - Military Specifications (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
UG201A/U: 81349 - Military Specifications (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
UG201U: 81349 - Military Specifications (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
M55339-20-00201: 96906 - Military Standards (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
UG201U: 96906 - Military Standards (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
UG201AU: 18323 - Northrop Grumman Systems Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
A1686: 81535 - Aeronautical Communications (Obsolete); Advisory Reference; RNCC C RNVC 1 DAC 5
103-0045-00: 80009 - Tektronix, Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
UG-201/U: 80058 - Joint Electronics Type Designation (Active); Transferred; RNCC E RNVC 8 DAC 4
Q 5 3142 7033: S3092 - Rheinmetall Air Defence Ag (Active); Transferred; RNCC E RNVC 8 DAC 1
31216-10201250-0780: 74868 - Amphenol Corporation (Active); Transferred; RNCC E RNVC 8 DAC 5

Datasheet 5935-00-259-0205

Characteristic
Specifications
FIIG: A039B0
Body Style [AAQL]: Straight Shape, External/Internal Coupling
Connector Locking Method [AFRV]: Bayonet Pin And Internally Threaded Coupling Ring
Contact Material [CQTZ]: Copper Alloy All Mating Ends Single Contact Grouping
Contact Material Document And Classification [CSGF]: Qq-C-530 Fed Spec Single Material Response All Mating Ends Single Contact Grouping Or Qq-C-533 Fed Spec Single Material Response All Mating Ends Single Contact Grouping
Contact Position Arrangement Style [AFQX]: Bnc 1St Mating End
Contact Position Arrangement Style [AFQX]: N 2Nd Mating End
Contact Removability [AFQZ]: Nonremovable All Mating Ends Single Contact Grouping
Contact Maximum Dc Voltage Rating In Volts [AFRE]: 500.0 All Mating Ends Single Contact Grouping
Contact Maximum Frequency Rating [AFRF]: 4.0 Gigahertz All Mating Ends Single Contact Grouping
Contact Surface Treatment Document And Classification [CRBJ]: Mil-G-45204,Type 1,Class 2,Grade C Mil Spec Single Treatment Response All Mating Ends Single Contact Grouping
Contact Surface Treatment [CQYH]: Gold All Mating Ends Single Contact Grouping
Environmental Protection [ADZC]: Moisture Resistant And Salt Water Resistant And Shock Resistant And Thermal Shock Resistant And Vibration Resistant
Mating End Quantity [AFQW]: 2
Nominal Thread Size [CQJX]: 0.625 Inches
Operating Temp Rating [AWTN]: -65.0 Deg Celsius Minimum And 165.0 Deg Celsius Maximum
Overall Diameter [ADAV]: 0.827 Inches Maximum
Included Contact Quantity [CXCG]: 1 All Mating Ends Single Contact Grouping
Included Contact Type [CXCL]: Coaxial Pin 2Nd Mating End Single Contact Grouping
Included Contact Type [CXCL]: Coaxial Socket 1St Mating End Single Contact Grouping
Insert Material Document And Classification [CTKL]: L-P-389 Fed Spec 1St Material Response Single Mating End Or L-P-403 Fed Spec 2Nd Material Response Single Mating End
Insert Material [CQZG]: Plastic Fluorinated Ethylene Propylene All Mating Ends Or Plastic Polytetrafluoroethylene All Mating Ends
Precious Material And Location [PMLC]: Contact Surface Gold And Body Surface Silver
Precious Material And Weight [PMWT]: 0.010 Gold Grains, Troy And 0.100 Silver Grains, Troy
Precious Material [PRMT]: Gold And Silver
Radio Frequency Type Contact Characteristic Impedance In Ohms [AFRY]: 50.0 All Mating Ends Single Contact Grouping
Shell Material Document And Classification [CTHH]: Qq-B-613 Fed Spec Single Material Response Or Qq-B-626 Fed Spec Single Material Response
Shell Surface Treatment Document And Classification [CTBC]: Qq-S-365 Fed Spec Single Treatment Response
Shell Surface Treatment [CSWM]: Silver
Shell Type [AFRT]: Solid
Shell Material [CSPT]: Copper Alloy
Overall Length [ABHP]: 1.356 Inches Maximum
Specification/Standard Data [ZZZK]: 81349-Mil-Prf-55339/20 Government Specification
Test Data Document [TEST]: 81349-Mil-Prf-55339 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
Thread Class [AAJD]: 2B
Thread Direction [AAJF]: Right-Hand
Thread Quantity Per Inch [CMLP]: 24
Thread Series Designator [THSD]: Unef
Threaded Device Type [AFQR]: Coupling Facility

Weapon Systems (WSDC) 5935-00-259-0205

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5935-00-259-0205

Last Stock Position:: 2934 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5935-00-259-0205

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); EA; Subscribe; 5
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 5
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 5
Mar 2020: Department of the Air Force (DF); EA; Subscribe; 5

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5935-01-552-8551

Army

Materiel Category and Inventory Manager:

Q: Electronics Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

0

Similar Supply Items to 5935-00-259-0205

Freight Information 5935-00-259-0205

5935-00-259-0205 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-259-0205 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-259-0205 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5935-00-259-0205 is not classified as a special type of cargo when transported by water. 5935-00-259-0205 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5935-00-259-0205

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 5; 4.0" H x 2.0" W x 2.0" L; --; --; --; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; MIL-DTL-17667, Neutral Wrapping Paper; No Requirement; Not Applicable; --; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5935-00-259-0205 12 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE7M523V4052: 08 May 2023; Subscribe; 3821; Subscribe; Subscribe
SPE7M519V2243: 20 Nov 2018; Subscribe; 4800; Subscribe; Subscribe
SPE7M519V1257: 31 Oct 2018; Subscribe; 800; Subscribe; Subscribe
SPE7M518V129U: 27 Aug 2018; Subscribe; 5500; Subscribe; Subscribe
SPE7M518V086A: 06 Aug 2018; Subscribe; 2330; Subscribe; Subscribe
SPE7M517V9535: 12 Sep 2017; Subscribe; 2350; Subscribe; Subscribe
SPE7M517V8512: 09 Aug 2017; Subscribe; 5200; Subscribe; Subscribe
SPE7M517V1171: 17 Nov 2016; Subscribe; 2400; Subscribe; Subscribe
SPE7M916M1072: 05 Jan 2016; Subscribe; 3000; Subscribe; Subscribe
SPE7M214M3666: 07 Jul 2014; Subscribe; 3600; Subscribe; Subscribe
SPE7M214M0195: 16 Oct 2013; Subscribe; 1550; Subscribe; Subscribe
SPM7M213M3072: 12 Apr 2013; Subscribe; 4300; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5935-00-259-0205 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5935-00-259-0205

Related Documents 5935-00-259-0205 5+ Documents (More...)

Restrictions 5935-00-259-0205

Import and Export 5935-00-259-0205

End Users 5935-00-259-0205

Approved Sources 5935-00-259-0205

Datasheet 5935-00-259-0205

Weapon Systems (WSDC) 5935-00-259-0205

DLA Procurement Analysis 5935-00-259-0205

Management Data 5935-00-259-0205

Army

Navy

Marine Corps

Similar Supply Items to 5935-00-259-0205

Freight Information 5935-00-259-0205

Packaging Data 5935-00-259-0205

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5935-00-259-0205 12 Records

Contracting Technical Data File (CTDF) 5935-00-259-0205 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
