5935-00-258-3829
Plug-In Electronic Components Socket
5935002583829 002583829 10513
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
11



Marketplace 5935-00-258-3829
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-258-3829 5+ Documents (More...)
DESCO 10513 RQST NE Updated Every Day 5935-00-258-3829 RQST Updated DESCO 10513 DESCO 10513 DESCO 10513
DESCO DESCO 10513 DESCO 10513 DESCO 10513 DESCO 10513 DESCO /fsg-66/ DESCO 10513 DESCO 10513 DESCO 10513
DESCO 10513 DESCO 10513 DESCO 10513 DESCO 10513 DESCO /fsg-91/fsc 10513 DESCO DESCO 10513 10513 DESCO
www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-258-3829 Plug-In Electronic Components Socket,10513 -3829
3829 RQST Updated DESCO 10513 DESCO 10513 DESCO 10513 Request ,10513 DESCO 10513 DESCO 10513 DESCO 10513
10513 DESCO 10513 DESCO 10513 DESCO 10513 DESCO 10513 DESCO 10513 DESCO /fsg- a Quotation DESCO 10513
DESCO 10513 DESCO 10513 DESCO 10513 DESCO 10513 DESCO 10513 DESCO 10513 Request a Quotation 10513 DESCO
10513 DESCO 10513 DESCO 10513 DESCO 10513 DESCO 10513 DESCO 10513 DESCO 10513 DESCO DESCO https//www.nsnlookup.com
DESCO 10513 DESCO 10513 DESCO 10513 DESCO 10513 DESCO DESCO 10513 DESCO 10513 DESCO 10513 DESCO 10513
DESCO 10513 Request DESCO DESCO 10513 DESCO 10513 DESCO 10513 DESCO 10513 DESCO /fsg-66/ DESCO 10513
Restrictions 5935-00-258-3829
5935-00-258-3829 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5935-00-258-3829
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-258-3829
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-258-3829
- Part Number
- Manufacturer
- Status
- 10513
- Manufacturer
- 00781 - Cessna Aircraft Co (Obsolete)
- Original Design
- Original Design
Datasheet 5935-00-258-3829
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

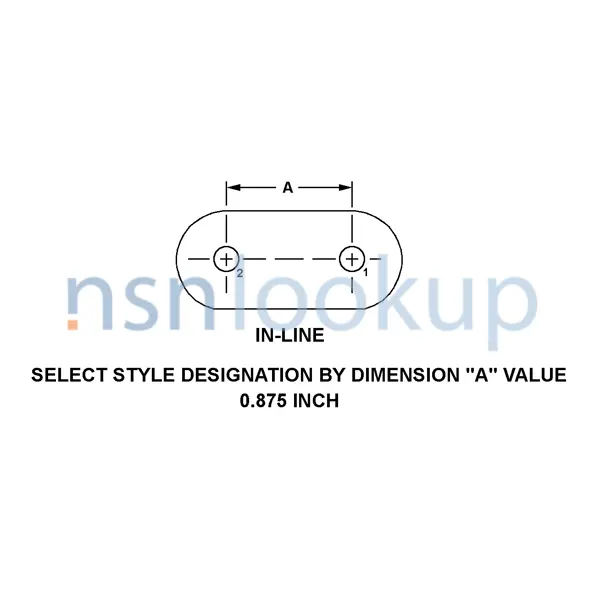

- Contact Position Arrangement Style [CRPY]
- In Line
- Accommodated Contact Quantity [AFRL]
- 2
- Contact Material [AFRG]
- Copper Alloy
- Contact Surface Treatment [AFRH]
- Silver
- Body Style [AAQL]
- Bottom Surface Mount
- Overall Length [ABHP]
- 1.593 Inches Nominal
- Overall Height [ABKW]
- 0.468 Inches Nominal
- Overall Width [ABMK]
- 0.875 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 2 Tab, Solder Lug
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Hole Style [AEVB]
- Two Mounting Holes/Slots, In-Line
- Mounting Hole Diameter [ABTB]
- 0.100 Inches Nominal
- Distance Between Mounting Facility Centers [AEJN]
- 1.125 Inches Nominal
- Specific Equipment Accommodated [AFJE]
- Crystal
- Fabrication Method [AARN]
- Molded
- Precious Material [PRMT]
- Silver
- Precious Material And Weight [PMWT]
- 0.010 Silver Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Silver
Similar Supply Items to 5935-00-258-3829


















Freight Information 5935-00-258-3829
5935-00-258-3829 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-258-3829 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-258-3829 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-258-3829 is not classified as a special type of cargo when transported by water. 5935-00-258-3829 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-258-3829
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
