5935-00-257-9214
Plug-In Electronic Components Socket
5935002579214 002579214 TP-51710 TP51710-2
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
14
Marketplace 5935-00-257-9214
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-257-9214 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-257-9214 (Identification) 2/3 NSN 5935-00-257-9214 (Identification
(Identification) 2/3 NSN 5935-00-257-9214 (Identification (Identification) 2/3 NSN 5935-00-257-
TP-51710 TP-51710TP-51710 TP-51710TP-51710 010139649 TP-51710 https//www.nsnlookup.com /fsg-59/fsc-5935
your Account Upgrade 5935-00-257-9214Plug-In Electronic Components Socket5935002579214 002579214 https
Plug-In Electronic Components Socket 00-257-9214Plug-In Electronic Components Socket5935002579214 002579214
TP-51710 TP-51710TP-51710 010139649 9214 Plug-In your Account Upgrade 5935-01-013-9649Plug-In Electronic
Plug-In Electronic Components Socket 5935-00-257-9214 Plug-In Electronic Components https//www.nsnlookup.com
your Account Upgrade 5935-00-257-9214Plug-In Electronic Components Socket5935002579214 002579214 TP-
51710 TP-51710 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-257-9214 Plug-In Electronic Components
Restrictions 5935-00-257-9214
5935-00-257-9214 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-257-9214
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-257-9214
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Australia (ZA01)
- Effective Date:
- 1 Jun 2004
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-00-257-9214
- Part Number
- Manufacturer
- Status
- TP51710-2
- Manufacturer
- 06776 - Robinson Nugent Inc (Obsolete)
- Original Design
- Original Design
- TP-51710
- 06776 - Robinson Nugent Inc (Obsolete)
- Transferred
- Transferred
Datasheet 5935-00-257-9214
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Distance From Flatted Portion To Opposite Surface [AKXE]
- 0.294 Inches Minimum And 0.297 Inches Maximum
- Accommodated Contact Quantity [AFRL]
- 10
- Body Diameter [ABPM]
- 0.313 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Diameter [ADAL]
- 0.314 Inches Minimum And 0.317 Inches Maximum
- Body Style [AAQL]
- Bottom Mount, Radial Terminals
- Contact Material [AFRG]
- Beryllium Copper

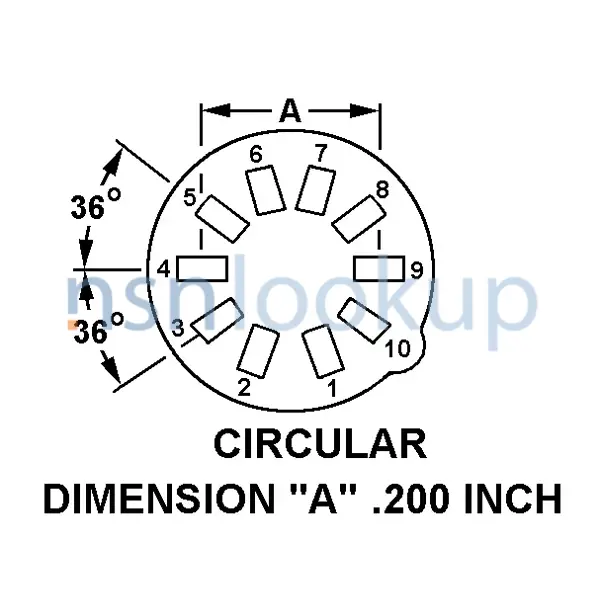

- Contact Position Arrangement Style [CRPY]
- Circular
- Contact Surface Treatment [AFRH]
- Gold And Copper
- Mounting Hole Style [AEVB]
- Round, Flatted
- Mounting Method [AXGY]
- Body Through Hole
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Slot
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material And Weight [PMWT]
- 0.010 Gold Grains, Troy
- Precious Material [PRMT]
- Gold
- Projection Length Below Mounting Surface [AKXC]
- 0.085 Inches Minimum And 0.095 Inches Maximum
- Overall Diameter [ADAV]
- 1.375 Inches Nominal
- Overall Height [ABKW]
- 0.237 Inches Minimum And 0.257 Inches Maximum
- Terminal Type And Quantity [TTQY]
- 10 Pin
Weapon Systems (WSDC) 5935-00-257-9214
DLA Procurement Analysis 5935-00-257-9214
Management Data 5935-00-257-9214
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5935-00-257-9214
Freight Information 5935-00-257-9214
5935-00-257-9214 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-257-9214 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-257-9214 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-257-9214 is not classified as a special type of cargo when transported by water. 5935-00-257-9214 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-257-9214
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5935-00-257-9214 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
