5935-00-246-5280
Plug-In Electronic Components Socket
5935002465280 002465280 1200-0014 120-17 220-1410-00 220-1410-000 A2843 78S4
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
33
Marketplace 5935-00-246-5280
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-246-5280 5+ Documents (More...)
RQST NE Updated Every Day 5935-00-246-5280 RQST Updated Every Day 5935-00-246-5280 RQST NE Related
Documents 5935-00-246-5280 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935
/www.nsnlookup.com /fsg-42/fsc-4220/fr 4220-14-352-2784 Coussin Siege Paque 4220143522784143522784 78S4
Plug-In Electronic Components Socket Electronic Components Socket5935002465280 002465280 1200-0014
instructions how to enable JavaScript in your web browser . 5985-66-148-4892Mast5985661484892 661484892 1200-0014
Radio Frequency Coil 5950010507340010507340 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-246-5280
Access Cover 5840218114563218114563,A2843 how to enable JavaScript in your web browser . 5840- 21-811
//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-246-5280 Plug-In Electronic Components Socket Access
COIL,RADIO FREQUENCY 8 EA NS Request Quotation Subscribe to View Vendor Details... 1200-0014 COIL
www.nsnlookup.com /fsg-59/fsc-5950/us 5950-01-050-7340 Radio Frequency Coil 5950010507340010507340 1200 0014
Restrictions 5935-00-246-5280
5935-00-246-5280 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-246-5280
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-246-5280
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5935-00-246-5280
- Part Number
- Manufacturer
- Status
- 220-1410-00
- Manufacturer
- 59105 - Branom Instrument Company, Inc. (Obsolete)
- Original Design
- Original Design
- 1200-0014
- 1MY97 - Agilent Technologies, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 120-17
- 1MY97 - Agilent Technologies, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 220-1410-000
- 59105 - Branom Instrument Company, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- A2843
- 88986 - Hogan Faximile Corp Sub Of (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 220-1410-000
- 13499 - Rockwell Collins, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 78S4
- 02660 - Amphenol Corp Spectra-Strip/Itd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 120-17
- 28480 - Hewlett-Packard Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 220-1410-00
- 13499 - Rockwell Collins, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1200-0014
- 28480 - Hewlett-Packard Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 78S4
- 77820 - Amphenol Corp (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-246-5280
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Contact Position Arrangement Style [CRPY]
- Circular
- Accommodated Contact Quantity [AFRL]
- 4
- Contact Material [AFRG]
- Copper Alloy
- Overall Diameter [ADAV]
- 1.250 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 4 Tab, Solder Lug
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Retainer Ring

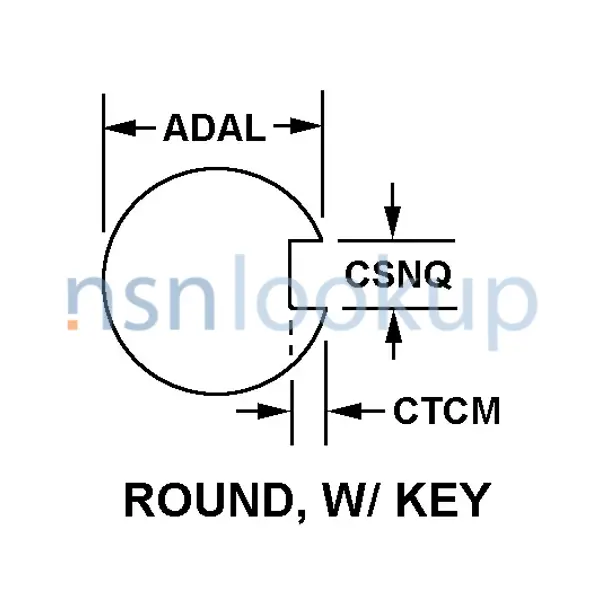

- Mounting Hole Style [AEVB]
- Round, W/Key
- Body Mounting Hole Accommodation Diameter [ADAL]
- 1.172 Inches Nominal
- Special Features [FEAT]
- 0.420 In. High Excluding Terminals And Contacts
Similar Supply Items to 5935-00-246-5280
Freight Information 5935-00-246-5280
5935-00-246-5280 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-246-5280 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5935-00-246-5280 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-246-5280 is not classified as a special type of cargo when transported by water. 5935-00-246-5280 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
