5935-00-236-5627
Plug-In Electronic Components Socket
5935002365627 002365627 6403-2E
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
2
Marketplace 5935-00-236-5627
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-236-5627 1+ Documents (More...)
SOCKET,PLUG-IN ELECTRONIC COMPONENTS 2 EA NS Request Quotation Updated Every Day 5935-00-236-5627
RQST NE Updated Every Day 5935-00-236-5627 RQST Updated Every Day 5935-00-236-5627 RQST NE Related Documents
Restrictions 5935-00-236-5627
5935-00-236-5627 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-236-5627
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-236-5627
- National Security Agency (DGX1)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- DTX1
- Supplementary Receivers:
- TX
Approved Sources 5935-00-236-5627
- Part Number
- Manufacturer
- Status
- 6403-2E
- Manufacturer
- 99699 - Dri Relays Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-00-236-5627
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 20
- Body Material [AAFZ]
- Glass
- Body Style [AAQL]
- Top Mount W/Metal Saddle
- Contact Material [AFRG]
- Copper Alloy

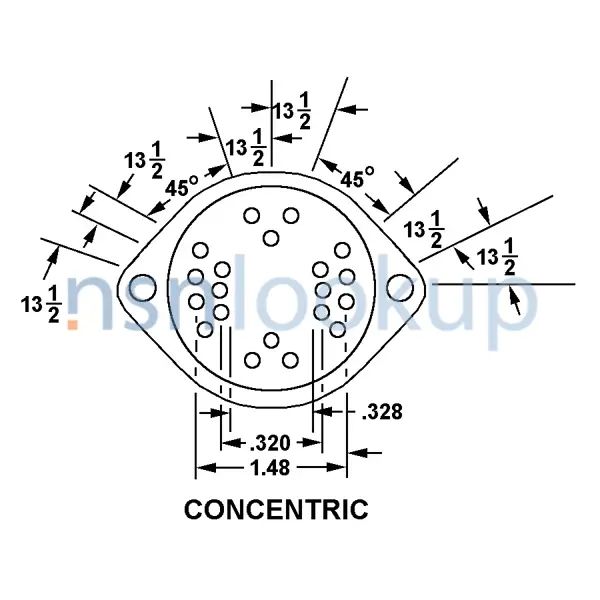

- Contact Position Arrangement Style [CRPY]
- Concentric
- Contact Surface Treatment [AFRH]
- Gold And Silver
- Distance Between Mounting Facility Centers [AEJN]
- 1.406 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.078 Inches Nominal
- Mounting Hole Style [AEVB]
- Round, W/Two Mounting Holes
- Mounting Method [AXGY]
- Threaded Stud
- Mounting Type For Which Designed [BCNX]
- Chassis
- Nominal Thread Size [CQJX]
- 0.138 Inches
- Polarization Type [AKWN]
- Center Key Hole
- Precious Material And Location [PMLC]
- Contact Surfaces Gold And Contact Surfaces Silver
- Precious Material And Weight [PMWT]
- 0.020 Gold Grains, Troy And 0.020 Silver Grains, Troy
- Precious Material [PRMT]
- Gold And Silver
- Projection Length Below Mounting Surface [AKXC]
- 0.188 Inches Nominal
- Overall Height [ABKW]
- 0.968 Inches Nominal
- Overall Length [ABHP]
- 1.781 Inches Nominal
- Overall Width [ABMK]
- 1.062 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 20 Tab, Solder Lug
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unc
