5935-00-228-7824
Electrical Connector Backshell
5935002287824 002287824 MX367U 2Z7415-367 RE49F510 756-2433 219-14-38-014 7406788PT11 16F14286 P11205 5L0-1506
An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables.It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device.It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions. View more Electrical Connector Backshell
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
35
35
NATO Data Quality
Marketplace 5935-00-228-7824
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-228-7824 5+ Documents (More...)
MX367U 2Z7415-367 RE49F510 756-2433 219-14-38-014 7406788PT11 16F14286 P11205 5L0-1506 An item specifically
5935-00-228-7824 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-228-7824
/fsc-5935/us 5935-00-228-7824 -5940/uk 5940-99-756-2433 5940997562433 https//www.nsnlookup.com /fsg-59
5935-00-228-7824 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-228-7824
/fsc-5935/us 5935-00-228-7824 -5940/uk 5940-99-756-2433 5940997562433 https//www.nsnlookup.com /fsg-59
United Kingdom (UK) 4. 5940-99-756-2433 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Related Documents 5940-99-756-2433
fsg-59/fsc-5935/us 5935-00-228-7824 Electrical Connector Backshell 5935002287824 Day 5935-00- /fsg-59
Request a Quotation from participating marketplace vendors Request Related Documents 5940-99-756-2433
fsg-59/fsc-5935/us 5935-00-228-7824 Electrical Connector Backshell 5935002287824 Day 5935-00- /fsg-59
United States (US) 4. 5330-00-756-2433 Marketplace Restrictions Approved Sources Datasheet Management
RQST Updated Every Day 5330-00-756-2433 RQST NE Related Documents 5330-00-756-2433 3+ Documents ( More
https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-228-7824 Electrical Connector Backshell 5935002287824
RQST Updated Every Day 5330-00-756-2433 RQST NE Related Documents 5330-00-756-2433 3+ Documents ( More
https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-228-7824 Electrical Connector Backshell 5935002287824
Documents 5935-00-665-6512 2+ Documents ( More https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-228-7824
Electrical Connector Backshell 5935002287824 Connector Backshell 5935002287824 Day 5935-00- /fsg
AssyUOMTechnical DocumentQuantative ExpressionDepartment of the Navy (DN)NAConsolidated With 5935-00-228-7824
Electrical Connector Backshell 5935002287824 Connector Backshell 5935002287824 Day 5935-00- /fsg
AssyUOMTechnical DocumentQuantative ExpressionDepartment of the Navy (DN)NAConsolidated With 5935-00-228-7824
Upgrade for $1 a day Upgrade your Account Upgrade 5355-00-115-7071Control Dial5355001157071 001157071 756-2433
Every Day 5355-00-115-7071 RQST NE Restrictions https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-228-7824
Electrical Connector Backshell 5935002287824 vendors Request Updated Every Day 5330-00-756-2433
Every Day 5355-00-115-7071 RQST NE Restrictions https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-228-7824
Electrical Connector Backshell 5935002287824 vendors Request Updated Every Day 5330-00-756-2433
Restrictions 5935-00-228-7824
5935-00-228-7824 is a Electrical Connector Backshell that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5935-00-228-7824
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-228-7824
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- NIND
- Supplementary Collaborators:
- HDKE
- Poland (WP01)
- Effective Date:
- 1 Jun 2011
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Jul 2000
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5935-00-228-7824
- Part Number
- Manufacturer
- Status
- 2Z7415-367
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- RE49F510
- 99993 - Department Of The Navy (Active)
- Primary Buy
- Primary Buy
- MX367U
- 80058 - Joint Electronics Type Designation (Active)
- Primary Buy
- Primary Buy
- 756-2433
- 11530 - Lockheed Martin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 219-14-38-014
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 7406788PT11
- 24446 - General Electric Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 16F14286
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- P11205
- 80249 - Bae Systems Information And (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 7406788PT11
- 24454 - General Electric Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5L0-1506
- 11530 - Lockheed Martin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MX367U
- 81349 - Military Specifications (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-228-7824
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Cable Opening Quantity [AKRD]
- 1
- Cable Opening Diameter [AGTW]
- 0.262 Inches Minimum And 0.268 Inches Maximum
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 0.495 Inches Minimum And 0.505 Inches Maximum
- Center To Center Distance Between Mounting Facilities Parallel To Width [ABKR]
- 0.495 Inches Minimum And 0.505 Inches Maximum
- Material [MATT]
- Copper Alloy
- Mounting Facility Type And Quantity [AXHR]
- 4 Unthreaded Hole
- Seal Material [ABAH]
- Plastic
- Seal Type [AKRF]
- Bushing
- Overall Height [ABKW]
- 0.870 Inches Minimum And 0.880 Inches Maximum
- Overall Length [ABHP]
- 0.677 Inches Minimum And 0.687 Inches Maximum
- Overall Width [ABMK]
- 0.677 Inches Minimum And 0.687 Inches Maximum
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.104 Inches Minimum And 0.114 Inches Maximum

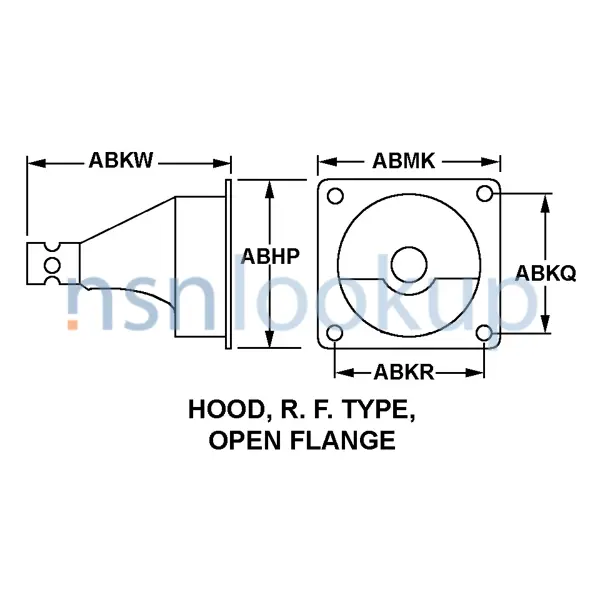

- Style Designator [STYL]
- Hood, R.F. Type, Open Flange
- Surface Treatment [SFTT]
- Silver
