5935-00-209-4062
Plug-In Electronic Components Socket
5935002094062 002094062 10033224-2
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
12
Marketplace 5935-00-209-4062
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-209-4062 1+ Documents (More...)
/fsg-59/fsc-5935/us 5935-00-209-4062 /fsg-59/fsc-5935/us 5935-00-209-4062 /fsg-59/fsc-5935/us 5935-00
-209-4062 /fsg-59/fsc-5935/us 5935-00 -209-4062 Day 5935-00-209-4062 RQST NE Restrictions 5935-00-209
Restrictions 5935-00-209-4062
5935-00-209-4062 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-209-4062
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-209-4062
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5935-00-209-4062
- Part Number
- Manufacturer
- Status
- 10033224-2
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-00-209-4062
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 7
- Body Material [AAFZ]
- Plastic And Mica

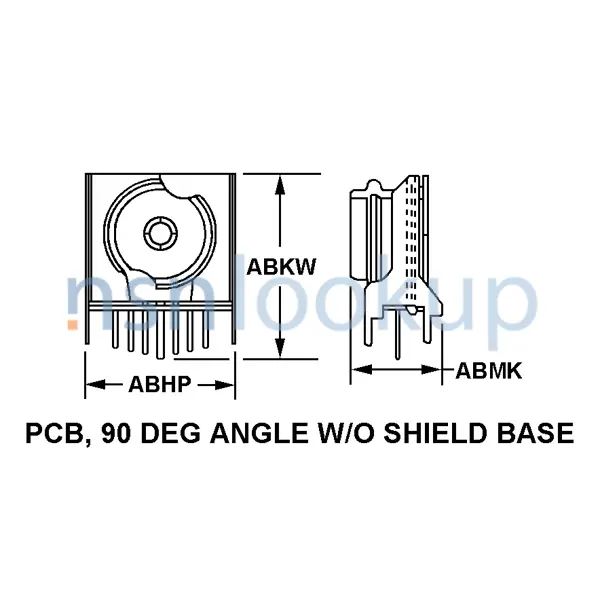

- Body Style [AAQL]
- Pcb, 90 Deg Angle W/O Shield Base
- Component Shield Mounting Method [AKWK]
- Bayonet
- Contact Material [AFRG]
- Beryllium Copper
- Contact Maximum Current Rating In Amps [AFRC]
- 1.0
- Contact Surface Treatment [AFRH]
- Gold
- Mounting Type For Which Designed [BCNX]
- Printed Circuit
- Polarization Type [AKWN]
- Contact Position
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material And Weight [PMWT]
- 0.007 Gold Grains, Troy
- Precious Material [PRMT]
- Gold
- Overall Height [ABKW]
- 1.156 Inches Nominal
- Overall Length [ABHP]
- 1.031 Inches Nominal
- Overall Width [ABMK]
- 0.400 Inches Nominal
- Specific Equipment Accommodated [AFJE]
- Electron Tube
Similar Supply Items to 5935-00-209-4062
Freight Information 5935-00-209-4062
5935-00-209-4062 has freight characteristics.. 5935-00-209-4062 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
