5935-00-204-9005
Electrical Connector Shell
5935002049005 002049005 K08-19 1-2 K08-19-1/2 575R868H02 720899-005 8786279 K08-19 1-2A101 8791765
The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR. View more Electrical Connector Shell
August 2023
31
Marketplace 5935-00-204-9005
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-204-9005 5+ Documents (More...)
K08-19-1/2 SHELL,ELECTRICAL CONNECTOR 1 EA NS Request Quotation Subscribe to View Vendor Details...
K08-19-1/2 SHELL,ELECTRICAL CONNECTOR 1 EA NS Request Quotation Updated Every Day 5935-00-204-9005 RQST
K08-19-1/2 SHELL,ELECTRICAL CONNECTOR 1 EA NS Request Quotation Updated Every Day 5935-00-794-6251 RQST
SHELL,ELECTRICAL CONNECTOR 1 EA NS Request K08-19-1/2 SHELL,ELECTRICAL CONNECTOR 1 EA NS Request
K08-19-1/2 SHELL,ELECTRICAL CONNECTOR 1 EA NS Request Quotation Updated Every Day 5935-00-901-4359 RQST
SHELL,ELECTRICAL CONNECTOR 1 EA NS Request K08-19-1/2 SHELL,ELECTRICAL CONNECTOR 1 EA NS Request
Electrical Connector Shell 5935002049005 Connector Shell5935002049005 002049005 K08-19 1-2 K08-
19-1/2 575R868H02 720899-005 8786279 K08-19 1-2A101 -1/2 SHELL,ELECTRICAL CONNECTOR 1 EA NS Request https
CONNECTOR 2 EA NS Request Quotation K08-19-1/Z SHELL,ELECTRICAL CONNECTOR -19 1-2 K08-19-1/2 Electrical
K08-19-1/2 SHELL,ELECTRICAL CONNECTOR 1 EA NS Request Quotation Updated Every Day 5935-00-794-6251 RQST
Restrictions 5935-00-204-9005
5935-00-204-9005 is a Electrical Connector Shell that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-204-9005
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-204-9005
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Supplementary Receivers:
- CL
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- US Marine Corps (MC49)
- Effective Date:
- 1 Nov 2005
- Poland (WP)
- Poland (WP01)
- Effective Date:
- 1 Jun 2011
- Malaysia (YW)
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG)
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK)
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP)
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- United States of America (ZZ)
Approved Sources 5935-00-204-9005
- Part Number
- Manufacturer
- Status
- K08-19 1-2
- Manufacturer
- 71468 - Itt Cannon Llc (Active)
- Primary Buy
- Primary Buy
- K08-19-1/2
- 71468 - Itt Cannon Llc (Active)
- Secondary Buy
- Secondary Buy
- 575R868H02
- 79500 - Westinghouse Electric Corp (Active)
- Secondary Buy
- Secondary Buy
- 720899-005
- 82577 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- 575R868H02
- 97942 - Northrop Grumman Systems Corporation (Active)
- Secondary Buy
- Secondary Buy
- K08-19-1/2
- D1371 - Itt Cannon Gesellschaft Mit (Active)
- Secondary Buy
- Secondary Buy
- 8786279
- 19204 - Army, United States Department Of (Active)
- Secondary Buy
- Secondary Buy
- K08-19 1-2A101
- 71468 - Itt Cannon Llc (Active)
- Secondary Buy
- Secondary Buy
- 8791765
- 19204 - Army, United States Department Of (Active)
- Secondary Buy
- Secondary Buy
- K08-19-1/2
- K0316 - Itt Industries Limited, Itt Cannon (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5935-00-204-9005
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Distance From Centerline To Cable End [AKFA]
- 1.078 Inches Minimum And 1.108 Inches Maximum
- Body Width [ADAT]
- 1.141 Inches Minimum And 1.171 Inches Maximum
- Cable Opening Diameter [AGTW]
- 0.516 Inches Minimum And 0.546 Inches Maximum
- Cable Opening Quantity [AKRD]
- 1
- Material [MATT]
- Aluminum Alloy
- Mounting Facility Type And Quantity [AXHR]
- 3 Clamp Assembly

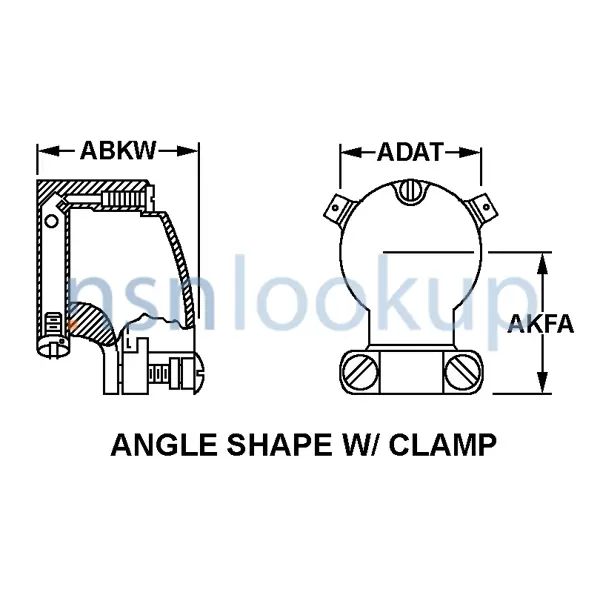

- Style Designator [STYL]
- Angle Shape W/Clamp
- Size Designation [ALJP]
- 19
- Overall Height [ABKW]
- 1.094 Inches Minimum And 1.124 Inches Maximum
- Surface Treatment [SFTT]
- Cadmium And Chromate
Weapon Systems (WSDC) 5935-00-204-9005
DLA Procurement Analysis 5935-00-204-9005
Management Data 5935-00-204-9005
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- SJ
- Surveillance Target Acquisition and Night Observation (STANO)
Air Defense Systems Support
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5935-00-204-9005
Freight Information 5935-00-204-9005
5935-00-204-9005 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-204-9005 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-204-9005 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-204-9005 is not classified as a special type of cargo when transported by water. 5935-00-204-9005 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5935-00-204-9005 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
