5935-00-204-9004
Electrical Connector Shell
5935002049004 002049004 K45-21 5-8 G350072-1 188793-3
The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR. View more Electrical Connector Shell
August 2023
22
Marketplace 5935-00-204-9004
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-204-9004 4+ Documents (More...)
NE Updated Every Day 5935-00-204-9004 RQST Updated Every Day 5935-00-204-9004 RQST NE Related Documents
5935-00-204-9004 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-204-9004
www.nsnlookup.com /fsg-59/fsc-5935/uk 5935-99-940-3397 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-204-9004
Electrical Connector Shell 5935002049004 Upgrade your Account Upgrade 5935-00-204-9004Electrical
Electrical Connector Shell 5935002049004 Account Upgrade 5935-00-204-9004Electrical Connector Shell5935002049004
002049004 K45-21 5-8 G350072-1 188793 Ledningsfoerin Kort 5999251315016251315016 Vendor Details... 322
/fsg-53/fsc-5330/us
Electrical Connector Shell 5935002049004 Account Upgrade 5935-00-204-9004Electrical Connector Shell5935002049004
002049004 K45-21 5-8 G350072-1 188793 59/fsc-5999/no 5999-25-131-5016 Ledningsfoerin Kort 5999251315016
Restrictions 5935-00-204-9004
5935-00-204-9004 is a Electrical Connector Shell that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-204-9004
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-204-9004
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Supplementary Receivers:
- CL
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Supplementary Collaborators:
- HDKE
- Malaysia (YW)
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA)
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE)
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF)
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1996
- Norway (ZT)
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- United States of America (ZZ)
Approved Sources 5935-00-204-9004
- Part Number
- Manufacturer
- Status
- K45-21 5-8
- Manufacturer
- 71468 - Itt Cannon Llc (Active)
- Primary Buy
- Primary Buy
- G350072-1
- 24930 - L3harris Technologies, Inc (Active)
- Secondary Buy
- Secondary Buy
- 188793-3
- 37695 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5935-00-204-9004
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Body Width [ADAT]
- 1.297 Inches Minimum And 1.327 Inches Maximum
- Cable Opening Diameter [AGTW]
- 0.641 Inches Minimum And 0.671 Inches Maximum
- Cable Opening Quantity [AKRD]
- 1
- Material [MATT]
- Aluminum Alloy
- Mounting Facility Type And Quantity [AXHR]
- 3 Clamp Assembly

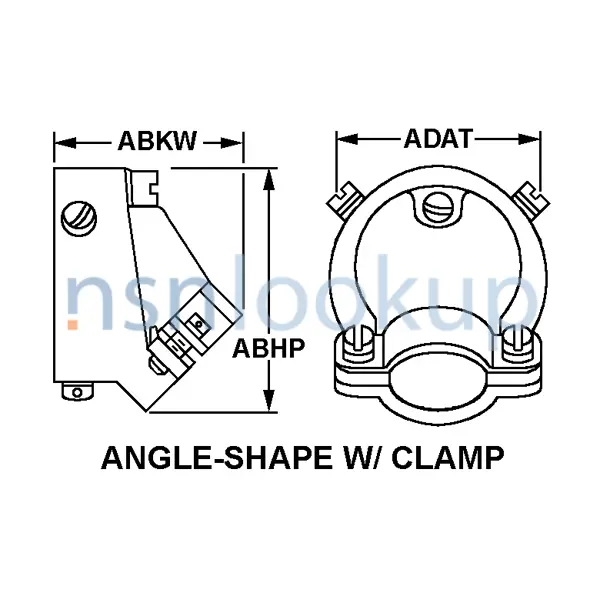

- Style Designator [STYL]
- Angle Shape W/Clamp
- Size Designation [ALJP]
- 21
- Overall Height [ABKW]
- 1.063 Inches Minimum And 1.093 Inches Maximum
- Overall Length [ABHP]
- 1.485 Inches Minimum And 1.515 Inches Maximum
- Surface Treatment [SFTT]
- Cadmium And Chromate
Weapon Systems (WSDC) 5935-00-204-9004
DLA Procurement Analysis 5935-00-204-9004
Management Data 5935-00-204-9004
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- QK
- Avionics
Air Traffic Control (ATC) Support
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-204-9004
Freight Information 5935-00-204-9004
5935-00-204-9004 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-204-9004 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-204-9004 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-204-9004 is not classified as a special type of cargo when transported by water. 5935-00-204-9004 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5935-00-204-9004 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
