5935-00-204-7919
Electrical Plug Connector
5935002047919 002047919 67A32A257-1 9157604 3532 588D112-4 330C855H12 616776-01REVA 7606880P4 26-4301-8S363 26-4301-8S338 26-4301-8S 9975273
An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Plug Connector
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
41
41
NATO Data Quality
Marketplace 5935-00-204-7919
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
26-4301-8S363 CONNECTOR,PLUG,ELECTRICAL 10 EA NS
9157604 CONNECTOR,PLUG,ELECTRICAL RQST NS
26-4301-8S338 CONNECTOR,PLUG,ELECTRICAL 10 EA NS
26-4301-8S CONNECTOR,PLUG,ELECTRICAL 10 EA NS
Updated Every Day 5935-00-204-7919 RQST NE
Updated Every Day 5935-00-204-7919 RQST
Updated Every Day 5935-00-204-7919 RQST NE
Related Documents 5935-00-204-7919 5+ Documents (More...)
67A32A257-1 9157604 3532 9975273 588D112-4 330C855H12 616776-01REVA 7606880P4 26-4301-8S363 26-4301-
View Vendor Details... 26-4301-8S363 CONNECTOR,PLUG,ELECTRICAL 10 EA NS Request Quotation 9157604 CONNECTOR
26-4301-8S CONNECTOR,PLUG,ELECTRICAL 3 EA NS Request Quotation Subscribe to View Vendor Details... 26
View Vendor Details... 26-4301-8S363 CONNECTOR,PLUG,ELECTRICAL 10 EA NS Request Quotation 9157604 CONNECTOR
26-4301-8S CONNECTOR,PLUG,ELECTRICAL 3 EA NS Request Quotation Subscribe to View Vendor Details... 26
5935-99-522-9119Electrical Plug Connector5935995229119 995229119 Cancelled - Replaced by NSN 5935-00-204-7919
21-921-7785 9 Millimeter Cartridge 1305219217785,9975273 Active) Secondary Buy RNCC 5 RNVC 2 DAC 6 9975273
Electrical Plug Connector 5935002047919 Quotation Subscribe to View Vendor Details... 26 https/
21-921-7785 9 Millimeter Cartridge 1305219217785,9975273 Active) Secondary Buy RNCC 5 RNVC 2 DAC 6 9975273
Electrical Plug Connector 5935002047919 Quotation Subscribe to View Vendor Details... 26 https/
99 EA NS Request Quotation Subscribe to View Vendor Details... 26-4301-8S CONNECTOR,PLUG,ELECTRICAL
1 EA NS Request Quotation Subscribe to View Vendor Details... 9157604 CONNECTOR,PLUG,ELECTRICAL RQST
NS Request Quotation Subscribe to View Vendor Details... 26-4301-8S363 CONNECTOR,PLUG,ELECTRICAL 1 EA
1 EA NS Request Quotation Subscribe to View Vendor Details... 9157604 CONNECTOR,PLUG,ELECTRICAL RQST
NS Request Quotation Subscribe to View Vendor Details... 26-4301-8S363 CONNECTOR,PLUG,ELECTRICAL 1 EA
99 EA NS Request Quotation Subscribe to View Vendor Details... 26-4301-8S CONNECTOR,PLUG,ELECTRICAL
1 EA NS Request Quotation Subscribe to View Vendor Details... 9157604 CONNECTOR,PLUG,ELECTRICAL RQST
NS Request Quotation Subscribe to View Vendor Details... 26-4301-8S363 CONNECTOR,PLUG,ELECTRICAL 1 EA
1 EA NS Request Quotation Subscribe to View Vendor Details... 9157604 CONNECTOR,PLUG,ELECTRICAL RQST
NS Request Quotation Subscribe to View Vendor Details... 26-4301-8S363 CONNECTOR,PLUG,ELECTRICAL 1 EA
99 EA NS Request Quotation Subscribe to View Vendor Details... 26-4301-8S CONNECTOR,PLUG,ELECTRICAL
1 EA NS Request Quotation Subscribe to View Vendor Details... 9157604 CONNECTOR,PLUG,ELECTRICAL RQST
NS Request Quotation Subscribe to View Vendor Details... 26-4301-8S363 CONNECTOR,PLUG,ELECTRICAL 1 EA
1 EA NS Request Quotation Subscribe to View Vendor Details... 9157604 CONNECTOR,PLUG,ELECTRICAL RQST
NS Request Quotation Subscribe to View Vendor Details... 26-4301-8S363 CONNECTOR,PLUG,ELECTRICAL 1 EA
Restrictions 5935-00-204-7919
5935-00-204-7919 is a Electrical Plug Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-204-7919
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-204-7919
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Supplementary Receivers:
- CL
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- US Marine Corps (MC49)
- Effective Date:
- 1 Nov 2005
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Supplementary Collaborators:
- HDKE
- Poland (WP)
- Poland (WP01)
- Effective Date:
- 1 Jun 2011
- Brazil (YA)
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE)
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK)
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR)
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- United States of America (ZZ)
Approved Sources 5935-00-204-7919
- Part Number
- Manufacturer
- Status
- 9157604
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- 3532
- 62035 - The Bechdon Company, Llc (Active)
- Secondary Buy
- Secondary Buy
- 588D112-4
- 94033 - Cardwell Condenser Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 330C855H12
- 79500 - Westinghouse Electric Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 330C855H12
- 97942 - Northrop Grumman Systems Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 616776-01REVA
- 56232 - Lockheed Martin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 7606880P4
- 03538 - Lockheed Martin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 26-4301-8S363
- 02660 - Amphenol Corp Spectra-Strip/Itd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 26-4301-8S338
- 02660 - Amphenol Corp Spectra-Strip/Itd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 26-4301-8S
- 02660 - Amphenol Corp Spectra-Strip/Itd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 9975273
- 18876 - Us Army Aviation And Missile Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 67A32A257-1
- 02387 - Naval Air Warfare Center Aircraft (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-204-7919
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Cable Entrance Diameter [AFQJ]
- 0.312 Inches Maximum
- Connector Locking Method [AFRV]
- Latch
- Connector Cable Strain Relief Method [AFRW]
- Cable Clamp
- Contact Material [CQTZ]
- Copper Alloy Single Mating End Single Contact Grouping
- Contact Maximum Current Rating In Amps [AFRC]
- 5.0 Single Mating End Single Contact Grouping
- Contact Position Arrangement Style [AFQX]
- 8 Single Mating End
- Contact Removability [AFQZ]
- Nonremovable Single Mating End Single Contact Grouping
- Contact Maximum Dc Voltage Rating In Volts [AFRE]
- 800.0 Single Mating End Single Contact Grouping
- Contact Surface Treatment Document And Classification [CRBJ]
- Mil-G-45204 Mil Spec Single Treatment Response Single Mating End Single Contact Grouping
- Contact Surface Treatment [CQYH]
- Gold Single Mating End Single Contact Grouping

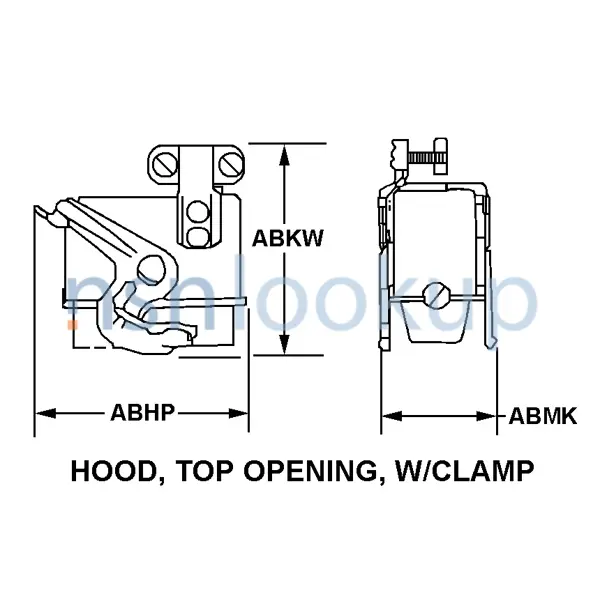

- Body Style [AAQL]
- Hood, Top Opening, W/Clamp
- Mating End Quantity [AFQW]
- 1
- Included Contact Quantity [CXCG]
- 8 Single Mating End Single Contact Grouping
- Included Contact Type [CXCL]
- Leaf Spring Single Mating End Single Contact Grouping
- Insert Material Document And Classification [CTKL]
- Mil-M-14,Ty Sdg Mil Spec Single Material Response Single Mating End
- Insert Material [CQZG]
- Plastic Diallyl Phthalate Single Mating End
- Polarization Method [AFRN]
- Shell
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material And Weight [PMWT]
- 0.008 Gold Grains, Troy
- Precious Material [PRMT]
- Gold
- Shell Guide Type And Location Designator [CTMB]
- A Pin And 1 Pin
- Shell Surface Treatment [CSWM]
- Nickel
- Shell Type [AFRT]
- Hood, Top Opening
- Shell Material [CSPT]
- Copper Alloy
- Overall Height [ABKW]
- 2.059 Inches Nominal
- Overall Length [ABHP]
- 1.438 Inches Nominal
- Overall Width [ABMK]
- 1.275 Inches Maximum
- Special Features [FEAT]
- Polarization Position 1
- Terminal Location [CQTM]
- Back Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Tab, Solder Lug Single Mating End Single Contact Grouping
Weapon Systems (WSDC) 5935-00-204-7919
DLA Procurement Analysis 5935-00-204-7919
Management Data 5935-00-204-7919
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5935-00-204-7919
Freight Information 5935-00-204-7919
5935-00-204-7919 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-204-7919 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-204-7919 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-204-7919 is not classified as a special type of cargo when transported by water. 5935-00-204-7919 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5935-00-204-7919 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
