5935-00-204-7883
Plug-In Electronic Components Socket
5935002047883 002047883 3146639 10219985 028-3001
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
6
Marketplace 5935-00-204-7883
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-204-7883 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-204-7883 (Identification) 2/3 NSN 5935-00-204-7883 (Identification
RQST NE Updated Every Day 5935-00-204-7883 RQST Updated Every Day 5935-00-204-7883 RQST NE Related
RQST NE Related Documents 3815-00-028-3001 2+ Documents ( More RQST Updated Every Day 3815-00-028-3001
3815-00-028-3001 Marketplace Restrictions Approved https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935
/fsg-84/fsc-8405/tr 8405-27-028-3001 8405-27-028-3001 RQST NE Related Documents 8405-27-028-3001 3+
www.nsnlookup.com /fsg-84/fsc-8405/tr 8405-27-028-3001 Man's Vest 84052702830012702830018405-27-028-3001
Plug-In Electronic Components Socket PMIC : A | EDC: | ADPEC : 0 1350-01-028-3001 is a https//www.nsnlookup.com
RQST NE Related Documents 1350-01-028-3001 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-13
DEMIL: D | DEMILI : 1 | CRITICALITY : | HMIC : N | PMIC : A | EDC: | ADPEC : 0 1350-01-028-3001 is a
Restrictions 5935-00-204-7883
5935-00-204-7883 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-204-7883
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-204-7883
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Supplementary Collaborators:
- HDKE
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN)
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- United States of America (ZZ)
Approved Sources 5935-00-204-7883
- Part Number
- Manufacturer
- Status
- 10219985
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- 028-3001
- 98291 - Itt Cannon Rf Products (Active)
- Secondary Buy
- Secondary Buy
- 3146639
- 53711 - Naval Sea Systems Command (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-204-7883
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 8
- Body Material [AAFZ]
- Plastic
- Body Style [AAQL]
- Top Mount, Press Fit
- Contact Material [AFRG]
- Brass

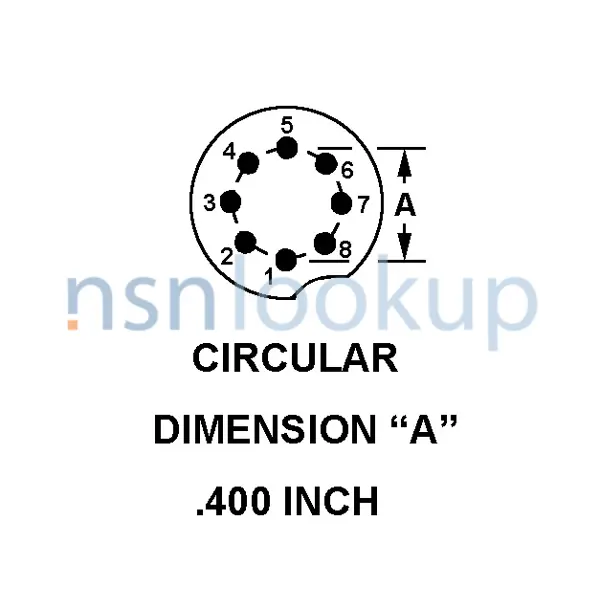

- Contact Position Arrangement Style [CRPY]
- Circular .400 Inch
- Contact Surface Treatment [AFRH]
- Gold And Silver
- Mounting Hole Style [AEVB]
- Round, Body
- Mounting Method [AXGY]
- Press Fit
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Slot
- Precious Material And Location [PMLC]
- Contact Surfaces Gold And Contact Surfaces Silver
- Precious Material And Weight [PMWT]
- 0.008 Gold Grains, Troy And 0.008 Silver Grains, Troy
- Precious Material [PRMT]
- Gold And Silver
- Projection Length Above Mounting Surface [AKXD]
- 0.075 Inches Minimum And 0.085 Inches Maximum
- Overall Height [ABKW]
- 0.296 Inches Nominal
- Terminal Length [ABJT]
- 0.116 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 8 Solder Well
DLA Procurement Analysis 5935-00-204-7883
Management Data 5935-00-204-7883
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-204-7883
Freight Information 5935-00-204-7883
5935-00-204-7883 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-204-7883 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-204-7883 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-204-7883 is not classified as a special type of cargo when transported by water. 5935-00-204-7883 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5935-00-204-7883 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
