5935-00-204-6389

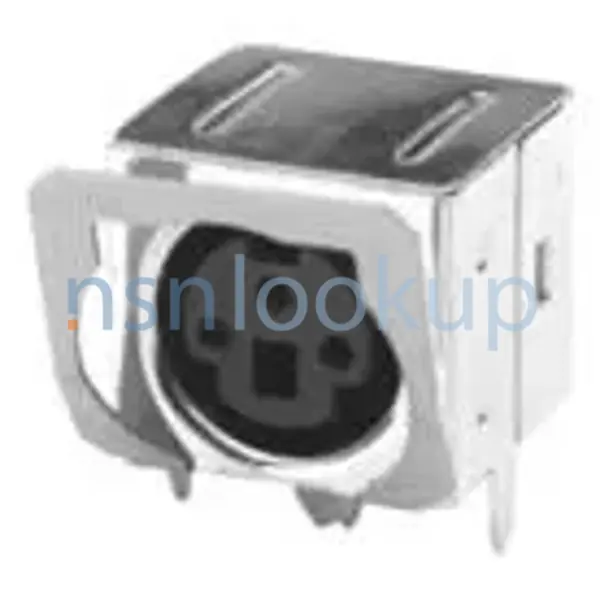

Connector Adapter
5935002046389 002046389 SM-C-283179 357-9216-00 357-9216-000 309A4010 47200 4282
An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction.It is not designed for permanent attachment to a cable, cord, coaxial line, or wire.The physical shape of an electrical connector should not be the determining factor of its name.Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR.Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER.For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT. View more Connector Adapter
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
August 2023
August 2023
NATO Update Count
37
37
NATO Data Quality
Marketplace 5935-00-204-6389
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
5935-00-204-6389 ADAPTER,CONNECTOR RQST NS
357-9216-00 ADAPTER,CONNECTOR RQST NS
SM-C-283179 ADAPTER,CONNECTOR RQST NS
47200 ADAPTER,CONNECTOR 44 EA NS
Updated 22 Days Ago
47200 ADAPTER 1 EA NS
Updated Every Day 5935-00-204-6389 RQST NE
Updated Every Day 5935-00-204-6389 RQST
Updated Every Day 5935-00-204-6389 RQST NE
Related Documents 5935-00-204-6389 5+ Documents (More...)
SM-C-283179 357-9216-00 357-9216-000 309A4010 47200 4282 An adapter with electrical contacts which provides
,CONNECTOR RQST NS Request Quotation 357-9216-00 ADAPTER,CONNECTOR RQST NS Request Quotation SM-C-283179
Details... 47200 ADAPTER,CONNECTOR 3 EA NS Request Quotation Subscribe to View Vendor Details... 4282
,CONNECTOR RQST NS Request Quotation 357-9216-00 ADAPTER,CONNECTOR RQST NS Request Quotation SM-C-283179
Details... 47200 ADAPTER,CONNECTOR 3 EA NS Request Quotation Subscribe to View Vendor Details... 4282
SM-C-283179 ADAPTER,CONNECTOR RQST NS Request Quotation 357-9216-00 ADAPTER,CONNECTOR RQST NS Request
Details... 4282 ADAPTER,CONNECTOR 21 EA NS Request Quotation 47200 ADAPTER,CONNECTOR 69 EA NS Request
to View Vendor Details... 47200 ADAPTER,CONNECTOR 4 EA NS Request Quotation Subscribe to View Vendor
Details... 4282 ADAPTER,CONNECTOR 21 EA NS Request Quotation 47200 ADAPTER,CONNECTOR 69 EA NS Request
to View Vendor Details... 47200 ADAPTER,CONNECTOR 4 EA NS Request Quotation Subscribe to View Vendor
Upgrade your Account Upgrade 5945-01-483-7661Electromagnetic Relay5945014837661 014837661 12477532 47200
10 EA NS Request Quotation Subscribe to View Vendor Details... 47200 RELAY,ELECTROMAGNETIC 69 EA NS
RELAY,ELECTROMAGNETIC 2 EA NS Request Quotation 47200 RELAY,ELECTROMAGNETIC 2 EA NS Request Quotation
10 EA NS Request Quotation Subscribe to View Vendor Details... 47200 RELAY,ELECTROMAGNETIC 69 EA NS
RELAY,ELECTROMAGNETIC 2 EA NS Request Quotation 47200 RELAY,ELECTROMAGNETIC 2 EA NS Request Quotation
119-0286 5935-01-119-0332 5935-00-140-0073 5935-22-112-9554 5935-00-168-1460 5935-01-119-0321 5935-00-204-6389
119-0286 5935-01-119-0332 5935-00-140-0073 5935-22-112-9554 5935-00-168-1460 5935-01-119-0321 5935-00-204-6389
Restrictions 5935-00-204-6389
5935-00-204-6389 is a Connector Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5935-00-204-6389
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-204-6389
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Supplementary Receivers:
- CL
- MOE Rule:
- BGX1
- Effective Date:
- 1 Nov 2005
- US Coast Guard (C911)
- Effective Date:
- 1 Nov 2005
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- US Marine Corps (MC49)
- Effective Date:
- 1 Nov 2005
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Supplementary Collaborators:
- GTJB
- MOE Rule:
- RGX1
- Effective Date:
- 1 Jun 2012
- MOE Rule:
- S911
- Effective Date:
- 1 Nov 2005
- Austria (WB)
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA)
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Saudi Arabia (YS01)
- Effective Date:
- 1 Feb 2015
- Malaysia (YW)
- Malaysia (YW01)
- Effective Date:
- 1 Aug 2007
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK)
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR)
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS)
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- United States of America (ZZ)
Approved Sources 5935-00-204-6389
- Part Number
- Manufacturer
- Status
- SM-C-283179
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- 357-9216-00
- 95105 - Rockwell Collins, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 357-9216-000
- 95105 - Rockwell Collins, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 309A4010
- 1VPW8 - General Dynamics Mission Systems, (Active)
- Secondary Buy
- Secondary Buy
- 47200
- 74868 - Amphenol Corporation (Active)
- Secondary Buy
- Secondary Buy
- 4282
- 94375 - Lax Electronics, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 309A4010
- 94990 - Motorola Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 47200
- 95689 - Woodstock Die Casting (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-204-6389
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Body Style [AAQL]
- Straight Shape Quick Connect
- Overall Length [ABHP]
- 1.125 Inches Nominal
- Overall Width [ABMK]
- 0.595 Inches Nominal
- Bushing Accommodation Hole Shape [CXCJ]
- Round W/Flat
- Connector Locking Method [AFRV]
- Bayonet Pin
- Threaded Device Type [AFQR]
- Mounting Bushing
- Thread Series Designator [THSD]
- Unf
- Nominal Thread Size [CQJX]
- 0.375 Inches
- Thread Class [AAJD]
- 2A
- Thread Quantity Per Inch [CMLP]
- 24
- Thread Direction [AAJF]
- Right-Hand
- Shell Type [AFRT]
- Solid
- Shell Material [CSPT]
- Copper Alloy
- Shell Surface Treatment [CSWM]
- Silver
- Shell Surface Treatment Document And Classification [CTBC]
- Mil-F-14072 Mil Spec Single Treatment Response
- Mating End Quantity [AFQW]
- 2
- Contact Position Arrangement Style [AFQX]
- Bnc 1St Mating End
- Contact Position Arrangement Style [AFQX]
- Mb 2Nd Mating End
- Insert Material [CQZG]
- Plastic Tetrafluoroethylene Single Mating End
- Included Contact Quantity [CXCG]
- 1 1St Mating End All Contact Groupings
- Included Contact Quantity [CXCG]
- 1 2Nd Mating End All Contact Groupings
- Contact Removability [AFQZ]
- Nonremovable All Mating Ends All Contact Groupings
- Included Contact Type [CXCL]
- Coaxial Socket All Mating Ends All Contact Groupings
- Contact Maximum Ac Voltage Rating In Volts [AFRD]
- 500.0 All Mating Ends All Contact Groupings
- Radio Frequency Type Contact Characteristic Impedance In Ohms [AFRY]
- 50.0 All Mating Ends All Contact Groupings
- Contact Surface Treatment [CQYH]
- Silver All Mating Ends All Contact Groupings
- Environmental Protection [ADZC]
- Pressure Proof
- Precious Material [PRMT]
- Silver
- Precious Material And Weight [PMWT]
- 0.110 Silver Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surface And Body Surface Silver
Weapon Systems (WSDC) 5935-00-204-6389
DLA Procurement Analysis 5935-00-204-6389
Management Data 5935-00-204-6389
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Apr 2020
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5935-00-879-9427
- 4
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- TP
- Other Electronics Equipment
Other Cmds' Systems
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
