5935-00-201-7119
Plug-In Electronic Components Socket
5935002017119 002017119 8879 241 292-0082-00
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
32
Marketplace 5935-00-201-7119
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5935-00-201-7119 5+ Documents (More...)
and mechanically position the base of RQST Updated Every Day 5975-01-241-8879 5975-01-241-8879 Electricalgrounding
(241)A8652TH-192EL2SB us 5935-00-201-7119 https//www.nsnlookup.com /fsg-70/fsc-7025/it 7025-15-204-8879
RQST Updated Every Day 5975-01-241-8879 RQST NE Related Documents 5975-01-241-8879 5+ Documents ( More
5975-01-241-8879 Electricalgrounding Plate 5975012418879 RQST Updated Every Day 5975-01-241-8879 RQST
/fsg-70/fsc-7025/it 7025-15-204-8879 Display Unit 7025152048879152048879 TH-192EL2SB (241)A8652TH-192EL2SB
Components Socket,8879 www.nsnlookup.com /fsg-59/fsc-5975/us 5975-01-241-8879 https//www.nsnlookup.com
/fsg-65/fsc-6515/it 6515-15-200-8879 https//www.nsnlookup.com /fsg-59/fsc-5975/us 5975-01-241-8879 Electricalgrounding
fsc-6515/it 6515-15-200-8879 https//www.nsnlookup.com /fsg-76/fsc-7610/it 7610-15-197-8879 Technical
Two or more sheets, written or printed https//www.nsnlookup.com /fsg-59/fsc-5975/us 5975-01-241-8879
-15-197-8879 Technical Manual 7610151978879151978879 computer https fsc-7610/it 7610-15-197-8879 https
Restrictions 5935-00-201-7119
5935-00-201-7119 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-00-201-7119
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-201-7119
- Spain (YB01)
- Effective Date:
- 5 Apr 1992
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5935-00-201-7119
- Part Number
- Manufacturer
- Status
- 8879
- Manufacturer
- 72825 - Eby Group, Llc, The (Active)
- Incomplete Reference
- Incomplete Reference
- 292-0082-00
- 13499 - Rockwell Collins, Inc. (Active)
- Primary Buy
- Primary Buy
- 241
- 80138 - Kay Elemetrics Corporation (Active)
- Secondary Buy
- Secondary Buy
- 292-0082-00
- 55631 - Scomill Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 8879
- 00629 - Eby Sales Co Inc Of New York (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-201-7119
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 2
- Body Material [AAFZ]
- Ceramic
- Body Mounting Hole Accommodation Length [ADAJ]
- 0.859 Inches Nominal
- Body Style [AAQL]
- Crystal, Top Or Bottom Mount
- Contact Material [AFRG]
- Phosphor Bronze Or Beryllium Copper
- Contact Position Arrangement Style [CRPY]
- In Line
- Contact Surface Treatment [AFRH]
- Any Acceptable

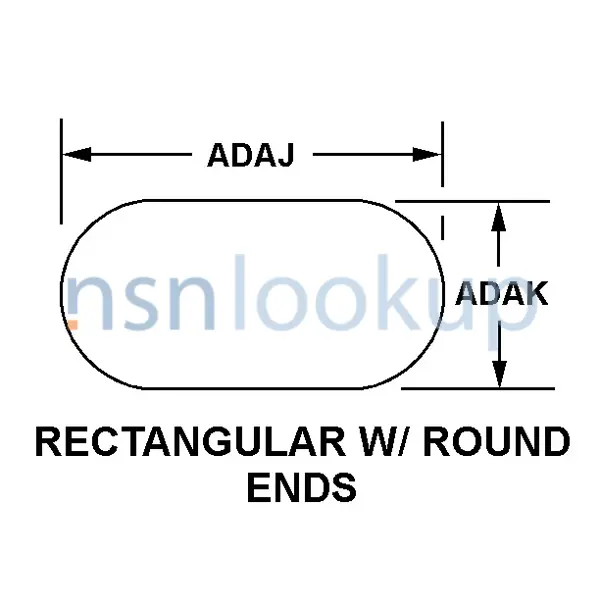

- Mounting Hole Style [AEVB]
- Rectangular W/Round Ends
- Mounting Method [AXGY]
- Body Through Hole
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Contact Shape
- Projection Length Below Mounting Surface [AKXC]
- 0.297 Inches Nominal
- Overall Height [ABKW]
- 0.672 Inches Nominal
- Overall Length [ABHP]
- 0.859 Inches Nominal
- Specific Equipment Accommodated [AFJE]
- Crystal Holder
- Terminal Type And Quantity [TTQY]
- 2 Tab, Solder Lug
DLA Procurement Analysis 5935-00-201-7119
Management Data 5935-00-201-7119
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Dec 2007
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Jun 1992
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- Z
- Discontinued-Use 5935-00-581-6941
- Z
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- E2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5935-00-201-7119
Freight Information 5935-00-201-7119
5935-00-201-7119 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-201-7119 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-201-7119 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5935-00-201-7119 is not classified as a special type of cargo when transported by water. 5935-00-201-7119 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5935-00-201-7119 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
