5935-00-201-4335
Plug-In Electronic Components Socket
5935002014335 002014335 ST0142 SCB35779 SF0142 10-1166-13-00-3 10-1160-130-00 SF0142L US6837 SF0142-52 US6831
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
30
Marketplace 5935-00-201-4335
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-201-4335 1+ Documents (More...)
(Identification) 1/3 NSN 5935-00-201-4335 (Identification) 2/3 NSN 5935-00-201-4335 (Identification
-52US6831 An item designed (Identification) 1/3 NSN 5935-00-201-4335 (Identification) 2/3 NSN 5935-00
Restrictions 5935-00-201-4335
5935-00-201-4335 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-201-4335
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-201-4335
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- NIND
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-00-201-4335
- Part Number
- Manufacturer
- Status
- US6837
- Manufacturer
- 79201 - Warwick Electronics Inc (Obsolete)
- Original Design
- Original Design
- ST0142
- 3E191 - Rauland-Borg Corp (Active)
- Secondary Buy
- Secondary Buy
- SCB35779
- 80063 - Us Army Communications & Electronics (Active)
- Secondary Buy
- Secondary Buy
- SF0142
- 3E191 - Rauland-Borg Corp (Active)
- Secondary Buy
- Secondary Buy
- 10-1166-13-00-3
- D1901 - Hensoldt Sensors Gmbh (Active)
- Secondary Buy
- Secondary Buy
- 10-1160-130-00
- D1901 - Hensoldt Sensors Gmbh (Active)
- Secondary Buy
- Secondary Buy
- SF0142L
- 36004 - Lewyt Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- US6837
- 94564 - Warwick Co The (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- SF0142-52
- 36004 - Lewyt Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- US6831
- 57057 - Navcom Defense Electronics, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-201-4335
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

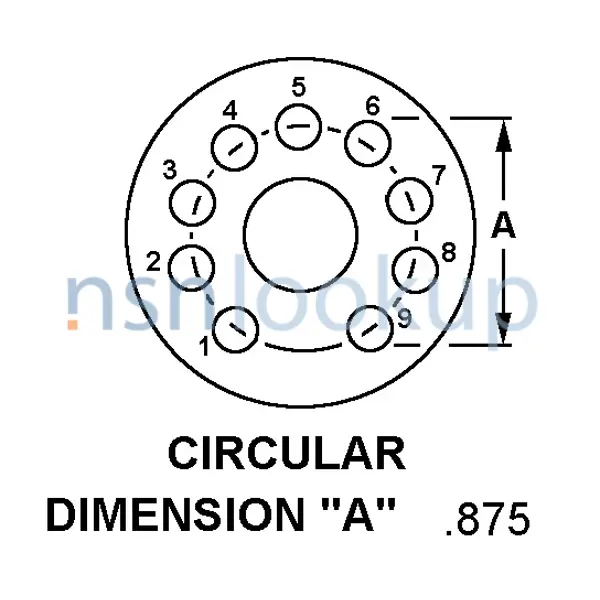

- Contact Position Arrangement Style [CRPY]
- Circular
- Accommodated Contact Quantity [AFRL]
- 9
- Contact Material [AFRG]
- Any Acceptable
- Contact Surface Treatment [AFRH]
- Any Acceptable
- Body Style [AAQL]
- Top Mount W/Metal Saddle And Shield Base
- Overall Length [ABHP]
- 1.896 Inches Nominal
- Overall Height [ABKW]
- 0.905 Inches Nominal
- Overall Width [ABMK]
- 1.418 Inches Nominal
- Projection Length Below Mounting Surface [AKXC]
- 0.312 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 9 Solder Well
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Hole Style [AEVB]
- Slot Four Mounting Holes/Slots On Bolt Circle
- Mounting Hole Diameter [ABTB]
- 0.187 Inches Nominal
- Mounting Bolt Circle Diameter [AFFL]
- 0.359 Inches Nominal
- Polarization Type [AKWN]
- Contact Position
DLA Procurement Analysis 5935-00-201-4335
Management Data 5935-00-201-4335
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5935-00-201-4335
Freight Information 5935-00-201-4335
5935-00-201-4335 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-201-4335 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-201-4335 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5935-00-201-4335 is not classified as a special type of cargo when transported by water. 5935-00-201-4335 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
