5935-00-197-4687
Plug-In Electronic Components Socket
5935001974687 001974687 SM-C-2007021 8058-1G31 01200-0196
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
August 2023
26
Marketplace 5935-00-197-4687
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-197-4687 2+ Documents (More...)
(Identification) 1/3 NSN 5935-00-197-4687 (Identification) 2/3 NSN 5935-00-197-4687 (Identification
5935-00-197-4687 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-197-4687
Components Socket Account Upgrade 5935-00-197-4687Plug-In Electronic Components Socket5935001974687 001974687
SM-C-2007021 www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-197-4687 https//www.nsnlookup.com /fsg-75
Restrictions 5935-00-197-4687
5935-00-197-4687 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains a combination of two or more precious metals.
Import and Export 5935-00-197-4687
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-197-4687
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HDKE
- Poland (WP01)
- Effective Date:
- 1 Jan 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-197-4687
- Part Number
- Manufacturer
- Status
- SM-C-2007021
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- 8058-1G31
- 91506 - Augat Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 01200-0196
- 12848 - Solrac Ii Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 8058-1G31
- 27014 - National Semiconductor Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-197-4687
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 10
- Body Material [AAFZ]
- Plastic
- Body Style [AAQL]
- Top Mount, Press Fit
- Contact Material [AFRG]
- Beryllium Copper
- Contact Maximum Current Rating In Amps [AFRC]
- 1.0
- Contact Position Arrangement Style [CRPY]
- Circular
- Contact Surface Treatment [AFRH]
- Gold And Silver
- Fabrication Method [AARN]
- Molded
- Fsc Application Data [ZZZV]
- Connectors,Electrical
- Mounting Method [AXGY]
- Terminal
- Mounting Type For Which Designed [BCNX]
- Printed Circuit
- Overall Diameter [ADAV]
- 0.390 Inches Minimum And 0.410 Inches Maximum
- Polarization Type [AKWN]
- Colored Dot
- Precious Material And Location [PMLC]
- Contact Surface Gold And Contact Surface Silver
- Precious Material And Weight [PMWT]
- 0.010 Gold Grains, Troy And 0.010 Silver Grains, Troy
- Precious Material [PRMT]
- Gold And Silver

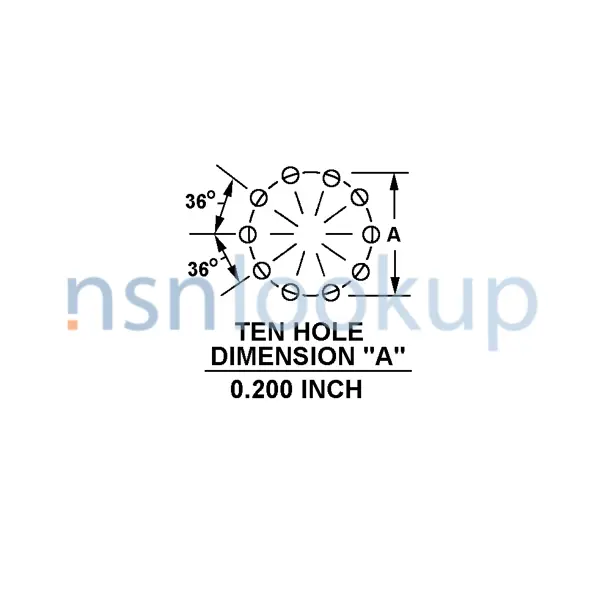

- Printed Circuit Board Hole Arrangement Style [AKWJ]
- Ten Hole Dimension "A" 0.200 Inch
- Projection Length Above Mounting Surface [AKXD]
- 0.046 Inches Minimum And 0.078 Inches Maximum
- Overall Height [ABKW]
- 0.544 Inches Minimum And 0.626 Inches Maximum
- Specific Equipment Accommodated [AFJE]
- Relay
- Temp Rating [ABJH]
- -65.0 Deg Celsius And 150.0 Deg Celsius
- Terminal Length [ABJT]
- 0.286 Inches Minimum And 0.348 Inches Maximum
- Terminal Type And Quantity [TTQY]
- 10 Pin
Weapon Systems (WSDC) 5935-00-197-4687
DLA Procurement Analysis 5935-00-197-4687
Management Data 5935-00-197-4687
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-197-4687
Freight Information 5935-00-197-4687
5935-00-197-4687 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-197-4687 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-197-4687 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-197-4687 is not classified as a special type of cargo when transported by water. 5935-00-197-4687 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-197-4687
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
