5935-00-188-7039
Electrical Connector Jackscrew
5935001887039 001887039 578R603H04 1303C-WC
A locking device specifically designed to secure engaged electrical connectors. Its mating end is either internally or externally threaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. It may be equipped with a knob, slotted head, knurled head, or the like. View more Electrical Connector Jackscrew
November 2023
16
Marketplace 5935-00-188-7039
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-188-7039 1+ Documents (More...)
United States (US) 4. 5935-00-188-7039 Marketplace Restrictions Approved Sources Datasheet Management
Updated Every Day 5935-00-188-7039 RQST Updated Every Day 5935-00-188-7039 RQST NE Related Documents
Restrictions 5935-00-188-7039
5935-00-188-7039 is a Electrical Connector Jackscrew that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5935-00-188-7039
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-188-7039
- US Air Force (FXGX)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXTX
- Poland (WP01)
- Effective Date:
- 1 Jul 2006
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Nov 2011
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5935-00-188-7039
- Part Number
- Manufacturer
- Status
- 578R603H04
- Manufacturer
- 97942 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
- 1303C-WC
- 81312 - Winchester Interconnect Corporation (Active)
- Secondary Buy
- Secondary Buy
- 1303C-WC
- 97954 - U S Components Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-188-7039
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Material [MATT]
- Steel Corrosion Resisting
- Mounting Facility Type And Quantity [AXHR]
- 1 Body

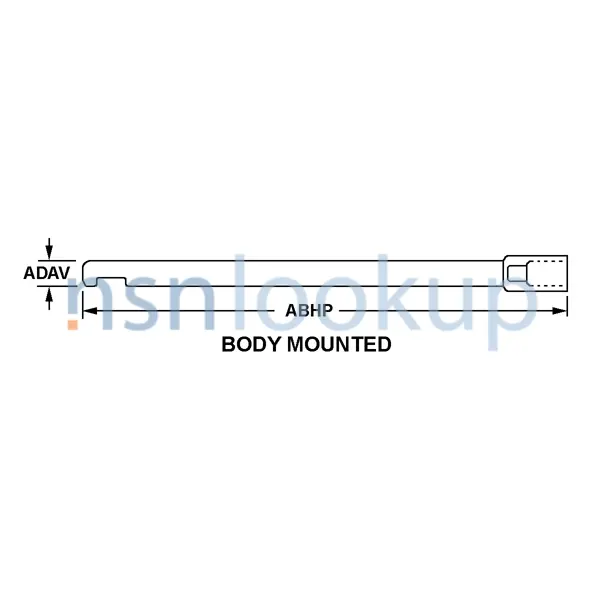

- Overall Diameter [ADAV]
- 0.125 Inches Nominal
- Overall Length [ABHP]
- 0.812 Inches Nominal
- Style Designator [STYL]
- Body Mounted
- Surface Treatment [SFTT]
- Passivate
Weapon Systems (WSDC) 5935-00-188-7039
DLA Procurement Analysis 5935-00-188-7039
- Last Stock Position:
- 13 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5935-00-188-7039
Similar Supply Items to 5935-00-188-7039
Freight Information 5935-00-188-7039
5935-00-188-7039 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-188-7039 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-188-7039 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-188-7039 is not classified as a special type of cargo when transported by water. 5935-00-188-7039 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-188-7039
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5935-00-188-7039 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- R
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
