5935-00-187-1938
Plug-In Electronic Components Socket
5935001871938 001871938 027-1704-00-0-239 1995066-1 027-1704
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
2
Marketplace 5935-00-187-1938
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5935-00-187-1938 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-187-1938 (Identification) 2/3 NSN 5935-00-187-1938 (Identification
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 027-1704
Request a Quotation from participating marketplace vendors Request Related Documents 5910-00-027-1704
/fsg-59/fsc-5940/tr 5940-27-027-1704 https//www.nsnlookup.com /fsg-59/fsc-5910/us 5910-00-027-1704 5910000271704000271704
5940-27-027-1704 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5940/tr 5940-27-027-1704
/fsg-59/fsc-5940/tr 5940-27-027-1704 5940-27-027-1704 RQST NE Related Documents 5940-27-027-1704 3+
RQST NE Related Documents 5895-01-027-1704 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-58
Plug-In Electronic Components Socket 1704 RQST NE Related Documents 5940-27-027-1704 3+ https//
Request a Quotation from participating marketplace vendors Request Updated Every Day 1005-17-027-1704
RQST NE Updated Every Day 1005-17-027-1704 RQST Updated Every Day 1005-17-027-1704 RQST NE Restrictions
Restrictions 5935-00-187-1938
5935-00-187-1938 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-187-1938
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-187-1938
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HDKE
Approved Sources 5935-00-187-1938
- Part Number
- Manufacturer
- Status
- 027-1704-00-0-239
- Manufacturer
- 98291 - Itt Cannon Rf Products (Active)
- Primary Buy
- Primary Buy
- 1995066-1
- 55972 - Honeywell Intl Inc (Active)
- Secondary Buy
- Secondary Buy
- 1995066-1
- 19315 - Honeywell Intl Inc Defense Avionics (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 027-1704
- 98291 - Itt Cannon Rf Products (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-187-1938
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Distance From Flatted Portion To Opposite Surface [AKXE]
- 0.232 Inches Nominal
- Accommodated Contact Quantity [AFRL]
- 4
- Body Material [AAFZ]
- Plastic
- Body Mounting Hole Accommodation Diameter [ADAL]
- 0.252 Inches Nominal
- Body Style [AAQL]
- Top Mount, Press Fit
- Contact Material [AFRG]
- Beryllium Copper

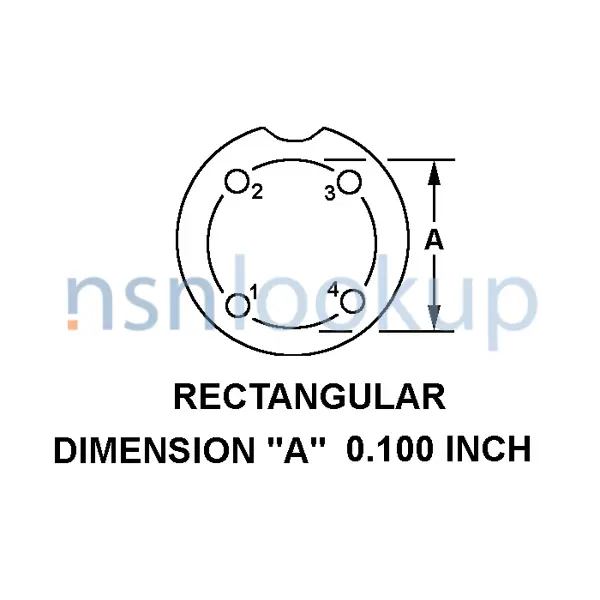

- Contact Position Arrangement Style [CRPY]
- Rectangular
- Contact Surface Treatment [AFRH]
- Gold And Copper
- Mounting Hole Style [AEVB]
- Round, Flatted
- Mounting Method [AXGY]
- Press Fit
- Mounting Type For Which Designed [BCNX]
- Printed Circuit
- Overall Diameter [ADAV]
- 0.281 Inches Nominal
- Polarization Type [AKWN]
- Slot
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
- Precious Material And Weight [PMWT]
- 0.004 Gold Grains, Troy
- Precious Material [PRMT]
- Gold
- Projection Length Above Mounting Surface [AKXD]
- 0.062 Inches Nominal
- Overall Height [ABKW]
- 0.430 Inches Nominal
- Terminal Length [ABJT]
- 0.060 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 4 Pin
Weapon Systems (WSDC) 5935-00-187-1938
DLA Procurement Analysis 5935-00-187-1938
Management Data 5935-00-187-1938
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5935-00-187-1938
Freight Information 5935-00-187-1938
5935-00-187-1938 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-187-1938 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-187-1938 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-187-1938 is not classified as a special type of cargo when transported by water. 5935-00-187-1938 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-187-1938
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5935-00-187-1938 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
