5935-00-173-6282
Plug-In Electronic Components Socket
5935001736282 001736282 885731
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
January 2023
18
Marketplace 5935-00-173-6282
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-173-6282 2+ Documents (More...)
Plug-In Electronic Components Socket,885731 (Identification) 1/3 NSN 5935-00-173-6282 (Identification
) 2/3 NSN 5935-00-173-6282 (Identification Plug-In Electronic Components Socket,885731 (Identification
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 885731
Plug-In Electronic Components Socket,885731 Electronic Components Socket,885731 (Identification
Restrictions 5935-00-173-6282
5935-00-173-6282 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5935-00-173-6282
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-173-6282
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Jul 2005
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5935-00-173-6282
- Part Number
- Manufacturer
- Status
- 885731
- Manufacturer
- 06141 - L3 Aviation Products, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-00-173-6282
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 14
- Body Material [AAFZ]
- Plastic And Mica
- Body Mounting Hole Accommodation Diameter [ADAL]
- 0.719 Inches Nominal
- Body Style [AAQL]
- Top Mount W/Metal Saddle And Bushings
- Contact Material [AFRG]
- Copper Alloy

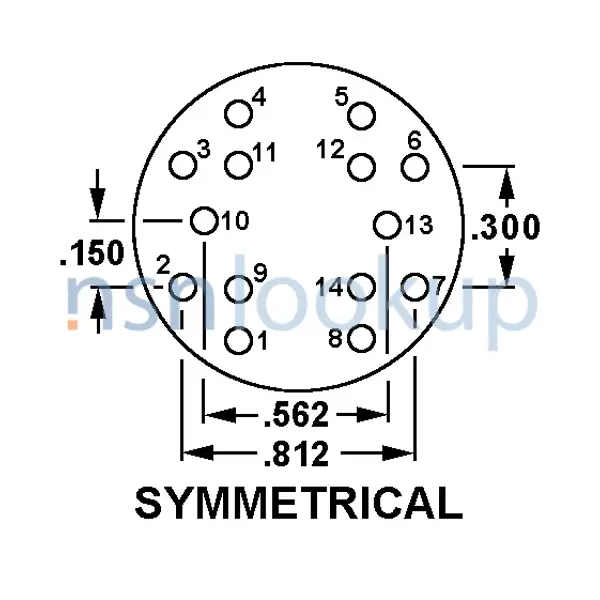

- Contact Position Arrangement Style [CRPY]
- Symmetrical
- Contact Surface Treatment [AFRH]
- Silver
- Distance Between Mounting Facility Centers [AEJN]
- 1.125 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.125 Inches Minimum And 0.130 Inches Maximum
- Mounting Hole Style [AEVB]
- Round, W/Two Mounting Holes
- Mounting Method [AXGY]
- Saddle
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Contact Position And Contact Size
- Precious Material And Location [PMLC]
- Contact Surfaces Silver
- Precious Material And Weight [PMWT]
- 0.014 Silver Grains, Troy
- Precious Material [PRMT]
- Silver
- Overall Height [ABKW]
- 0.688 Inches Nominal
- Overall Length [ABHP]
- 1.406 Inches Maximum
- Overall Width [ABMK]
- 0.938 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 14 Tab, Solder Lug
Similar Supply Items to 5935-00-173-6282
Freight Information 5935-00-173-6282
5935-00-173-6282 has freight characteristics.. 5935-00-173-6282 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
