5935-00-168-9176
Plug-In Electronic Components Socket
5935001689176 001689176 RLAC11S1C
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
3
Marketplace 5935-00-168-9176
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-168-9176 2+ Documents (More...)
RLAC11S1C SOCKET,PLUG-IN ELECTRONIC COMPONENTS 32 EA NS Request Quotation Updated Every Day 5935-00-168
Documents 5935-00-168-9176 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935
participating marketplace vendors Request Restrictions 5935-21-861-0524 Cancelled - Replaced by NSN 5935-00-168-9176
5935-21-861-0524 is a Plug-In Electronic https/ https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-168-9176
Restrictions 5935-00-168-9176
5935-00-168-9176 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-168-9176
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-168-9176
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
Approved Sources 5935-00-168-9176
- Part Number
- Manufacturer
- Status
- RLAC11S1C
- Manufacturer
- 81312 - Winchester Interconnect Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-00-168-9176
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

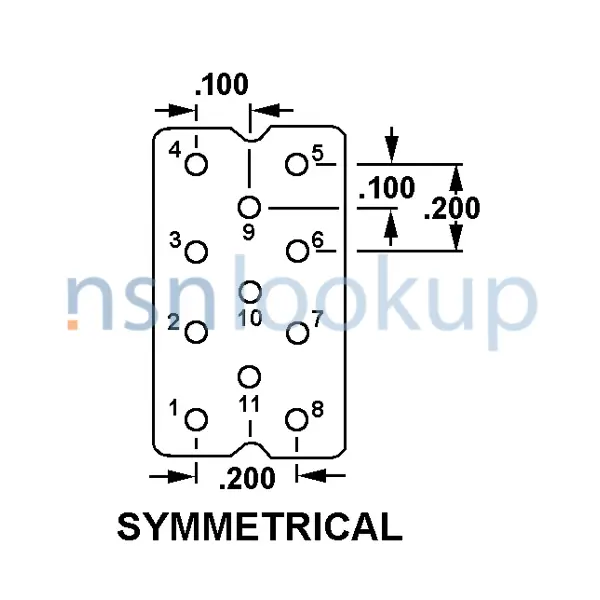

- Contact Position Arrangement Style [CRPY]
- Symmetrical
- Accommodated Contact Quantity [AFRL]
- 11
- Contact Maximum Current Rating In Amps [AFRC]
- 5.0
- Contact Material [AFRG]
- Bronze
- Contact Surface Treatment [AFRH]
- Any Acceptable
- Body Style [AAQL]
- Top Mount W/Studs
- Overall Length [ABHP]
- 1.344 Inches Nominal
- Overall Height [ABKW]
- 0.953 Inches Nominal
- Overall Width [ABMK]
- 0.406 Inches Nominal
- Projection Length Below Mounting Surface [AKXC]
- 0.478 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 11 Crimp
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Threaded Stud
- Mounting Hole Style [AEVB]
- Rectangular, W/Two Mounting Holes/Slots
- Mounting Hole Diameter [ABTB]
- 0.125 Inches Nominal
- Body Mounting Hole Accommodation Length [ADAJ]
- 0.781 Inches Nominal
- Body Mounting Hole Accommodation Width [ADAK]
- 0.406 Inches Nominal
- Distance Between Mounting Facility Centers [AEJN]
- 1.000 Inches Nominal
- Thread Series Designator [THSD]
- Unc
- Nominal Thread Size [CQJX]
- 0.086 Inches
- Thread Class [AAJD]
- 2A
- Thread Quantity Per Inch [CMLP]
- 56
- Thread Direction [AAJF]
- Right-Hand
- Polarization Type [AKWN]
- Contact Position
DLA Procurement Analysis 5935-00-168-9176
Management Data 5935-00-168-9176
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5935-00-168-9176
Freight Information 5935-00-168-9176
5935-00-168-9176 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-168-9176 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-168-9176 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-168-9176 is not classified as a special type of cargo when transported by water. 5935-00-168-9176 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
