5935-00-149-4096

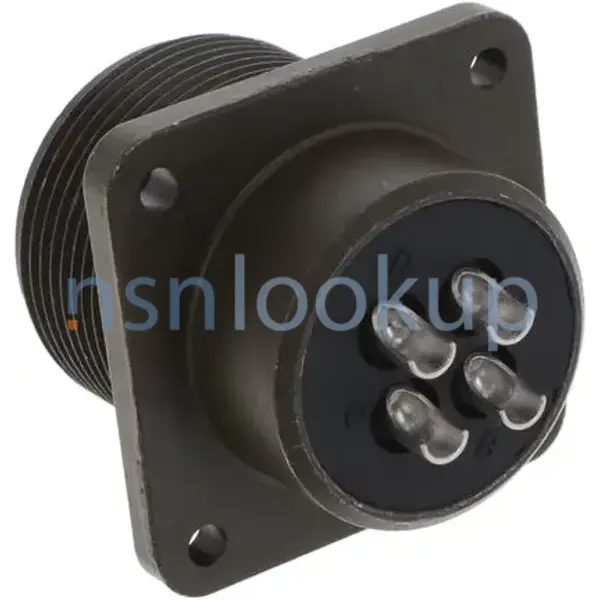

Electrical Receptacle Connector
5935001494096 001494096 MILC5015 MS3102A18-10S AN3102A18-10S 10427600
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector
August 2025
30
Marketplace 5935-00-149-4096
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5935-00-149-4096 5+ Documents (More...)
42 EA NS Request Quotation Updated Every Day 5935-00-149-4096 RQST NE Updated Every Day 5935-00-149-
4096 RQST Updated Every Day 5935-00-149-4096 RQST NE Related Documents 5935-00-149-4096 5+ Documents
www.nsnlookup.com /fsg-53/fsc-5320/it 5320-15-104-0745 Solid Rivet 5320151040745 151040745,10427600 10427600
Day 5320-15-104-0745 RQST NE Related Documents https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-149-4096
MS3102A18-10S CONNECTOR,RECEPTACLE,ELECTRICAL 2 EA NS Request Quotation Related Documents 5935-01-471
CONNECTOR,RECEPTACLE Electrical Receptacle Connector 014717718 MS3102A18-10S CONNECTOR,RECEPTACLE
Restrictions 5935-00-149-4096
5935-00-149-4096 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-149-4096
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-149-4096
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5935-00-149-4096
- Part Number
- Manufacturer
- Status
- MS3102A18-10S
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MILC5015
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- AN3102A18-10S
- 88044 - Aeronautical Standards Group (Active)
- Secondary Buy
- Secondary Buy
- 10427600
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5935-00-149-4096
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Distance From Mounting Shoulder To Front Face [AFQK]
- 0.750 Inches Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Height [AEBW]
- 1.062 Inches Nominal
- Connector Locking Method [AFRV]
- Externally Threaded Coupling Nut
- Connector Cable Strain Relief Method [AFRW]
- Cable Clamp
- Contact Maximum Ac Voltage Rating In Volts [AFRD]
- 500.0 Single Mating End Single Contact Grouping
- Contact Maximum Current Rating In Amps [AFRC]
- 41.0 Single Mating End Single Contact Grouping
- Contact Removability [AFQZ]
- Nonremovable Single Mating End Single Contact Grouping
- Contact Maximum Dc Voltage Rating In Volts [AFRE]
- 700.0 Single Mating End Single Contact Grouping
- Contact Position Arrangement Style [AFQX]
- 18-10 Single Mating End
- Contact Surface Treatment [CQYH]
- Gold Single Mating End Single Contact Grouping And Silver Single Mating End Single Contact Grouping
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]
- 1.062 Inches Nominal
- Body Style [AAQL]
- Straight Shape, External Coupling
- Mating End Quantity [AFQW]
- 1
- Nominal Thread Length [AKMG]
- 0.625 Inches
- Nominal Thread Size [CQJX]
- 1.125 Inches
- Included Contact Quantity [CXCG]
- 4 Single Mating End Single Contact Grouping
- Included Contact Type [CXCL]
- Round Socket Single Mating End Single Contact Grouping
- Insert Position In Deg [AFRP]
- 0.0
- Polarization Method [AFRN]
- Keyway Or Multiple Keyway
- Precious Material And Location [PMLC]
- Contact Surfaces Gold And Contact Surfaces Silver
- Precious Material And Weight [PMWT]
- 0.004 Gold Grains, Troy And 0.004 Silver Grains, Troy
- Precious Material [PRMT]
- Gold
- Shell Surface Treatment Document And Classification [CTBC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response
- Shell Material [CSPT]
- Aluminum Alloy
- Shell Surface Treatment [CSWM]
- Cadmium
- Shell Type [AFRT]
- Solid
- Overall Height [ABKW]
- 1.375 Inches Nominal
- Overall Length [ABHP]
- 1.938 Inches Maximum
- Overall Width [ABMK]
- 1.375 Inches Nominal
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.120 Inches Nominal
- Specification/Standard Data [ZZZK]
- 81349-Mil-C-5015 Government Specification
- Terminal Location [CQTM]
- Back Single Mating End Single Contact Grouping
- Terminal Type [CSCF]
- Solder Well Single Mating End Single Contact Grouping
- Test Data Document [TEST]
- 81349-Mil-C-5015 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Series Designator [THSD]
- Unef
- Threaded Device Type [AFQR]
- Coupling Facility
Similar Supply Items to 5935-00-149-4096
Freight Information 5935-00-149-4096
5935-00-149-4096 has freight characteristics.. 5935-00-149-4096 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
Packaging Data 5935-00-149-4096
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- --
- --
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
