5935-00-112-4637
Plug-In Electronic Components Socket
5935001124637 001124637 204-51-11-001 11PB
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
5
Marketplace 5935-00-112-4637
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-112-4637 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-112-4637 (Identification) 2/3 NSN 5935-00-112-4637 (Identification
Updated Every Day 5935-00-112-4637 RQST NE Updated Every Day 5935-00-112-4637 RQST Updated Every Day
SOCKET,PLUG-IN ELECTRONIC COMPON RQST NS Request Quotation 204-51-11-001 SOCKET,PLUG-IN ELECTRONIC COMPON
RQST NS Request Quotation Subscribe to View Vendor Details... 11PB SOCKET,PLUG-IN ELECTRONIC COMPON
from participating marketplace vendors Request Subscribe to View Vendor Details... 180-044NF07-19-11PB
Plug-In Electronic Components Socket Details... 11PB SOCKET,PLUG-IN ELECTRONIC COMPON https//www.nsnlookup.com
CECC75201001-A1811MCB1A1H DEFSTAN59-56PT1-6020-18-11PB C752001AF11MCB1A1H BSCECC75201001-A1811MCB1A1H
6020-18-11PB An electrical fitting with electrical contacts constructed to be affixed to the end of
CECC75201001-E1811MCB1A1H DEFSTAN59-56PT1-6026-18-11PB BSCECC75201001-E1811MCB1A1H C752001EF11MCB1A1H
6026-18-11PB An electrical fitting with electrical contacts, constructed to be affixed to the end of
Restrictions 5935-00-112-4637
5935-00-112-4637 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-112-4637
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-112-4637
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5935-00-112-4637
- Part Number
- Manufacturer
- Status
- 204-51-11-001
- Manufacturer
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Original Design
- Original Design
- 11PB
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-112-4637
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

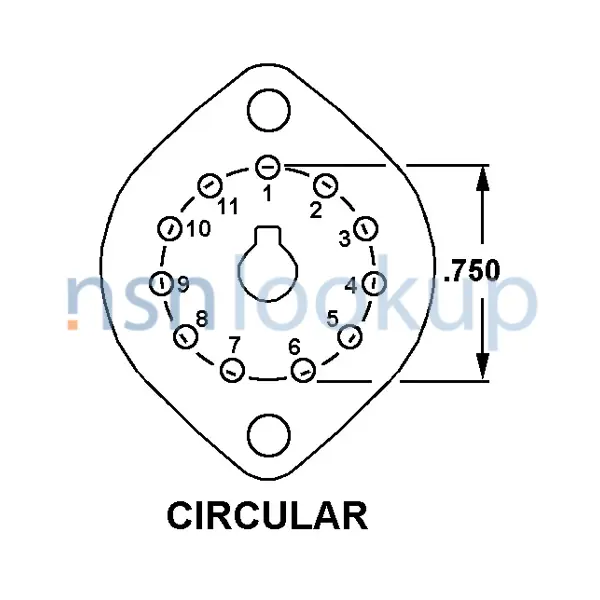

- Contact Position Arrangement Style [CRPY]
- Circular
- Accommodated Contact Quantity [AFRL]
- 11
- Contact Material [AFRG]
- Brass
- Contact Surface Treatment [AFRH]
- Nickel
- Body Style [AAQL]
- Top Mount W/Retainer Ring Groove
- Overall Height [ABKW]
- 0.969 Inches Nominal
- Overall Diameter [ADAV]
- 1.250 Inches Nominal
- Projection Length Below Mounting Surface [AKXC]
- 0.828 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 11 Pin
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Retainer Ring
- Mounting Hole Style [AEVB]
- Round, Body
- Body Mounting Hole Accommodation Diameter [ADAL]
- 1.158 Inches Nominal
- Polarization Type [AKWN]
- Center Key Hole
DLA Procurement Analysis 5935-00-112-4637
Management Data 5935-00-112-4637
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5935-00-112-4637
Freight Information 5935-00-112-4637
5935-00-112-4637 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-112-4637 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-112-4637 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5935-00-112-4637 is not classified as a special type of cargo when transported by water. 5935-00-112-4637 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-112-4637
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5935-00-112-4637 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
